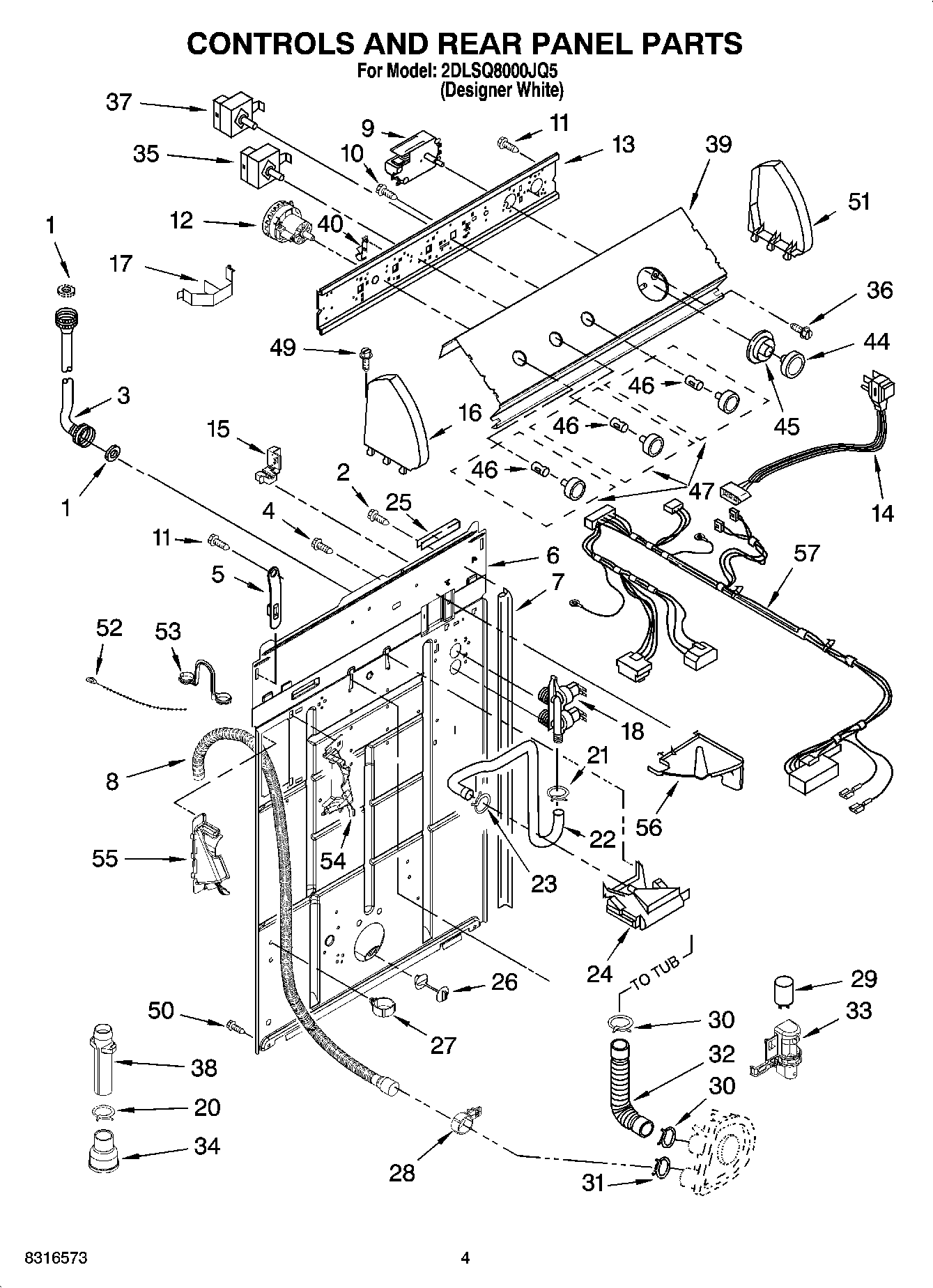

2DLSQ8000JQ5 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3351614 Whirlpool Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3954726 Whirlpool Timer Assembly
10	Screw (6)
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Clip, Harness & Pressure Hose
18	285805 Whirlpool Washer Water Inlet Valve
20	WP285655 Whirlpool Hose Clamp
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	CAPACITOR
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Capacitor
34	WP8577375 Whirlpool Hose Coupler
35	3949185 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
38	3363920A Whirlpool Adapter Assembly
39	Panel, Console
40	Retainer, Harness
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
46	WP8536939 Whirlpool Spring Clip
47	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	WPW10339879 Whirlpool Wire Tie
53	WP8577378 Whirlpool Retainer
55	WPW10096921 Whirlpool Hose
56	WPL 8539874
57	WPL 3956703
