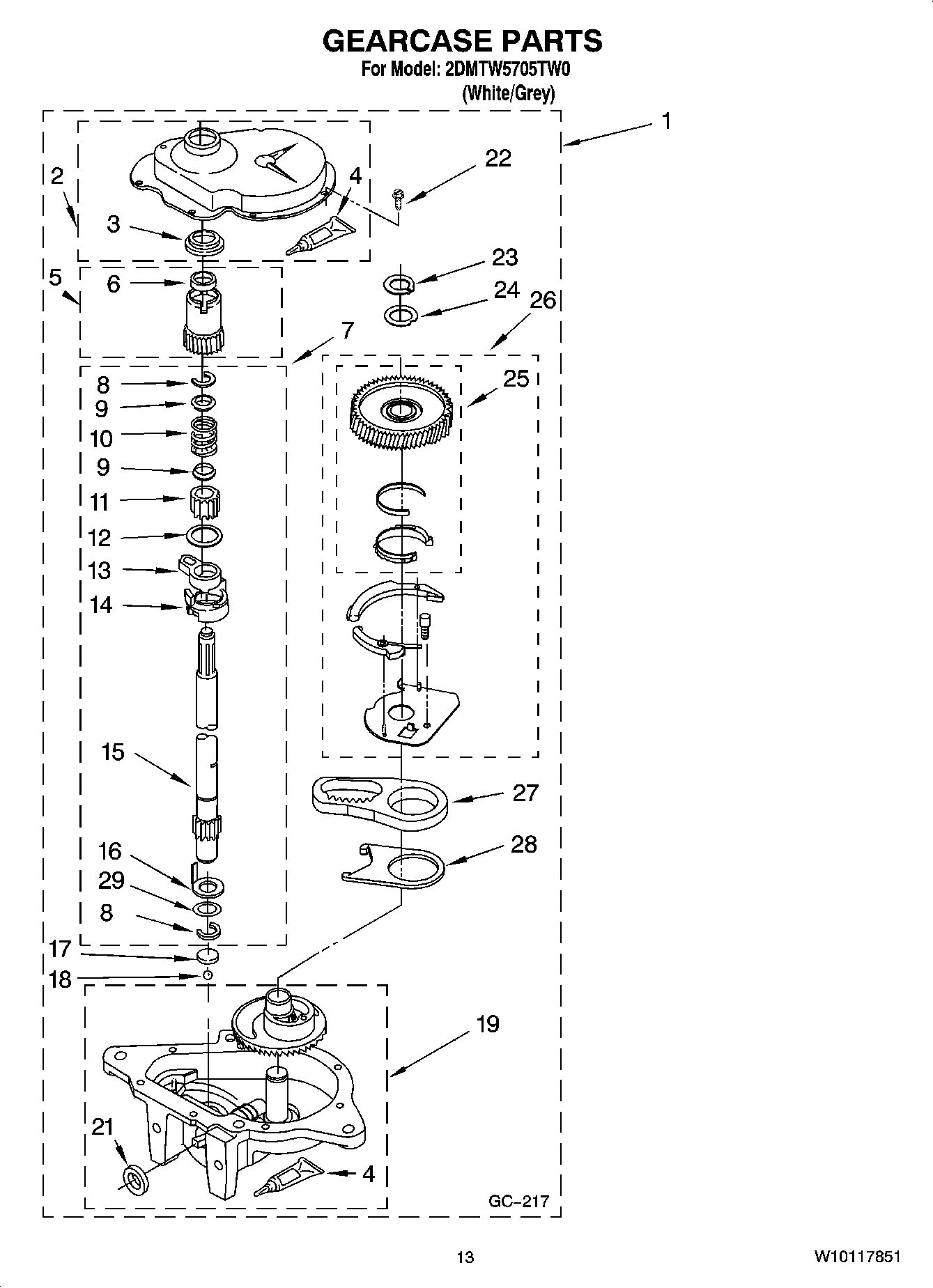

2DMTW5705TW0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

2DMTW5705TW0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

2DMTW5705TW0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY 285208
NIWATER SYSTEM PARTS, DRAIN PROTECTOR
NICNTRL-ELEC
NIMAY 280129
NISEALER, GASKET (.20 FL. OZ.) (6ML)
NIMAY 280130
NIMAY 280131
NIMAY 350572
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
1MAY 3363361
2MAY 285202
3MAY 3349985
5Pinion, Spin (Includes Illus. 25)
6Seal, Spin Pinion
7MAY 389387
8MAY 90369
9Retainer, Spring (2)
10MAY 62676
11Gear, Agitate (Includes 15 & 29)
12MAY 62619
13MAY 62580
14MAY 62581
15Shaft, Agitator (Includes 11 & 29)
16MAY 62618
17Bearing, Thrust (Includes 18)
18Ball, Bearing (Includes 17)
19MAY 3366851
21MAY 285352
22SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
23MAY 3362552
24MAY 285735
25MAY 3348567
26MAY 285595
27MAY 3349296
28MAY 62621
29MAY 388815
