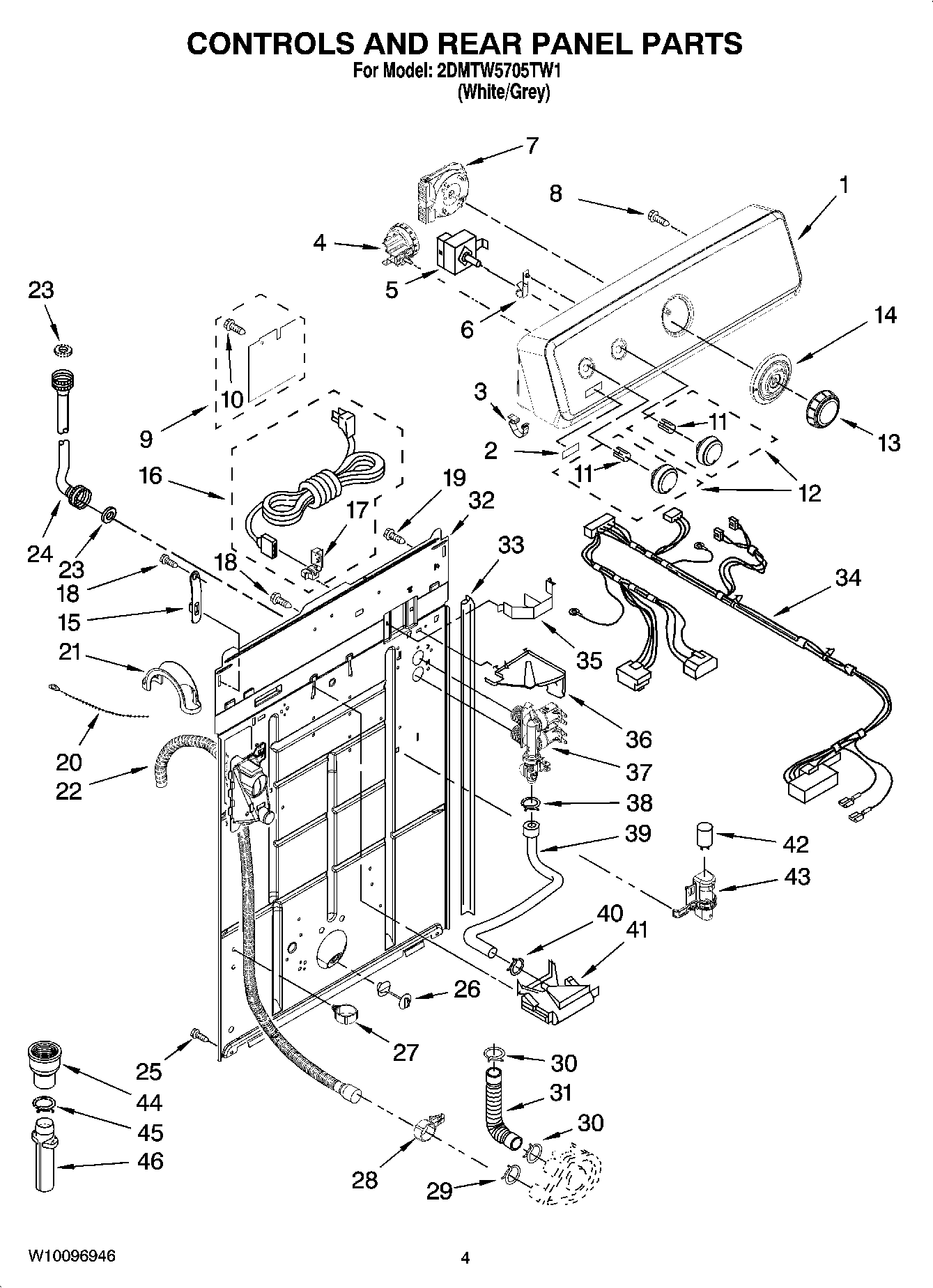

2DMTW5705TW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10096815
2	Badge
3	MAY 8312709
4	MAY 8577844
5	MAY 8578338
6	MAY 8317975
7	MAY W10113771
8	SCREW
9	MAY W10093726
10	RETAINER, PUSH-IN
11	CLIP, SPRING
12	Knob, Control (3)
13	Knob, Timer (Washer)
14	Dial, (Washer)
15	Strap, Console
16	Cord, Power
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	MAY W10096921
23	ACCESSORY PARTS, WASHER, HOSE
24	Hose, Water Inlet (Hot Water)
24	Hose, Water Inlet (Cold Water)
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10113810
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	MAY 8578343
38	MAY 301958
39	MAY 8317974
40	MAY 370450
41	Thermister, Inlet
42	MAY W10244889
43	MAY 8318046
44	MAY 8577375
45	Clamp, Hose
46	MAY 3363920
