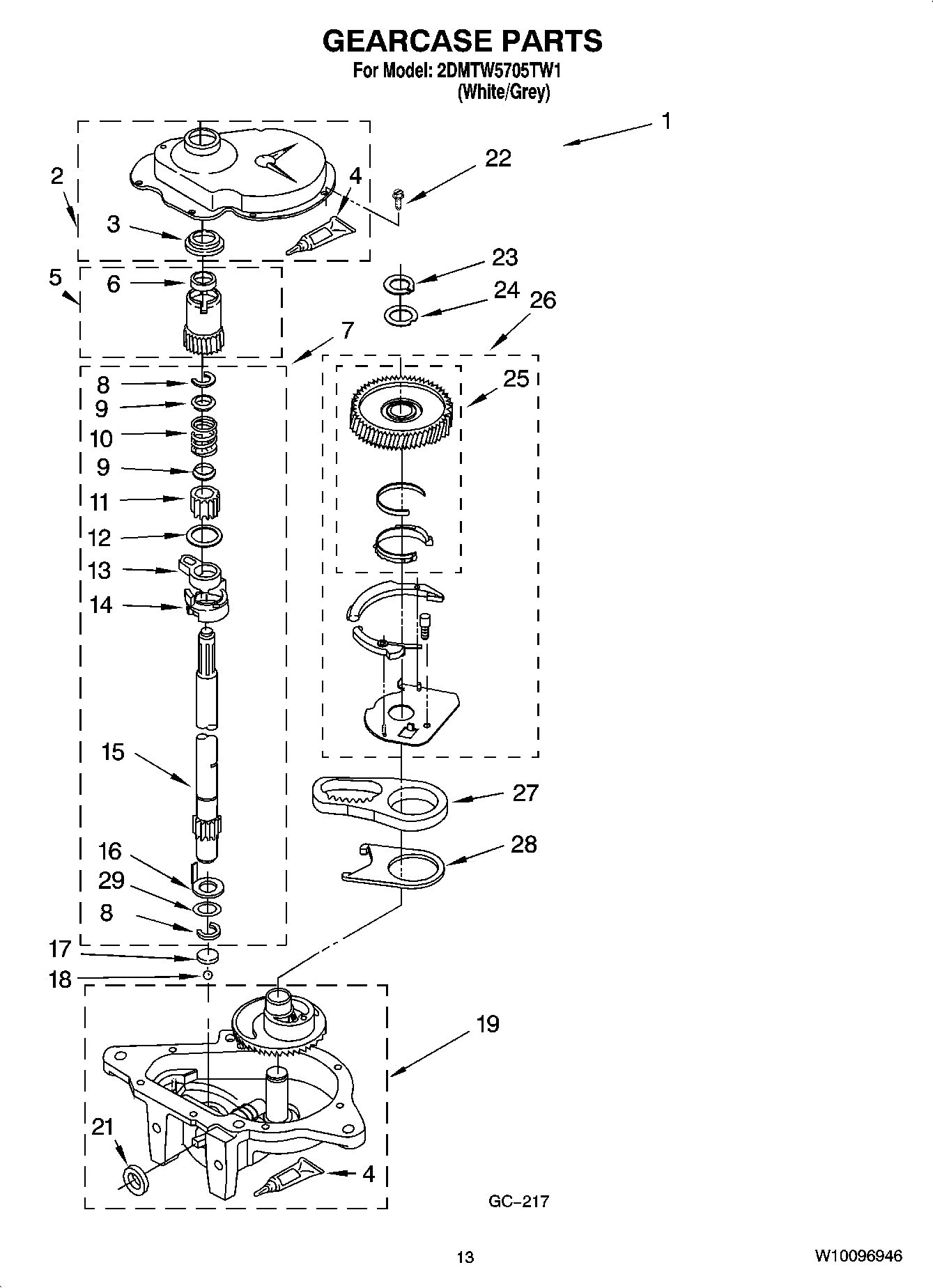

2DMTW5705TW1 08 – GEARCASE PARTSadmin2025-04-26T09:08:03+00:002DMTW5705TW1 08 – GEARCASE PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3363361 |
| 2 | MAY 285202 |
| 3 | MAY 3349985 |
| 4 | SEALER, GASKET (.20 FL. OZ.) (6ML) |
| 5 | Pinion, Spin (Includes Illus. 25) |
| 6 | Seal, Spin Pinion |
| 7 | MAY 389387 |
| 8 | MAY 90369 |
| 9 | Retainer, Spring (2) |
| 10 | MAY 62676 |
| 11 | Gear, Agitate (Includes 15 & 29) |
| 12 | MAY 62619 |
| 13 | MAY 62580 |
| 14 | MAY 62581 |
| 15 | Shaft, Agitator (Includes 11 & 29) |
| 16 | MAY 62618 |
| 17 | Bearing, Thrust (Includes 18) |
| 18 | Ball, Bearing (Includes 17) |
| 19 | MAY 3366851 |
| 21 | MAY 285352 |
| 22 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 23 | MAY 3362552 |
| 24 | MAY 285735 |
| 25 | MAY 3348567 |
| 26 | MAY 285595 |
| 27 | MAY 3349296 |
| 28 | MAY 62621 |
| 29 | MAY 388815 |
