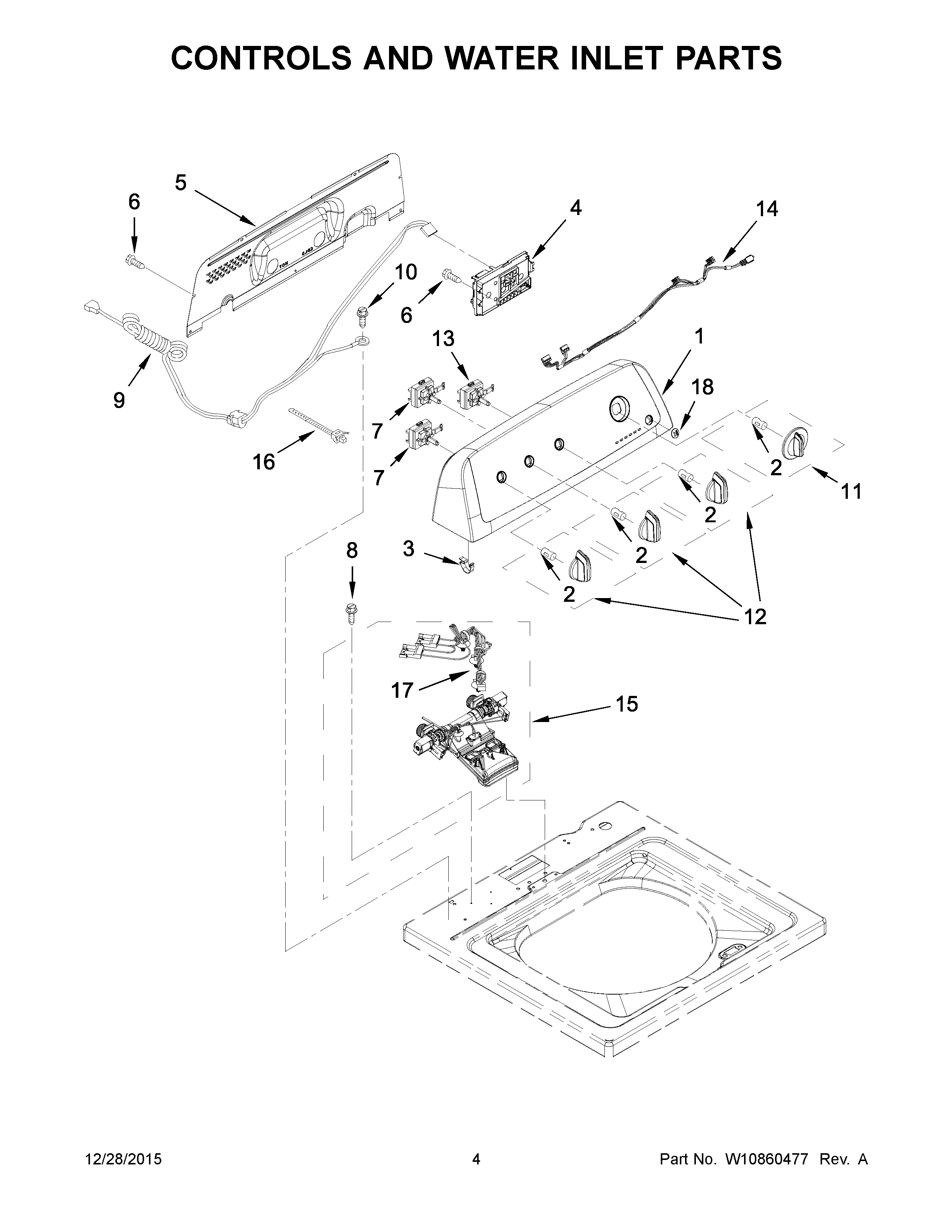

2DWTW4705EW0 03 – CONTROLS AND WATER INLET PARTS

2DWTW4705EW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

2DWTW4705EW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10475423 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
NI10A CORD LOCK
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
5W10409320 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9CORD, UNIVERSAL POWER
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W11168256 Whirlpool Cycle Switch
14W10694671 Whirlpool Wire Harness
15W11210461 Whirlpool Valve
16WPW10339879 Whirlpool Wire Tie
17W10678671 Whirlpool Wire Harness
18PUSH BUTTON, START
