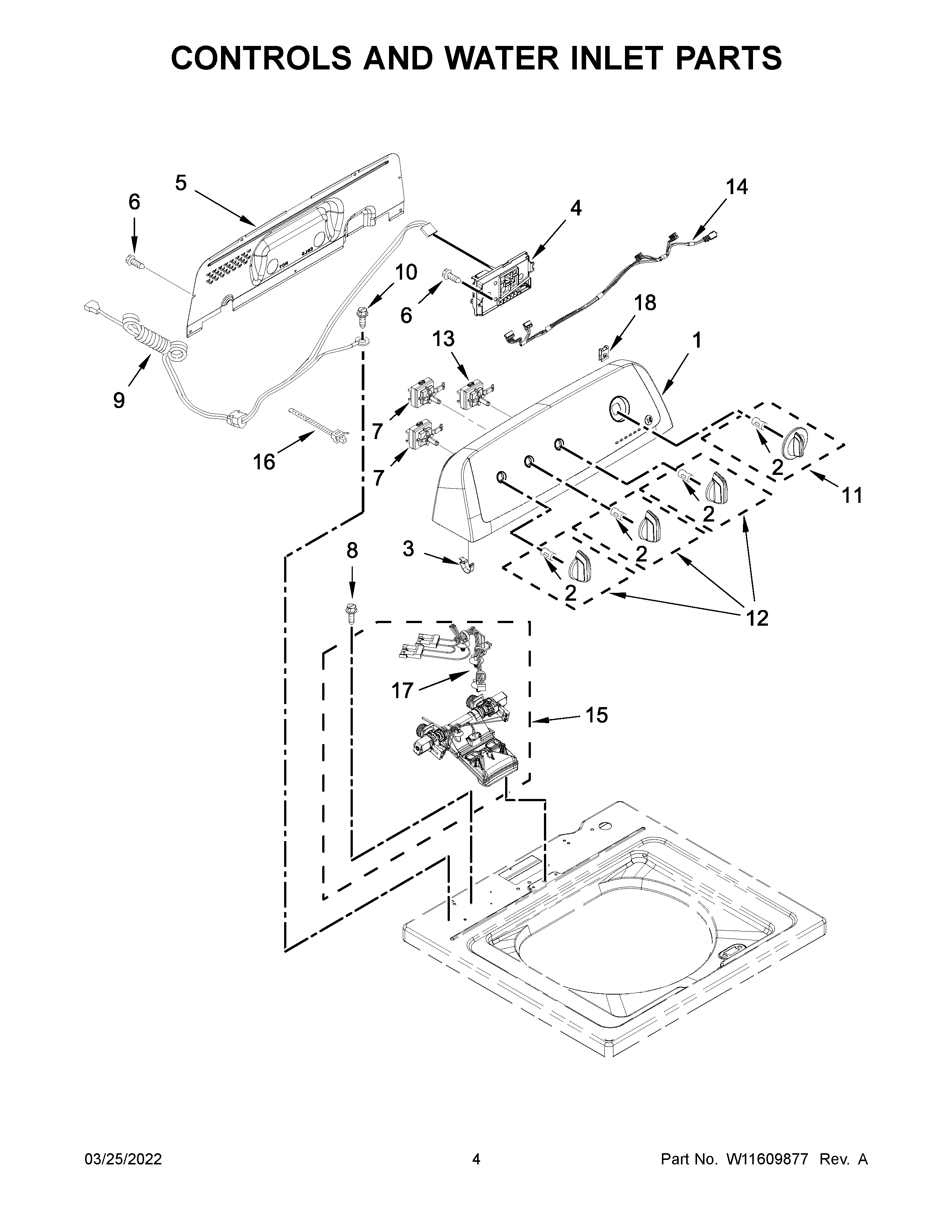

2DWTW4705EW2 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
NI	WPW10475423 Whirlpool Adapter
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8312709 Whirlpool Endcap Clip
4	W11607627 Whirlpool Electronic Control Board + Core
5	W10409320 Whirlpool Rear Panel
6	W11685943 Whirlpool Screw
7	WPW10414398 Whirlpool Cycle Switch
8	WPW10213953 Whirlpool Screw
9	CORD, UNIVERSAL POWER
10	W10846509 Whirlpool Screw
11	WPW10711289 Whirlpool Washer Control Knob Dryer
12	WPW10453947 Whirlpool Knob
13	W11168256 Whirlpool Cycle Switch
14	W10694671 Whirlpool Wire Harness
15	W11614511 Whirlpool Valve
16	WPW10339879 Whirlpool Wire Tie
17	W10701401 Whirlpool Wire Harness
18	W11213336 Whirlpool Nut
