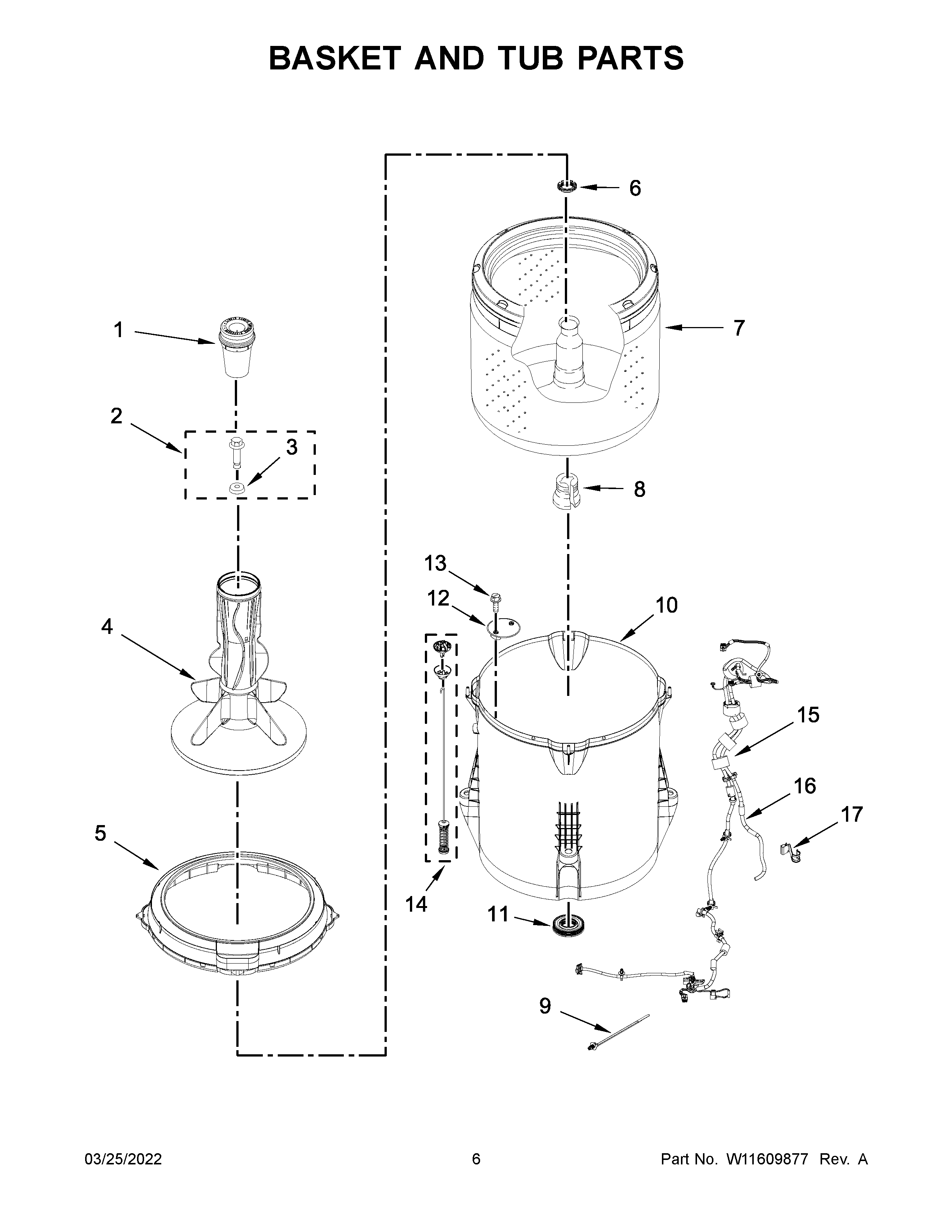

2DWTW4705EW2 04 – BASKET AND TUB PARTS

2DWTW4705EW2 04 – BASKET AND TUB PARTS

Written by

in

2DWTW4705EW2 04 – BASKET AND TUB PARTS

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4WP63235 Whirlpool Agitator Assembly
5WPW10531289 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7W10554251 Whirlpool Basket
8WP389140 Whirlpool Drive Block or Bell
9WPW10298887 Whirlpool Wire Tie Assembly
10W10371566 Whirlpool Outer Tub
11W10324647 Whirlpool Seal Tub
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14W10780045 Whirlpool Suspension Rod
15HARNESS, LOWER
16W10846364 Whirlpool Hose
17CLIP
