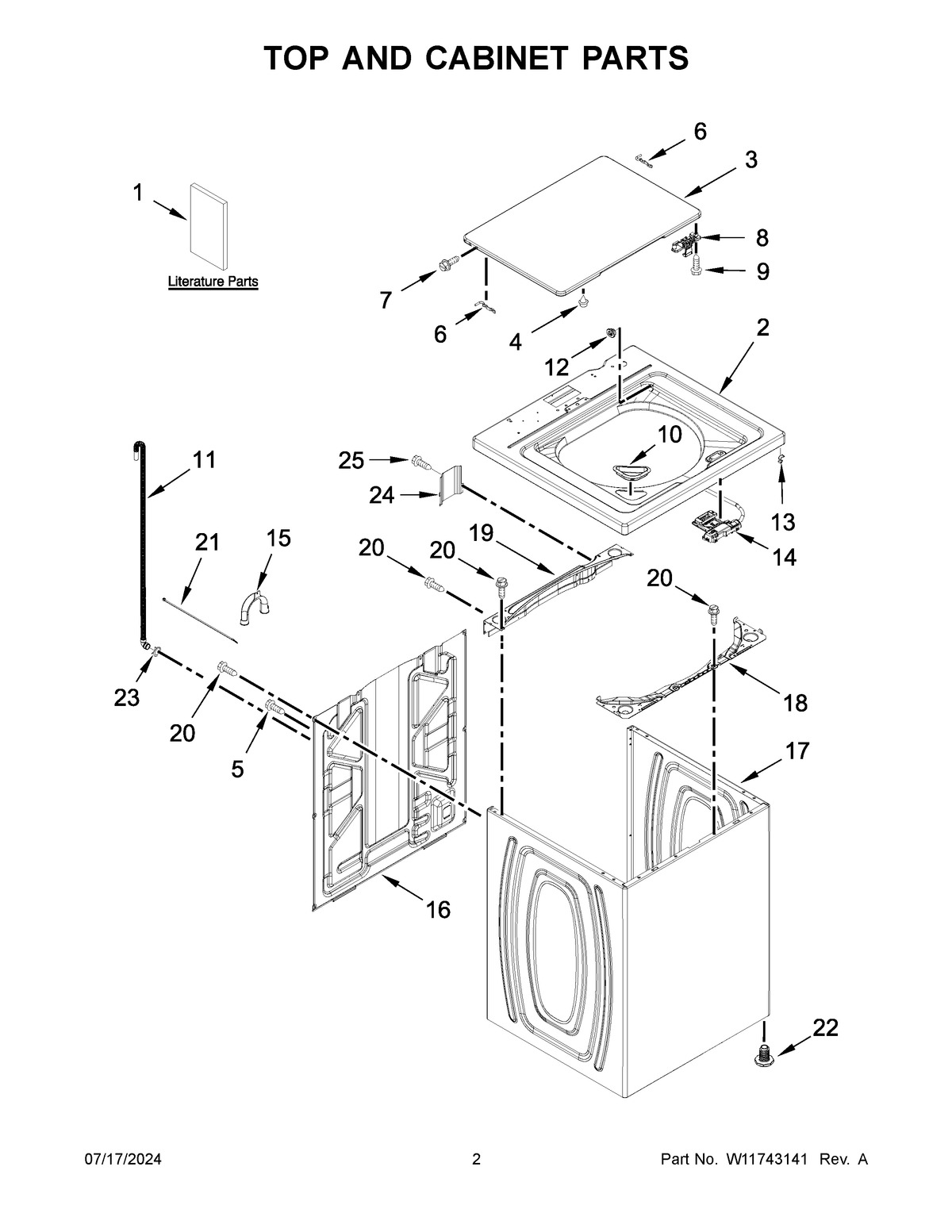

2DWTW4705EW3 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	QUICK START GUIDE
1A	TECH SHEET
1	USE AND CARE GUIDE
2	W11026446 Whirlpool Top Assembly
3	WPW10338625 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	W10837741 Whirlpool Washer Lid Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	W11244231 Whirlpool Hose
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH-WASHER LID
15	WPW10280024 Whirlpool Retainer
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11661767 Whirlpool Brace
19	W11712680 Whirlpool Commercial Part Brace
20	W11685943 Whirlpool Screw
21	WPW10339879 Whirlpool Wire Tie
22	WPW10687506 Whirlpool Washer Leveling Leg
23	WP356138 Whirlpool Hose Clamp
24	W10676061 Whirlpool Cover Assembly
25	W10846509 Whirlpool Screw
