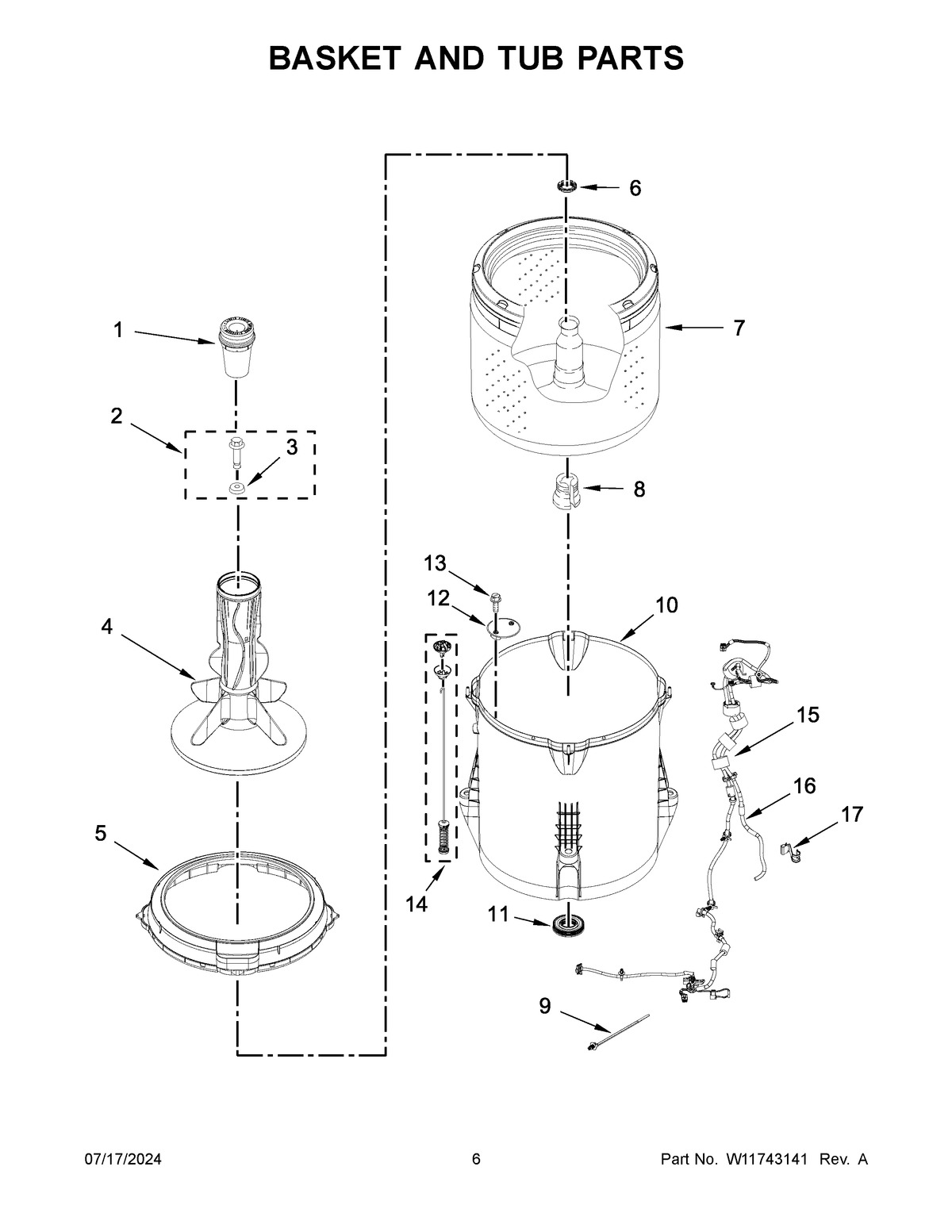

2DWTW4705EW3 04 – BASKET AND TUB PARTS

Products

Position	Product
1	63580 Whirlpool Washer Fabric Softener Dispenser
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	WP63235 Whirlpool Agitator Assembly
5	WPW10531289 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	W10554251 Whirlpool Basket
8	WP389140 Whirlpool Drive Block or Bell
9	W10339680 Whirlpool Wire Tie
10	W10371566 Whirlpool Outer Tub
11	W10324647 Whirlpool Seal Tub
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
14	W10780045 Whirlpool Suspension Rod
15	HARNESS, LOWER
16	W10846364 Whirlpool Hose
17	CLIP
