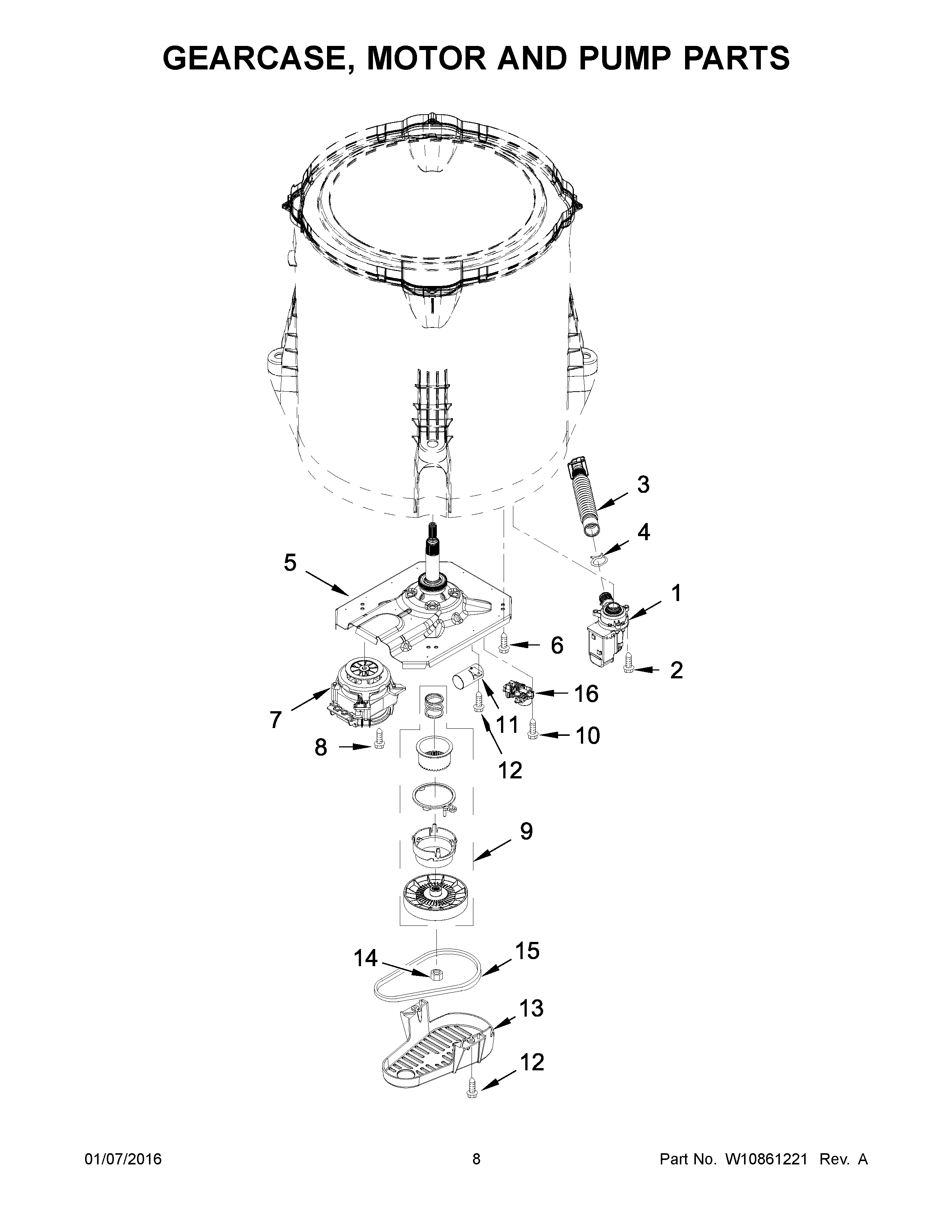

2DWTW4800YQ1 05 – GEARCASE, MOTOR AND PUMP PARTS

2DWTW4800YQ1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

2DWTW4800YQ1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10297342 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10416658 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9SPRING, SPLUTCH
10W11596033 Whirlpool Microwave Screw
11W11227944 Whirlpool Capacitor
12W11573574 Whirlpool Screw
13WPW10427633 Whirlpool Belt Shield
14W10759923 Whirlpool Washer Pulley Nut
15WPW10006388 Whirlpool Belt
16ACTUATOR
