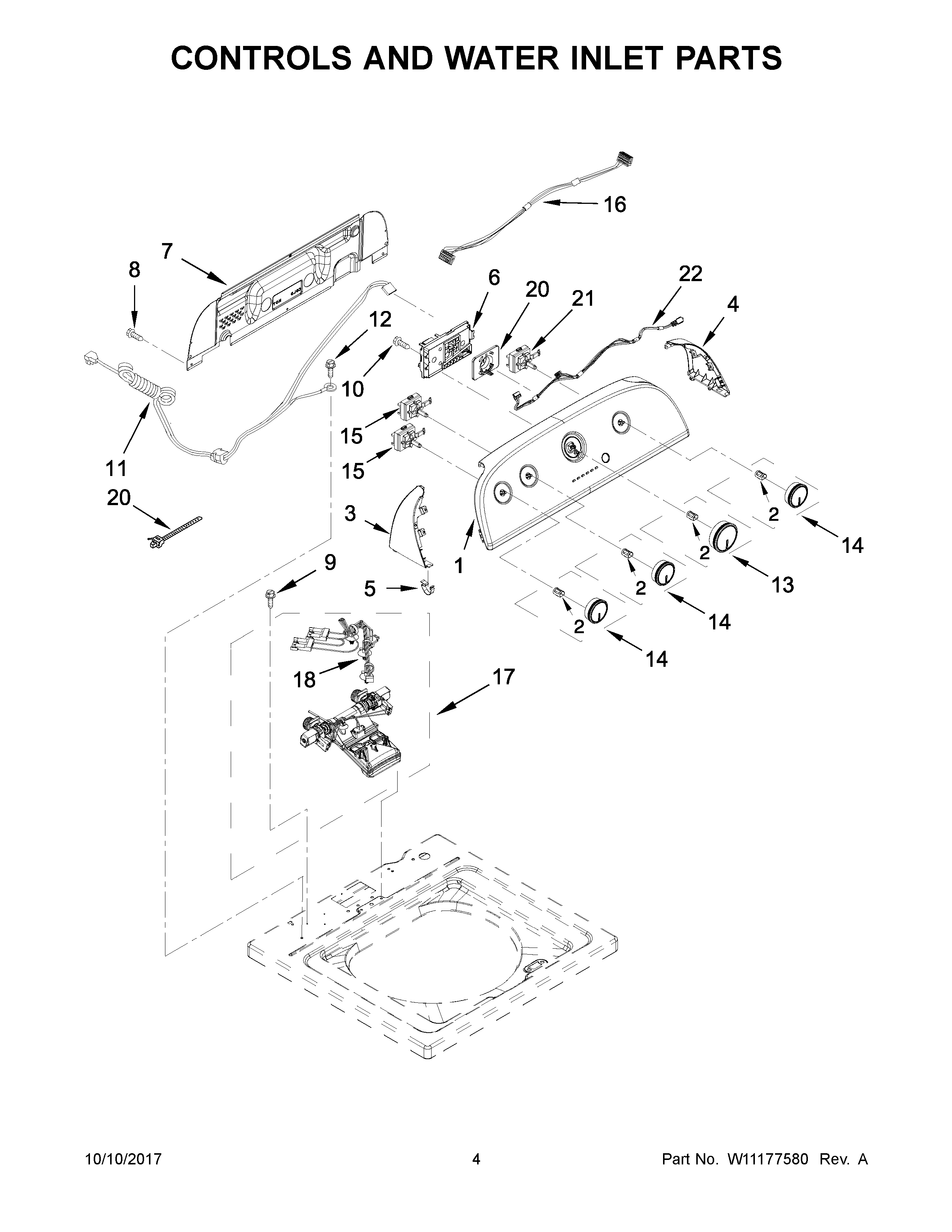

2DWTW4815GW0 03 – CONTROLS AND WATER INLET PARTS

2DWTW4815GW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

2DWTW4815GW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11192395-includeCORE Whirlpool W11192395 Washer Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W10694682 Whirlpool Wire Harness
17W11210461 Whirlpool Valve
18W10868094 Whirlpool Wire Harness
19W11084340 Whirlpool Push Button
20W10339680 Whirlpool Wire Tie
21WPW10285511 Whirlpool Cycle Switch
22W10786100 Whirlpool Wire Harness
