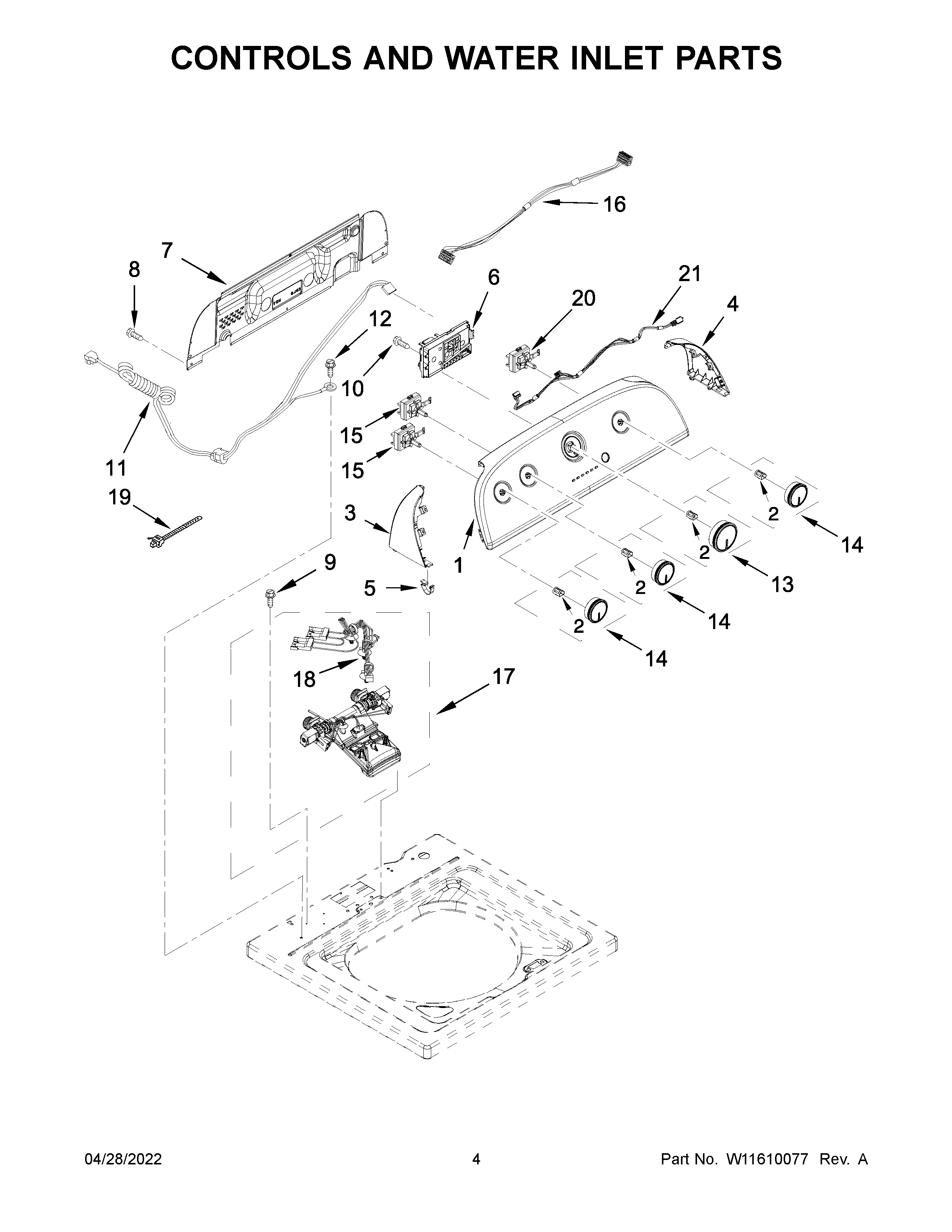

2DWTW4815GW1 03 – CONTROLS AND WATER INLET PARTS

2DWTW4815GW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

2DWTW4815GW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP688805 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11607626 Whirlpool Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W10694682 Whirlpool Wire Harness
17W11614511 Whirlpool Valve
18W10701401 Whirlpool Wire Harness
19W10339680 Whirlpool Wire Tie
20WPW10285511 Whirlpool Cycle Switch
21W10786100 Whirlpool Wire Harness
