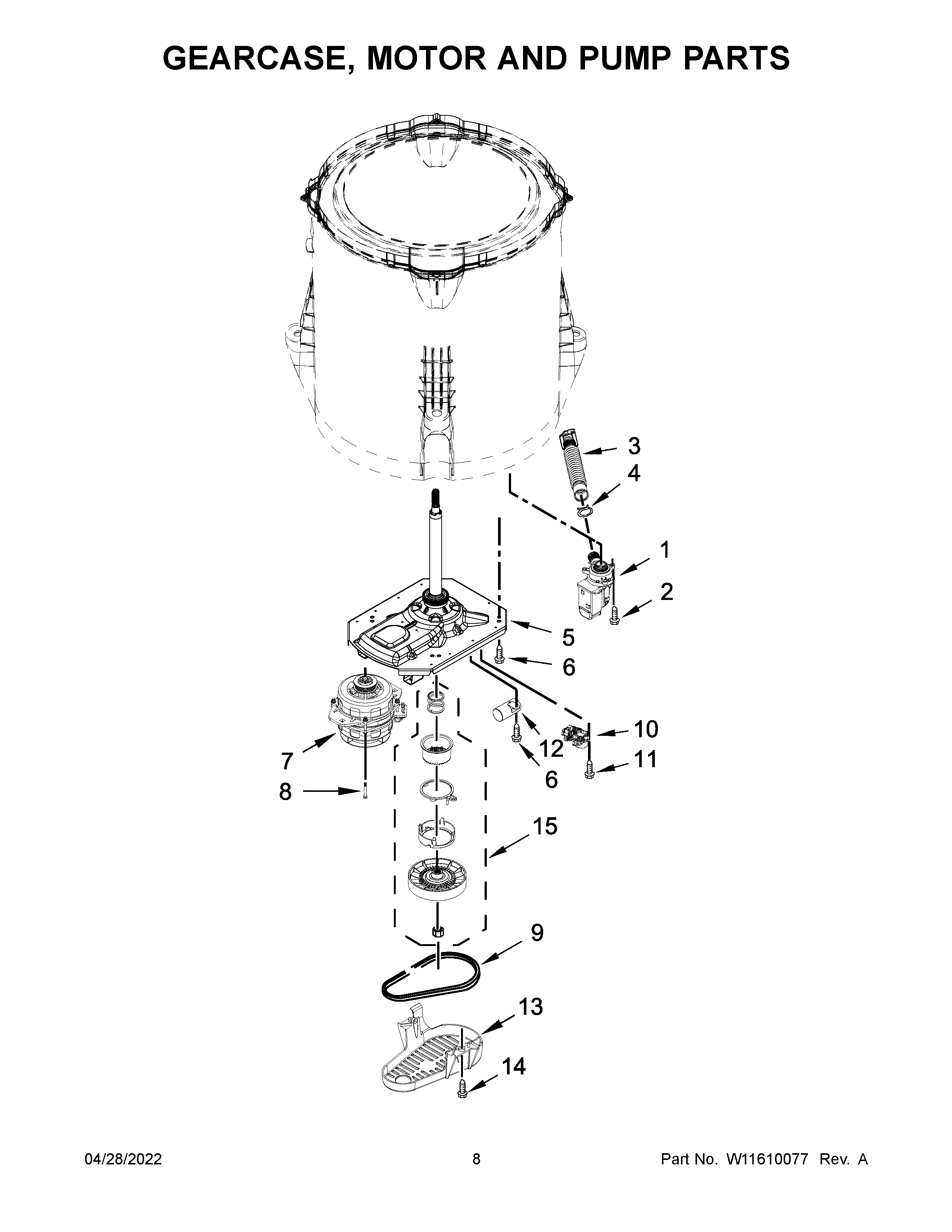

2DWTW4815GW1 05 – GEARCASE, MOTOR AND PUMP PARTS

2DWTW4815GW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

2DWTW4815GW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	WPW10297342 Whirlpool Water Pump
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	W10416658 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	WPW10006388 Whirlpool Belt
10	ACTUATOR
11	W11596033 Whirlpool Microwave Screw
12	W11227944 Whirlpool Capacitor
13	WPW10427633 Whirlpool Belt Shield
14	W11573574 Whirlpool Screw
15	W10759993 Whirlpool Cam
