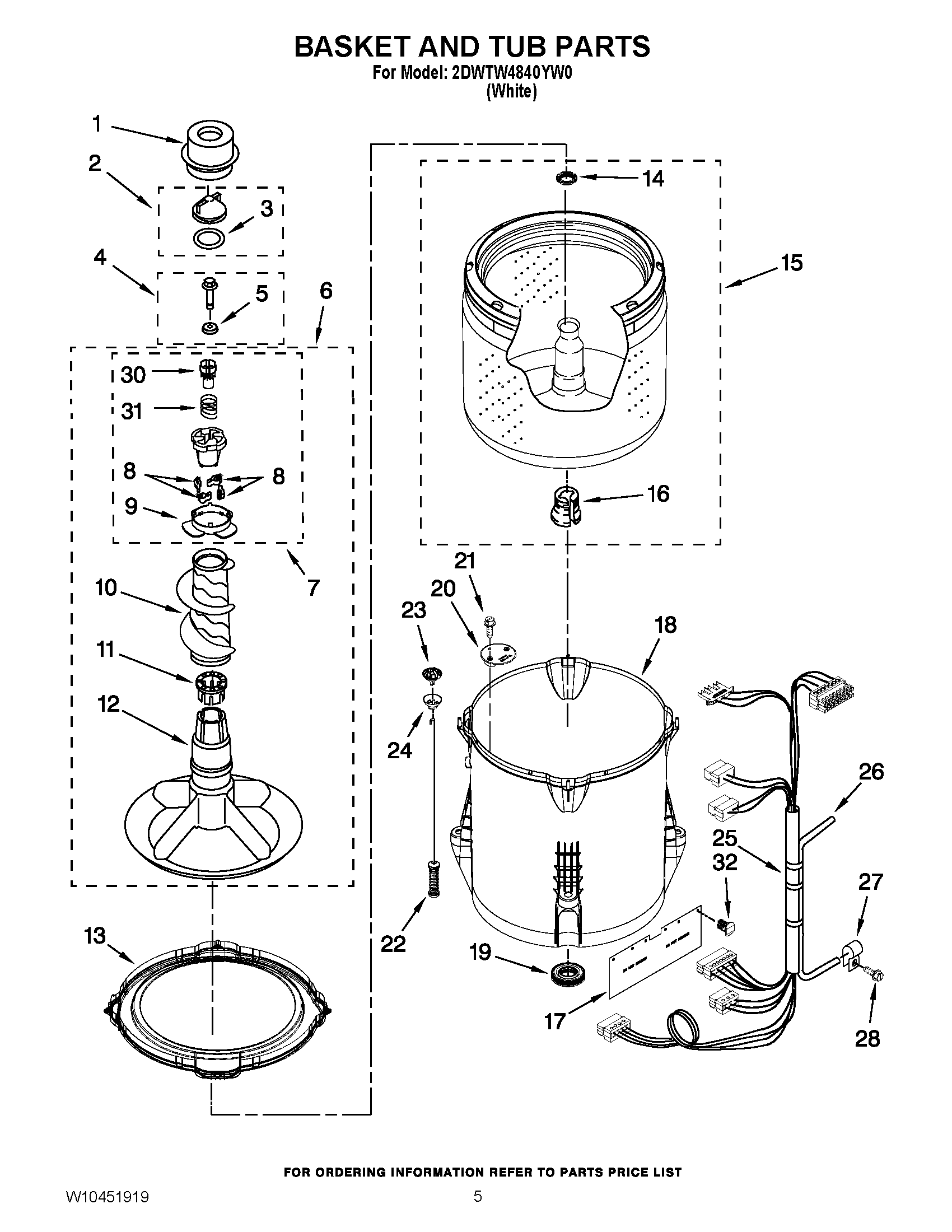

2DWTW4840YW0 03 – BASKET AND TUB PARTS

2DWTW4840YW0 03 – BASKET AND TUB PARTS

Written by

in

2DWTW4840YW0 03 – BASKET AND TUB PARTS

Products

PositionProduct
1WP8580006 Whirlpool Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6WP8578210 Whirlpool Agitator
7WP8537434 Whirlpool Agitator Cam
880040 Whirlpool Washer Agitator Dog Kit
9WP8055141 Whirlpool Bearing Assembly
10WP8054468 Whirlpool Agitator Auger
11WP8055228 Whirlpool Washer
12WP8578209 Whirlpool Agitator
13WPW10215108 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10349185 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10339098 Whirlpool Shield
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780048 Whirlpool Washer Suspension Rod Assembly
23BALL, SUSPENSION (SET OF 4 – INCLUDES ITEM 24)
24W10440729 Whirlpool Suspension
25W10422646 Whirlpool Wire Harness
26WP353244 Whirlpool Hose
27W10005430 Whirlpool Clamp
28WPW10109200 Whirlpool Screw
30WP8533540 Whirlpool Retainer Clip
31WP8055140 Whirlpool Spring
32W10429200 Whirlpool Retainer
