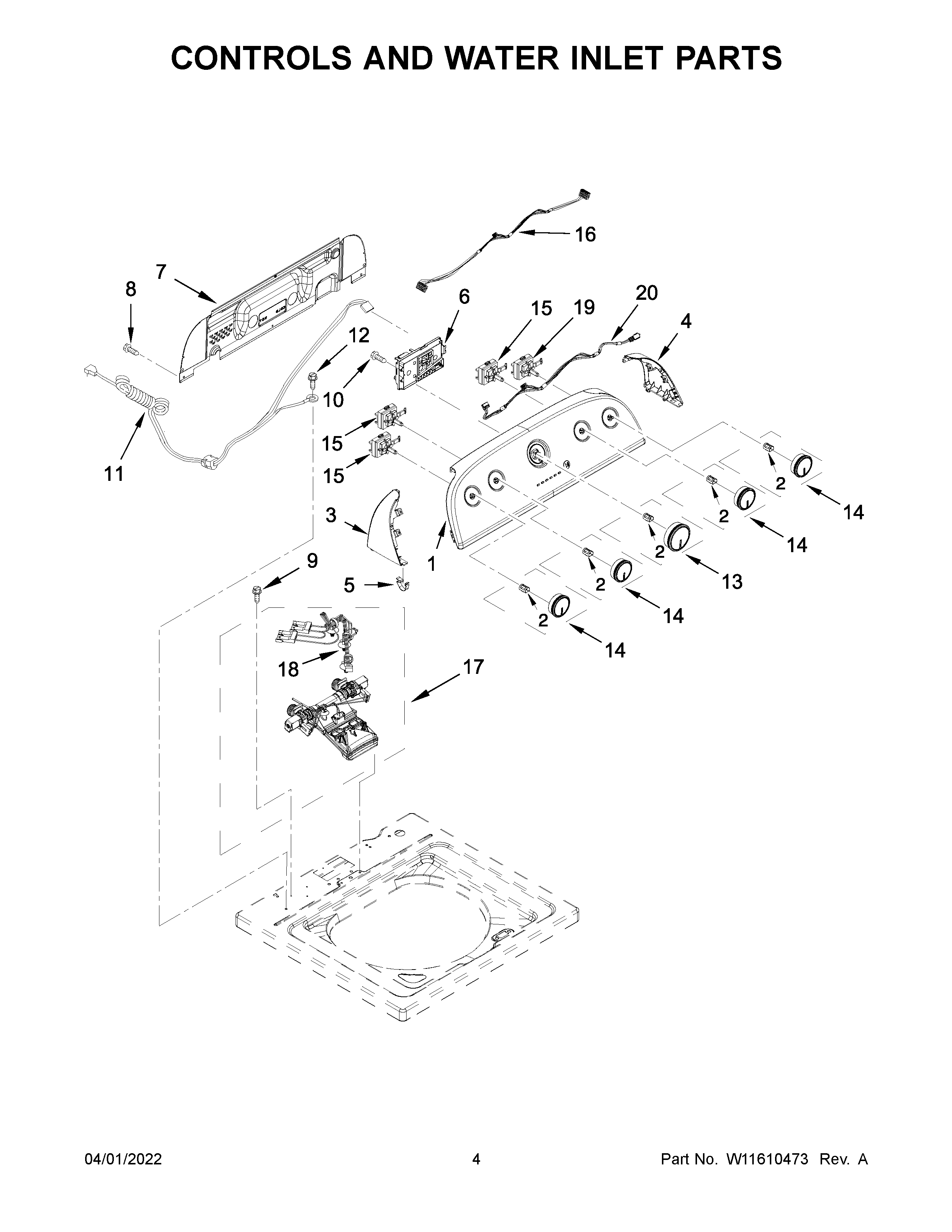

2DWTW4845EW2 03 – CONTROLS AND WATER INLET PARTS
Written by
in
2DWTW4845EW2 03 – CONTROLS AND WATER INLET PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
WPW10475423 Whirlpool Adapter
NI
WPW10476822 Whirlpool Adapter
NI
10A CORD LOCK
1
PANEL-CNTL
2
WP688805 Whirlpool Spring Clip
3
WPW10520782 Whirlpool Panel
4
WPW10520780 Whirlpool Panel
5
WP8312709 Whirlpool Endcap Clip
6
W11607630-includeCORE Whirlpool W11607630 Washer Electronic Control Board + Core
7
W10552335 Whirlpool Rear Panel
8
W11685943 Whirlpool Screw
9
WPW10213953 Whirlpool Screw
10
WP90767 Whirlpool Screw
11
CORD, UNIVERSAL POWER
12
W10846509 Whirlpool Screw
13
W10756270 Whirlpool Dryer Timer Knob
15
WPW10285512 Whirlpool Cycle Switch
16
W11211519 Whirlpool Wire Harness
17
W11614511 Whirlpool Valve
18
W10701401 Whirlpool Wire Harness
19
WPW10285511 Whirlpool Cycle Switch
20
W10786100 Whirlpool Wire Harness
←
