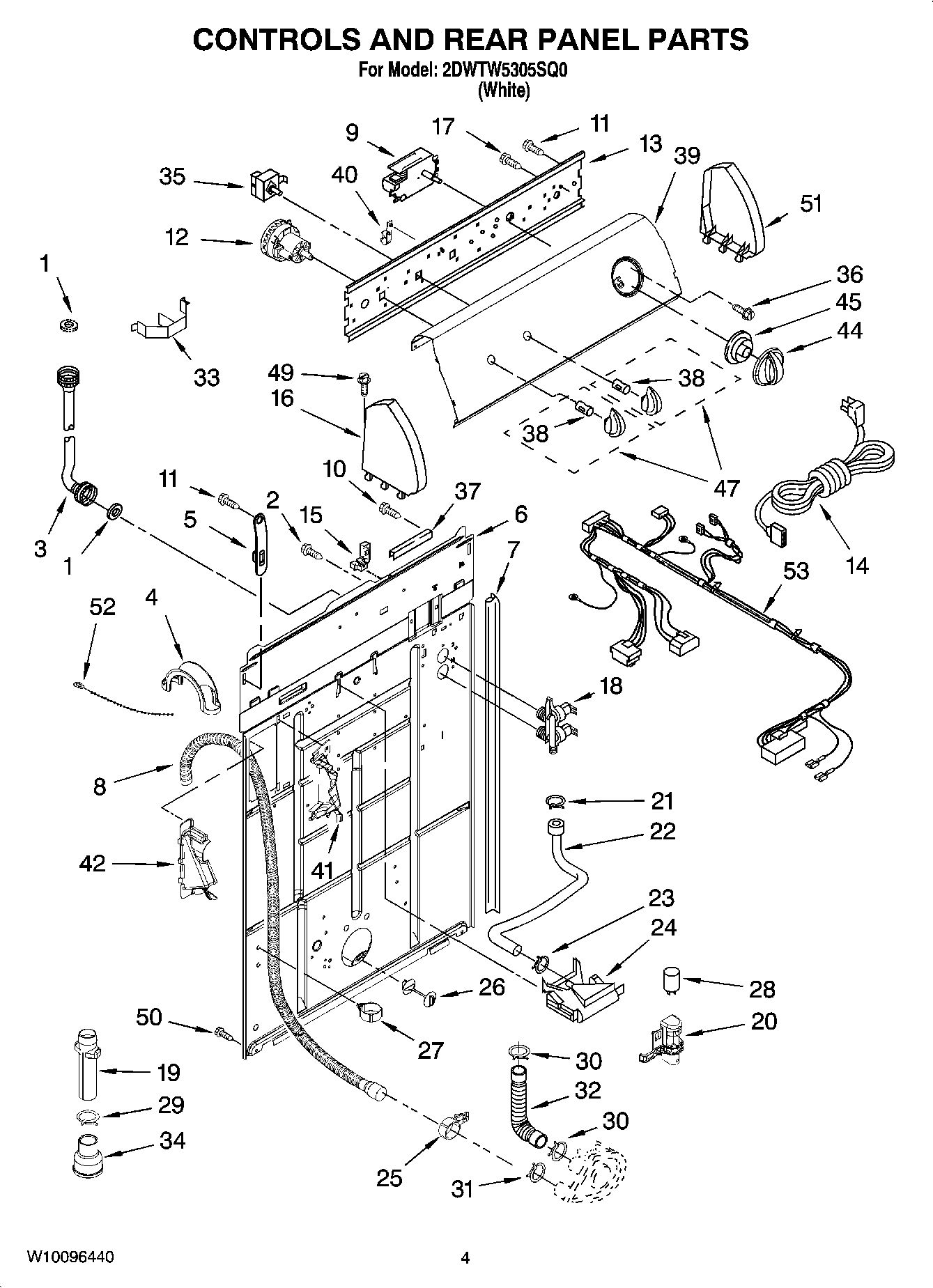

2DWTW5305SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3956203 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
17	3400073 Whirlpool Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	3363920A Whirlpool Adapter Assembly
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	8541668 Whirlpool Washer Clamp
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	WP285655 Whirlpool Hose Clamp
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WP8577375 Whirlpool Hose Coupler
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	Edge Protector
38	WP8536939 Whirlpool Spring Clip
39	Panel, Console
40	Retainer, Harness
42	WPW10096921 Whirlpool Hose
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
47	Knob, Control
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	WPW10339879 Whirlpool Wire Tie
53	WPL 3956701
