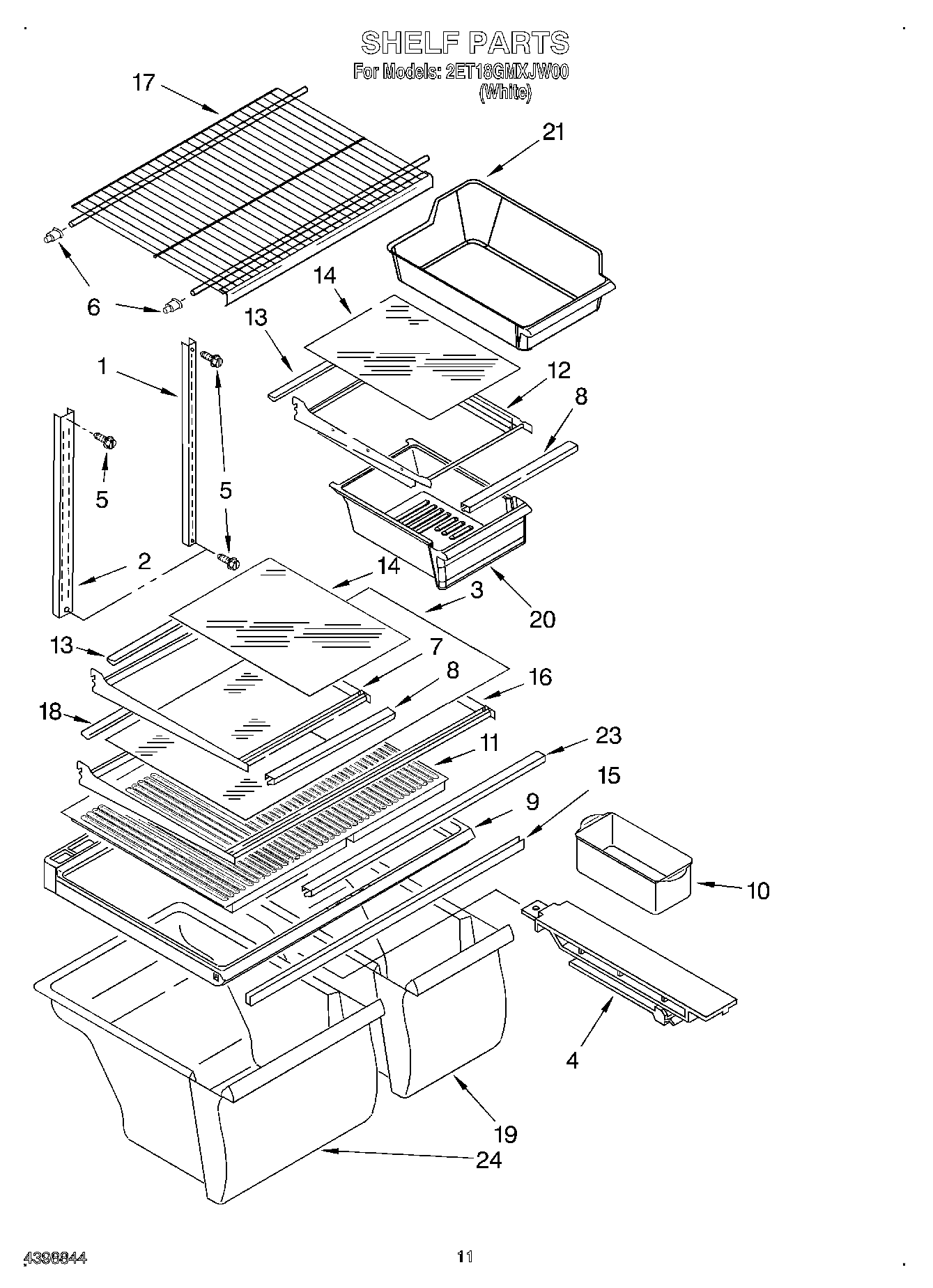

2ET18GMXJW00 06 – SHELF, LIT/OPTIONAL

2ET18GMXJW00 06 – SHELF, LIT/OPTIONAL

Written by

in

2ET18GMXJW00 06 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT677971
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT2198830
Torx Key
Use & Care Guide
1Shelf, Ladder (2)
2Shelf, Ladder
3Glass, Full Shelf
4WP2163835 Whirlpool Track Assembly
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever
8Trim, Shelf
9WP2314548 Whirlpool Refrigerator Cover
10W10136387A Whirlpool Refrigerator Egg Container
11Insert, Crisper Cover
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Meat Cover
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17WP2176275 Whirlpool Refrigerator Wire Shelf
18Trim, Shelf Rear
19W10856580 Whirlpool Crisper Pan
20Pan, Meat
212254352A Whirlpool Refrigerator Ice Container
23Trim, Shelf Front
24Door Reversal Instructions
2472032 Whirlpool Touch Up Paint Black
24350930 Whirlpool White Spray Paint
24285006 Whirlpool Spray
24W10854037 Whirlpool Refrigerator Crisper Pan
24606755 Whirlpool Refrigerator Bag
24511873 Whirlpool Refrigerator Paint
24350942 Whirlpool Spray Paint
24212643 Whirlpool Refrigerator Permagum Sealer
24Almond (Uncut)
24WP72107 Whirlpool Touchup
24799344 Whirlpool Refrigerator Paint
2472017 Whirlpool Appliance Touch-Up Paint White
24833938 Whirlpool Refrigerator Terminal
24876370 Whirlpool Refrigerator Insulation
24WPL 799832
24WPL 876029
24WPL 799833
24CEMENT, ALUMILASTIC (1 1/4 OZ.)
24TAPE, VINYL (3/4 X 108“)
24WP542638 Whirlpool Refrigerator Grease
24WP505587 Whirlpool Refrigerator Sealer
24WP503695 Whirlpool Refrigerator Sealer
24350956 Whirlpool Spray Assembly
