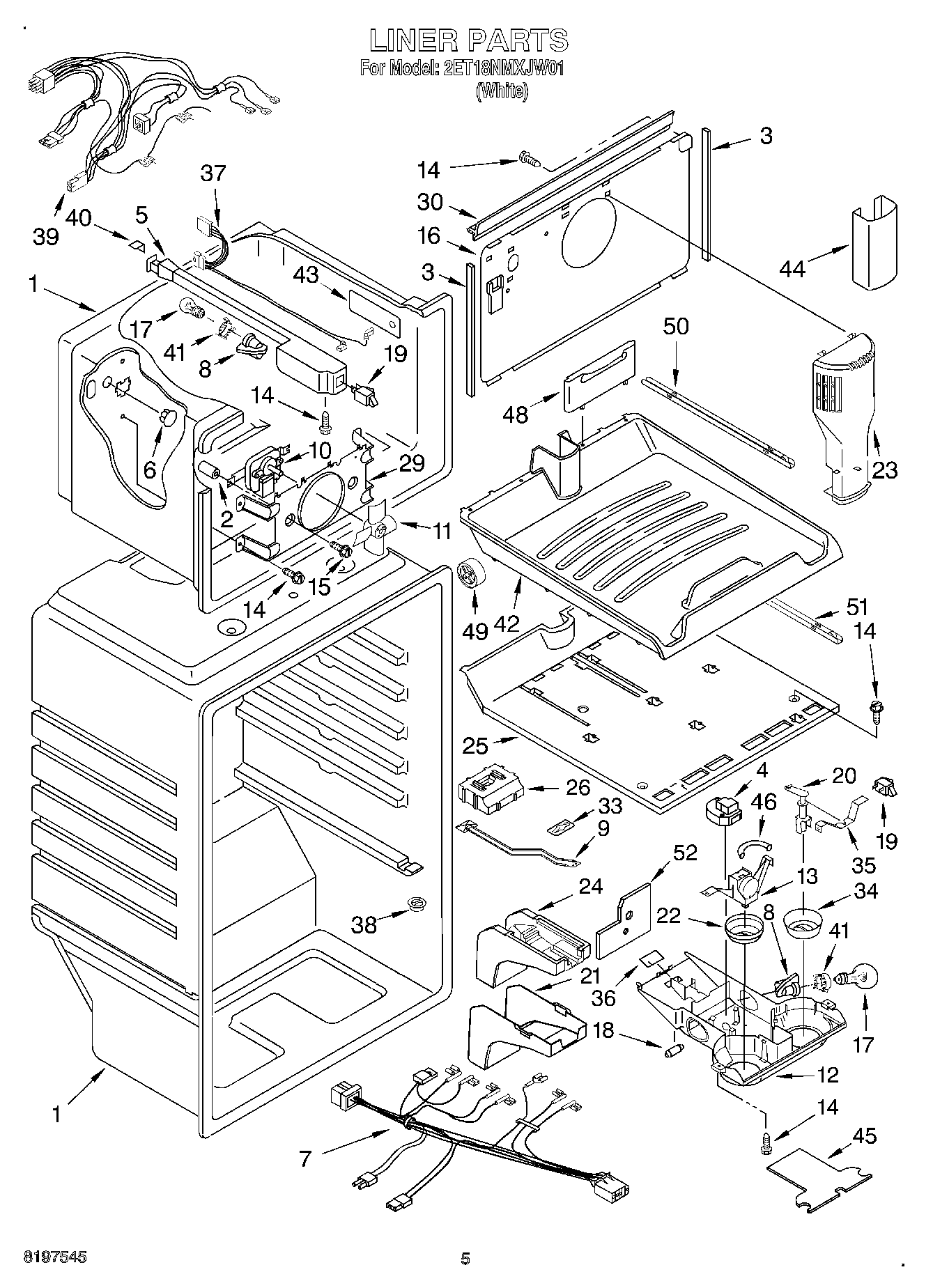

| 1 | Liner (Not A Serviceable Part) |
| 2 | Grommet |
| 4 | WP2321259 Whirlpool Refrigerator Defrost Timer |
| 5 | Housing Base |
| 6 | WP941839 Whirlpool Refrigerator Button Plug |
| 7 | Wire Assy. Control Box |
| 8 | 4387478 Whirlpool Refrigerator Light Socket |
| 9 | Damper, Air |
| 10 | Fan Motor |
| 11 | WP2163777 Whirlpool Refrigerator Fan Blade |
| 12 | Control Box |
| 13 | Thermostat Assy. (Includes Items 5, 18 & 36) |
| 14 | WP489478 Whirlpool Refrigerator Screw |
| 15 | Screw |
| 16 | Cover-Evaporator |
| 17 | WP67002552 Whirlpool Refrigerator Light Bulb |
| 18 | Weight, Thermal |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | Post, Damper |
| 21 | Cover, Air Diffuser |
| 22 | W10829461 Whirlpool Refrigerator Thermal Knob |
| 23 | Air Tower |
| 24 | WP2189452 Whirlpool Refrigerator Diffuser |
| 25 | Freezer Floor |
| 26 | Air Diffuser, Top |
| 29 | Bracket, Fan Motor |
| 30 | WP2254360 Whirlpool Refrigerator Gasket |
| 33 | Clip, Defrost Timer |
| 34 | Knob, Damper |
| 35 | Bracket, Damper Knob |
| 36 | WP2205079 Whirlpool Refrigerator Seal |
| 37 | Wiring Harness, Freezer Light |
| 38 | WP2210509 Whirlpool Refrigerator Tub Valve |
| 39 | Wire Assembly, Freezer Compartment |
| 40 | Gasket, Rear |
| 41 | WP2175210 Whirlpool Refrigerator Shroud |
| 42 | Pullout, Freezer Floor (Includes Item 56) |
| 43 | Electrical Shield, Freezer Light |
| 44 | Sleeve |
| 45 | Shield |
| 46 | Thermostat Tube Barrier |
| 48 | REAR FENCE PULL-OUT FREEZER FLOOR |
| 49 | Roller, Slide |
| 50 | Side Support, Floor Assembly |
| 51 | Center Support, Floor Assembly |
| 52 | Shield, heat |
