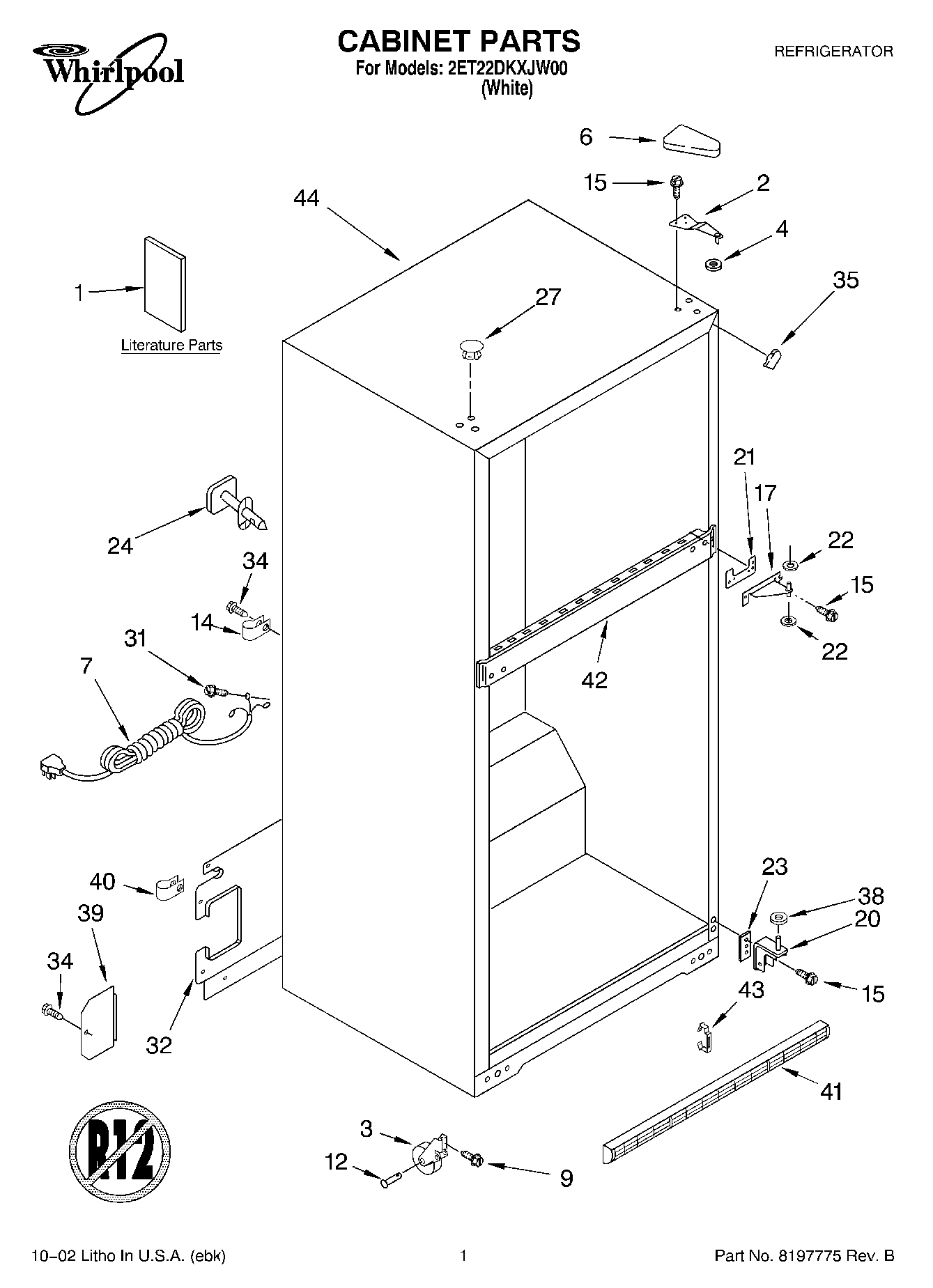

2ET22DKXJW00 01 – CABINET, LITERATURE

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Use & Care Guide)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
6	WP2213360 Whirlpool Refrigerator Cover
7	Service Cord
9	WP3400504 Whirlpool Refrigerator Screw
12	W11594405 Whirlpool Axle
14	489348 Whirlpool Refrigerator Tube Clamp
15	WP489497 Whirlpool Screw
17	WP2254618 Whirlpool Center Door Hinge
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP2183854 Whirlpool Refrigerator Shim
22	WP489467 Whirlpool Hinge Shim
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
26	Wire Assembly
27	WP2151652 Whirlpool Refrigerator Button Plug
31	WP489442 Whirlpool Refrigerator Screw
32	Cover, Unit
34	WP489464 Whirlpool Refrigerator Screw
35	WPW10283959 Whirlpool Refrigerator Filler
38	WP487576 Whirlpool Washer
39	Cover, Water Valve
40	WP488366 Whirlpool Refrigerator Clamp
41	Grille (White)
42	Rail Center (Not Serviced)
43	CLIP, GRILLE
44	Cabinet (Not A Serviceable Part)
