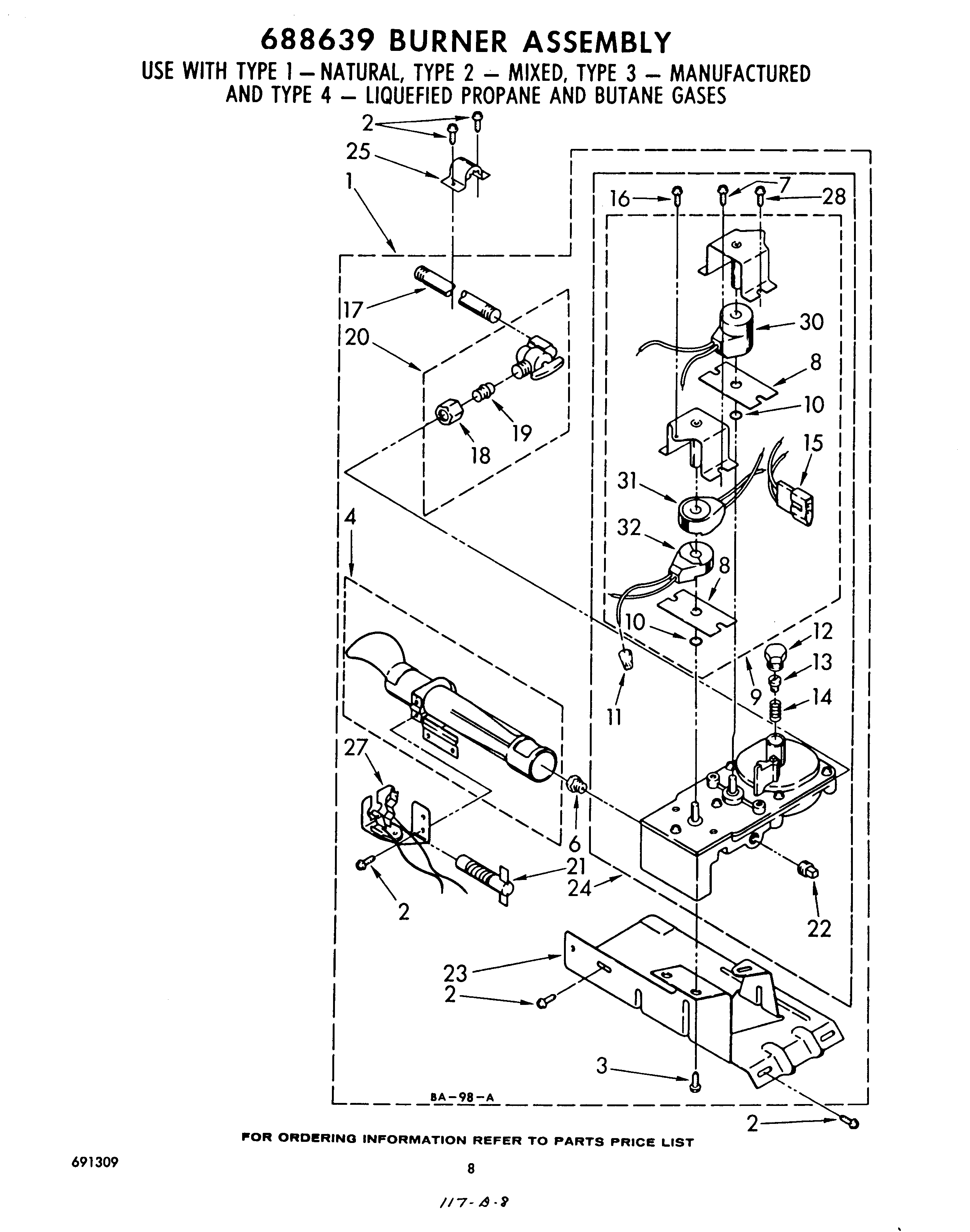

2LG5701XKW0 06 – 688639 BURNERadmin2025-04-26T10:54:10+00:002LG5701XKW0 06 – 688639 BURNER
Products
| Position | Product |
|---|
| 1 | WPL 688639 |
| 2 | SCREW |
| 3 | WP90767 Whirlpool Screw |
| 4 | WP693140 Whirlpool Burner |
| 6 | WP234868 Whirlpool Gas Orifice |
| 6 | WP234826 Whirlpool Gas Orifice |
| 6 | WP229742 Whirlpool Gas Orifice |
| 6 | Orifice, Burner (Type 2) |
| 6 | Orifice, Burner (Type 3) |
| 7 | WP489128 Whirlpool Refrigerator Screw |
| 8 | Plate (2) |
| 9 | BURNER-GAS |
| 10 | Ring, ``O`` (2) |
| 11 | Connector, Wire (3) |
| 12 | Screw, Leak Limiter |
| 13 | Screw, Regulator Adjustment |
| 14 | Spring, Regulator |
| 15 | 353424 Whirlpool Connector |
| 16 | Screw, 6-20 x 5/16 |
| 17 | Pipe, Gas Supply |
| 18 | Nut, Compression |
| 19 | 3393767 Whirlpool Pipe |
| 20 | Valve & Union, Shut-Off |
| 21 | 279311 Whirlpool Dryer Flat Igniter with Bracket |
| 22 | W10295523 Whirlpool Plug |
| 23 | Baseplate |
| 24 | Valve Assembly, 60 Hz. |
| 25 | 341029 Whirlpool Clamp |
| 28 | Screw, 8-32 x 5/8 (2) |
| 30 | Coil Assembly (Main) |
| 31 | Coil Assembly (Hold) |
| 32 | W10402145 Whirlpool LP Gas Connection |
| 32 | Kit, Conversion Type 1 To Type 3 (MFD) |
| 32 | Coil Assembly (Assist) |
