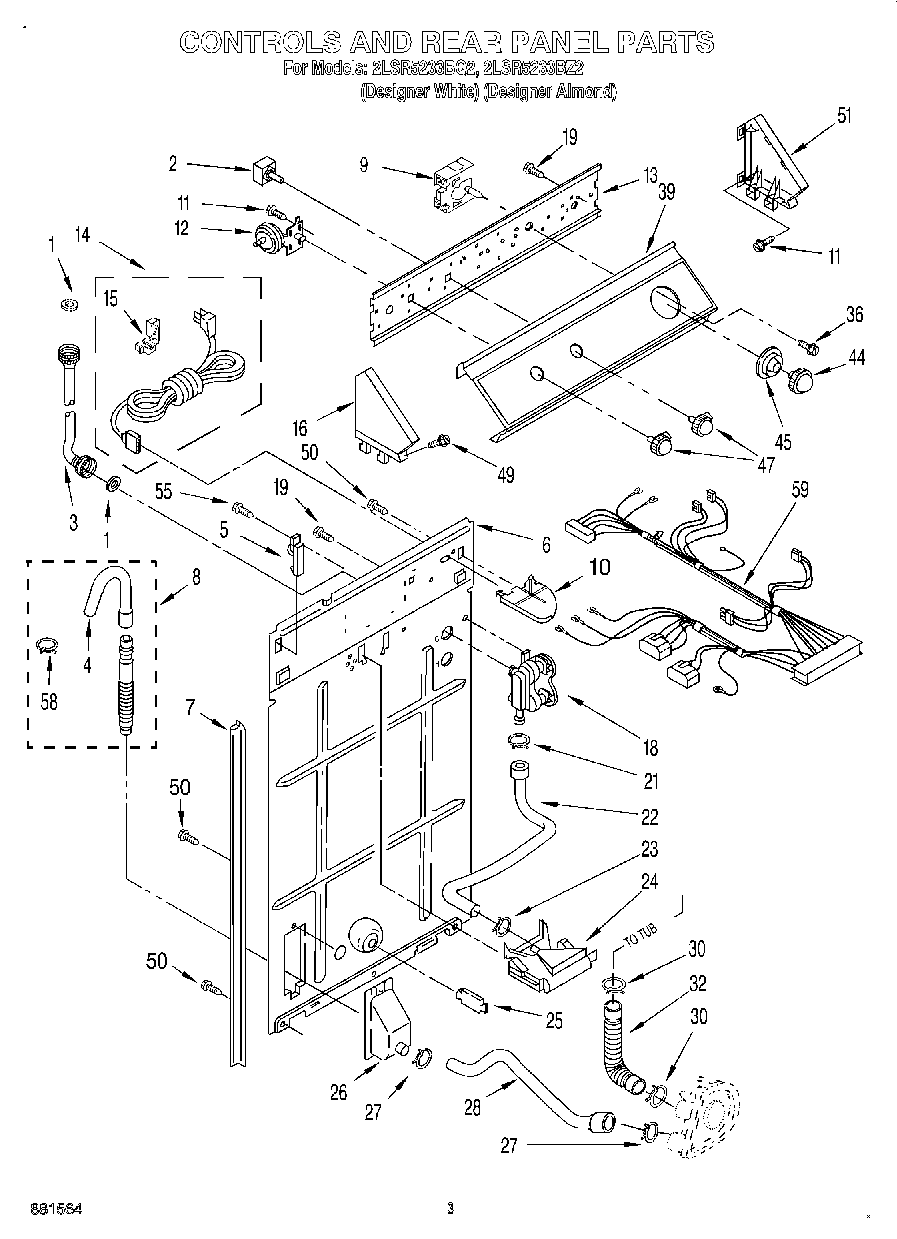

2LSR5233BZ2 02 – CONTROLS AND REAR PANEL

2LSR5233BZ2 02 – CONTROLS AND REAR PANEL

Written by

in

2LSR5233BZ2 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP3357450 Whirlpool Washer Assembly
2WPW10168256 Whirlpool Temperature Switch
3WPW10489643 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10WPL 3348424
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (Almond)
16Cap, End (L.H.)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
30WP616099 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
36WP356418 Whirlpool Screw
39Panel, Console (For Almond Model)
39Panel, Console (For White Model)
44WP3364293 Whirlpool Timer Knob
45Dial, Timer
47WP3957796 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (Almond)
51Cap, End (R.H.)
55WP308685 Whirlpool Microwave Screw
58WP371502 Whirlpool Clamp
59Harness, Wiring Also See Clips.
