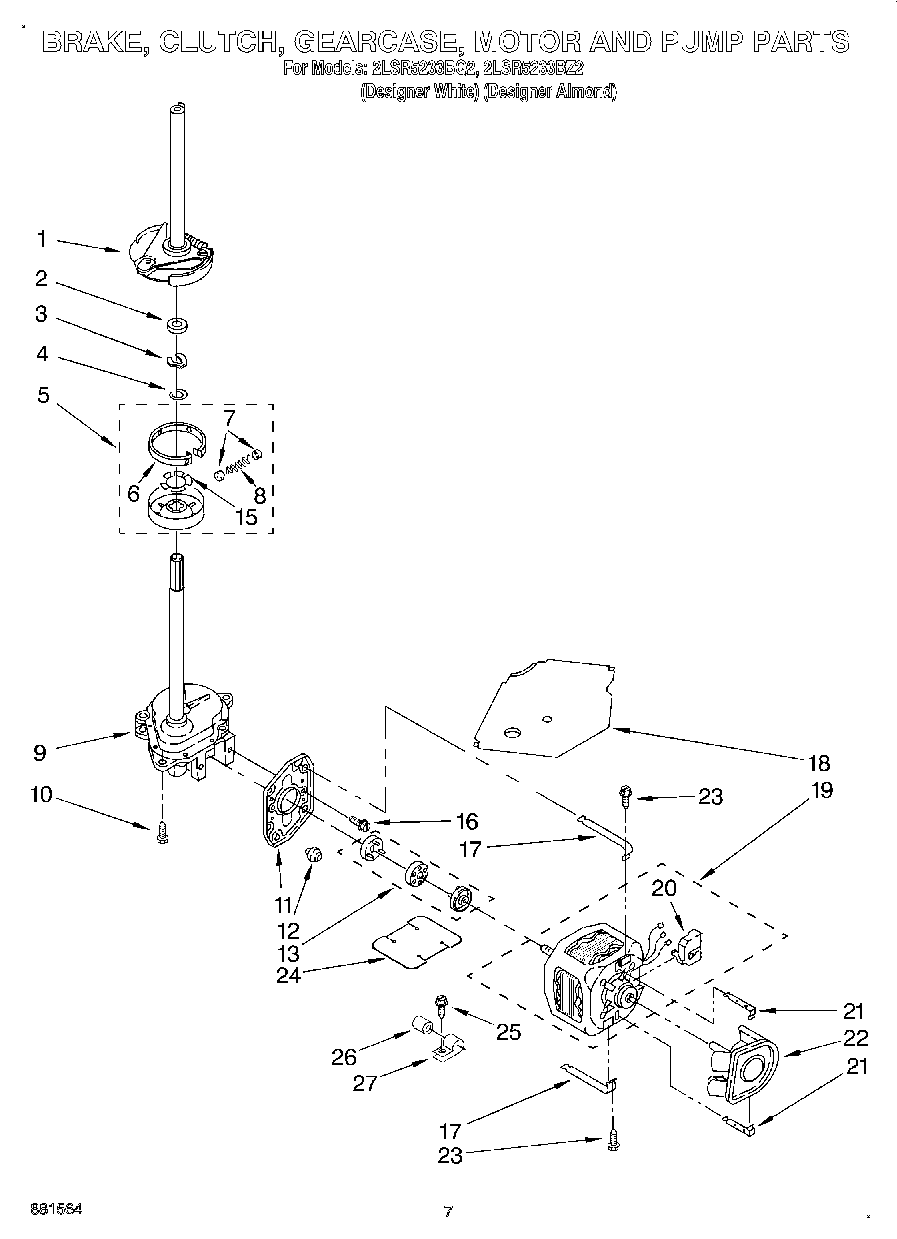

2LSR5233BZ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP62646 Whirlpool Cap
8Spring, Clutch (Not Serviced)
93363395 Whirlpool Gearcase
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
15Clip, Anti-Rattle
16WP3400516 Whirlpool Screw
17WPW10086010 Whirlpool Motor Retainer Clip
18W10838408 Whirlpool Motor Shield
19WP3946896 Whirlpool Drive Motor
20Switch, Main Drive Motor
21WP8546127 Whirlpool Retainer Clip
22WP3363892 Whirlpool Water Pump
23WP273556 Whirlpool Screw
24WP3946532 Whirlpool Shield
25WP3390631 Whirlpool Screw
26CAPACITOR
27357030 Whirlpool Clamp
