2U18MS2VHB ROOM AIR CONDITIONER

Products

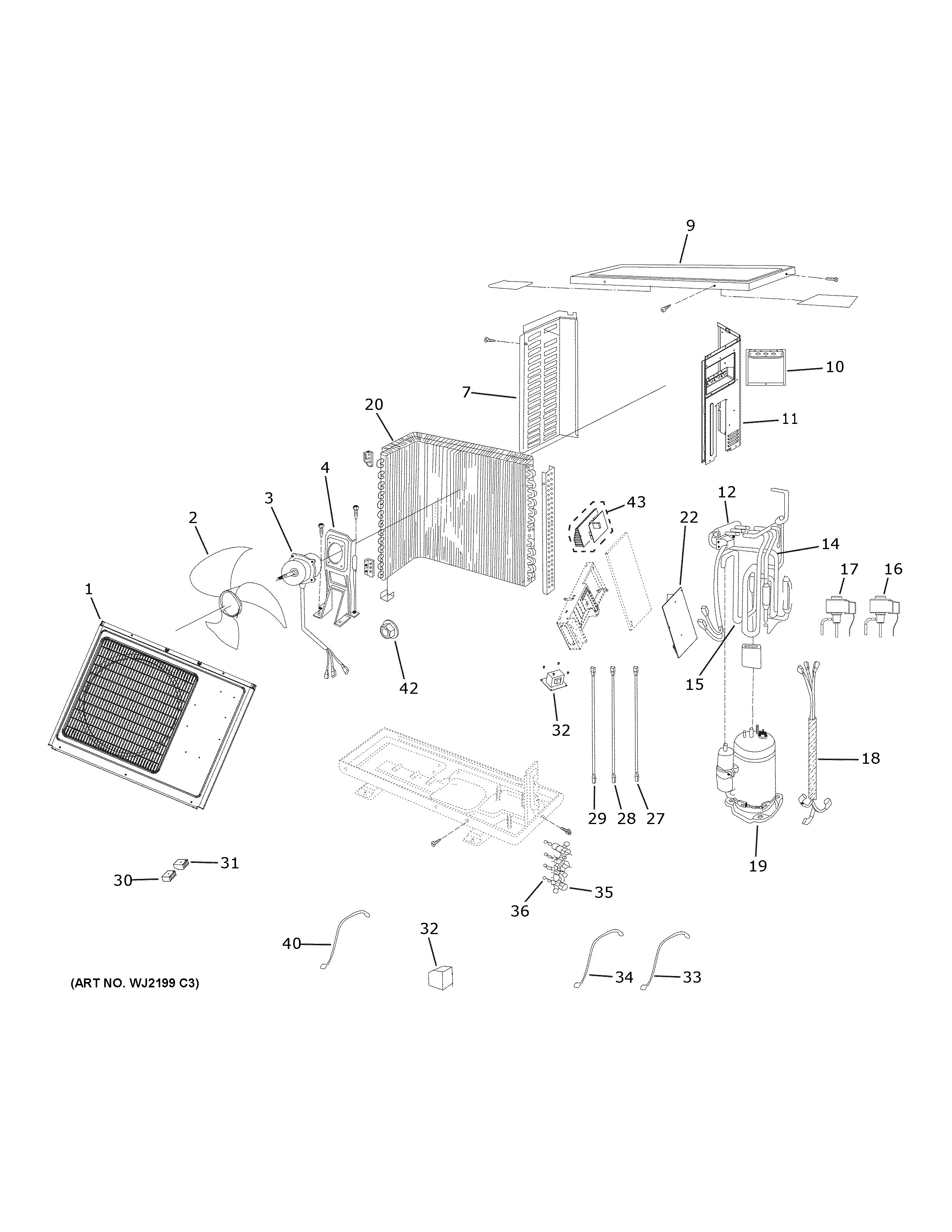

Position	Product
1	WJ71X23700 GE Casing
2	WJ73X23305 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X23697 GE Outdoor Fan Motor Bracket
7	WJ71X23696 GE Left Side Panel
9	WJ71X23710 GE Top Panel
10	WJ76X24084 GE Cover
11	WJ71X23708 GE Right Side Panel
12	WJ53X22987 GE 4-Way Valve Assembly
14	WJ53X23295 GE Discharge Tube
15	SUCTION TUBE
16	WJ53X23702 GE Evaporator Branch Assembly (White)
17	ELECTRONIC EXPANSION VALVE
18	WJ35X23704 GE Outdoor Wire Harness
19	WJ98X23285 GE Compressor
20	CONDENSER ASSEMBLY
22	WJ26X23703 GE Outdoor Control Board
27	WJ26X23286 GE Compressor Temperature Sensor
28	WJ26X23334 GE Sensor Pipe
29	WJ26X23278 GE Ambient Temperature Sensor
30	TERMINAL BLOCK
31	WJ27X23011 GE Indoor Terminal Block
32	WJ27X23006 GE Reactor
33	PIPE TEMPERATURE SENSOR
34	WJ26X23706 GE Temperature Sensor Pipe
35	WJ53X24974 GE Vapor Service Valve
36	WJ53X22991 GE Liquid Service Valve
40	WJ26X23346 GE Temperature Suction Sensor
42	WJ01X22974 GE Flange Nut
43	WJ26X24105 GE Inverter Assembly
