2U20EH2HDA1 ROOM AIR CONDITIONER

Products

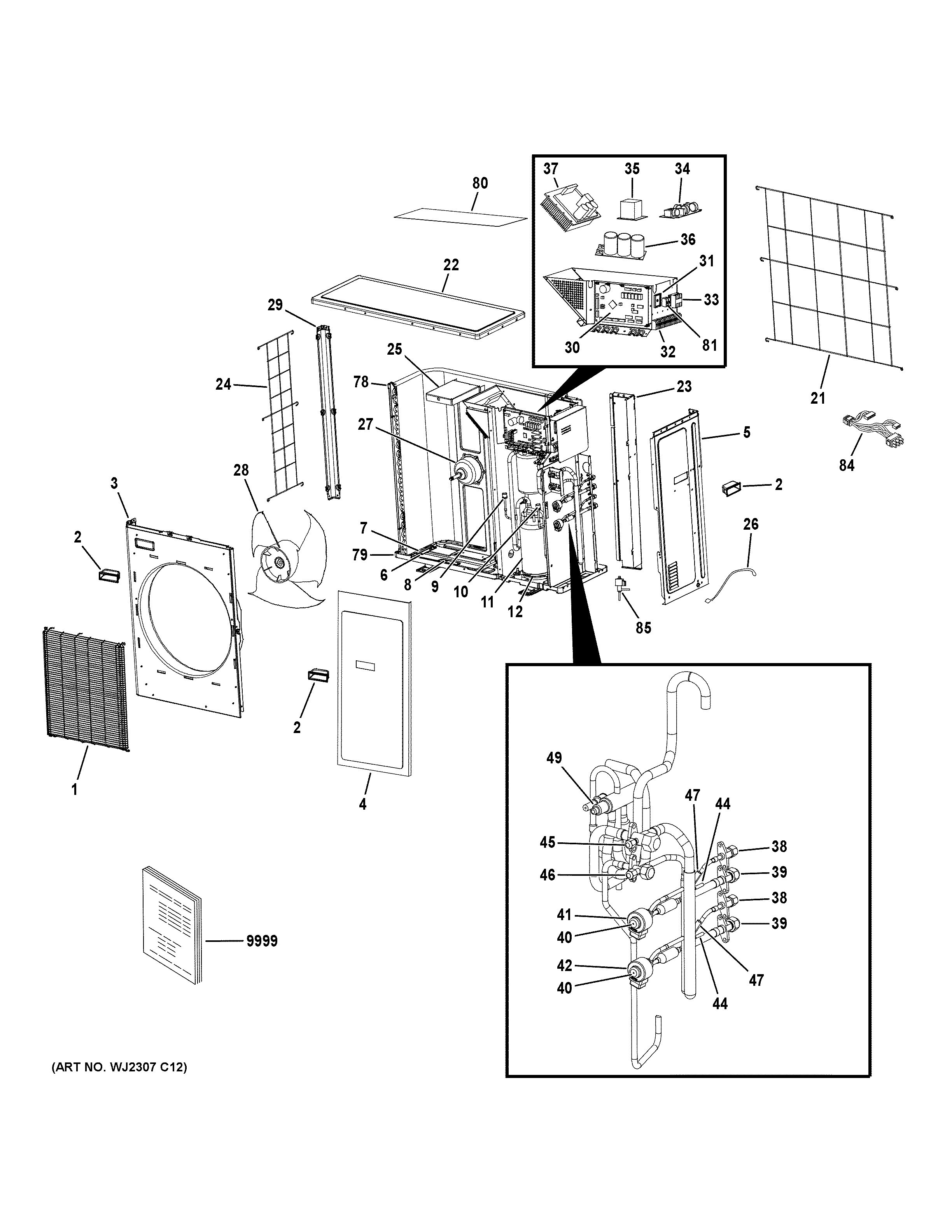

Position	Product
1	FRONT GRILLE
2	WJ65X25041 GE Handle
3	WJ71X28933 GE Panel Front
4	WJ71X29694 GE Front Panel
5	WJ71X23737 GE Right Side Panel
6	WJ65X26198 GE Baffle Late
7	WJ27X25052 GE Heating Element
8	WJ65X25035 GE Baffle Plate
9	WJ26X23722 GE Low Pressure Switch
10	WJ27X22646 GE High Pressure Switch
11	COMPRESSOR
12	WJ27X25045 GE Band Heater
21	WJ71X25038 GE Rear Grille
22	WJ76X29693 GE Top Cover
23	WJ71X25051 GE Rear Panel
24	LEFT GRILLE
25	WJ65X23733 GE Outdoor Fan Motor Bracket
26	WJ26X28816 GE Refrigerator Defrost/Suction/Discharge Temperature
27	WJ94X25044 GE Fan Motor
28	FAN BLADE
29	WJ65X32235 GE Stand Column
30	OUTDOOR POWER CONTROL BOARD
31	SERVICE POWER CONTROL BOARD
32	WJ26X23730 GE Indoor Terminal Block
33	WJ26X25073 GE Terminal Block Supply
34	WJ26X25043 GE Power Control Board Filter
35	WJ26X23734 GE Reactor
36	WJ20X25033 GE Power Control Board Capacitor
37	WJ26X25173 GE Inverter Driver Module
38	WJ53X25047 GE Gas Pipe 3/8 Inch
39	WJ53X25046 GE Liquid Pipe 1/4"
40	WJ26X22674 GE Expansion Valve Body
41	WJ26X25034 GE Leveling Coil
42	WJ26X24364 GE Evaporator Coil
44	LIQ. SENSOR ASSY.(BLUE&WHITE)
45	WJ53X25050 GE Gas Stop Valve
46	WJ53X25049 GE Liquid Stop Valve
47	VAPOR SENSOR ASSY(BLUE&WHITE)
49	WJ53X23567 GE 4-Way Valve
78	WJ88X29334 GE Condenser Assembly
79	WJ76X31186 GE Bottom Plate Assembly
80	WJ76X31168 GE Electrical Box Cover
81	WP26X28216 GE Terminal Block Communication
84	WJ35X32113 GE Wiring Harness
85	WJ53X23724 GE Outdoor EEV Coil Assembly
9999	PM INSTALL INSTRUCTIONS
