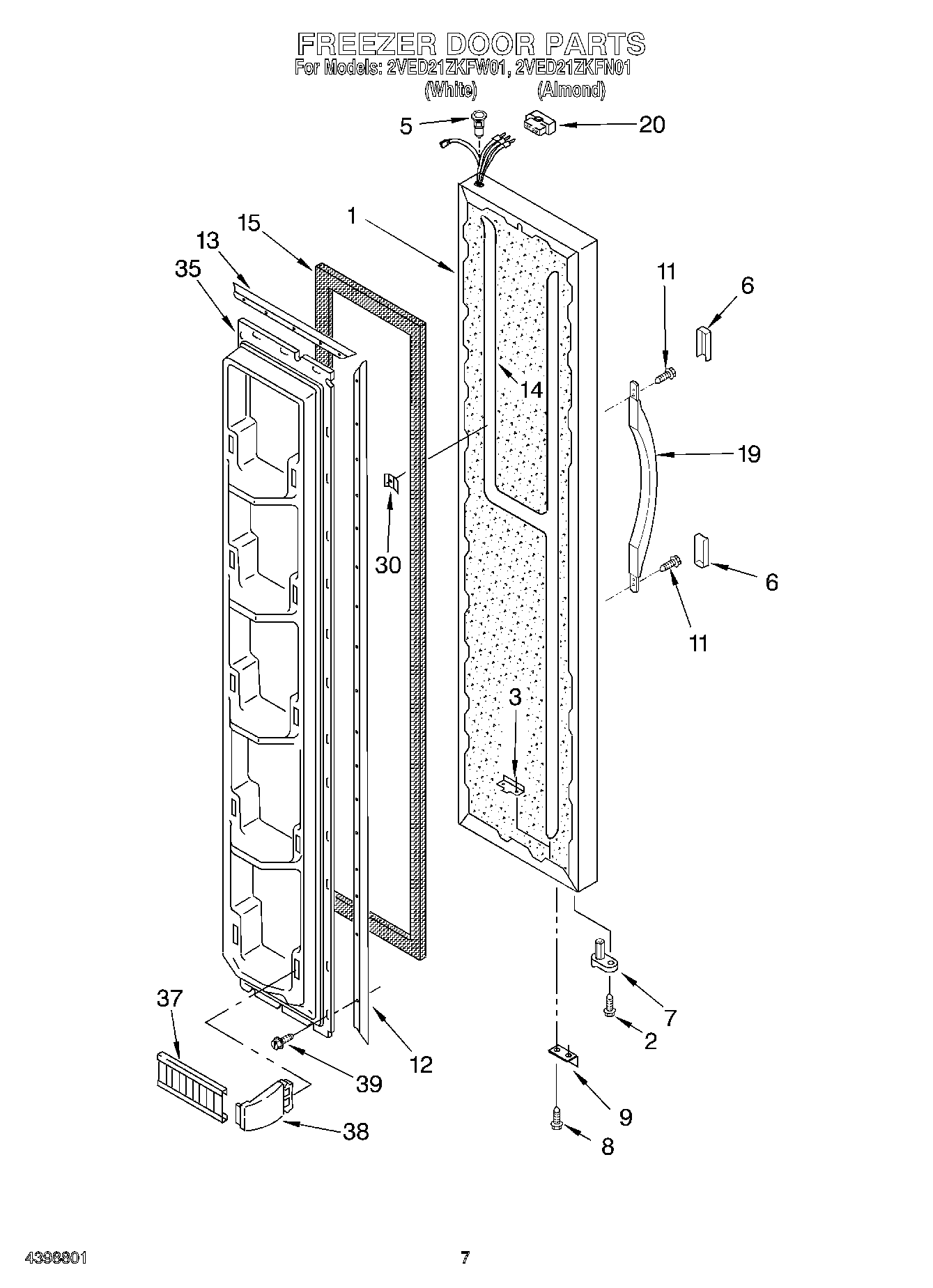

2VED21ZKFN01 05 – FREEZER DOORadmin2025-04-26T10:53:46+00:002VED21ZKFN01 05 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (White) |
| 1 | Freezer, Door Panel (Almond) |
| 2 | WP3400012 Whirlpool Refrigerator Screw |
| 3 | SCREW PLATE |
| 5 | WP2182181 Whirlpool Refrigerator Thimble |
| 6 | WP2193353W Whirlpool Refrigerator Trim Handle |
| 6 | Endcap, Handle (2) (Almond) |
| 7 | WP2182179 Whirlpool Cam Closer |
| 8 | WP489483 Whirlpool Screw |
| 9 | Bracket, Door Stop (Chrome) |
| 11 | WP489491 Whirlpool Refrigerator Screw |
| 12 | Retainer, Gasket |
| 13 | Retainer, Gasket |
| 14 | Heater, Door |
| 15 | 2188405A Whirlpool Refrigerator Door Gasket |
| 19 | Handle, Center (White) |
| 19 | Handle, Center (Almond) |
| 20 | Housing Plug |
| 30 | Screw Anchor (2) |
| 35 | Interior, Door Panel |
| 37 | Trim, Door Shelf |
| 38 | WP2196100 Whirlpool Shelf Retainer Bar Support |
| 39 | WP489069 Whirlpool Compactor Screw |
