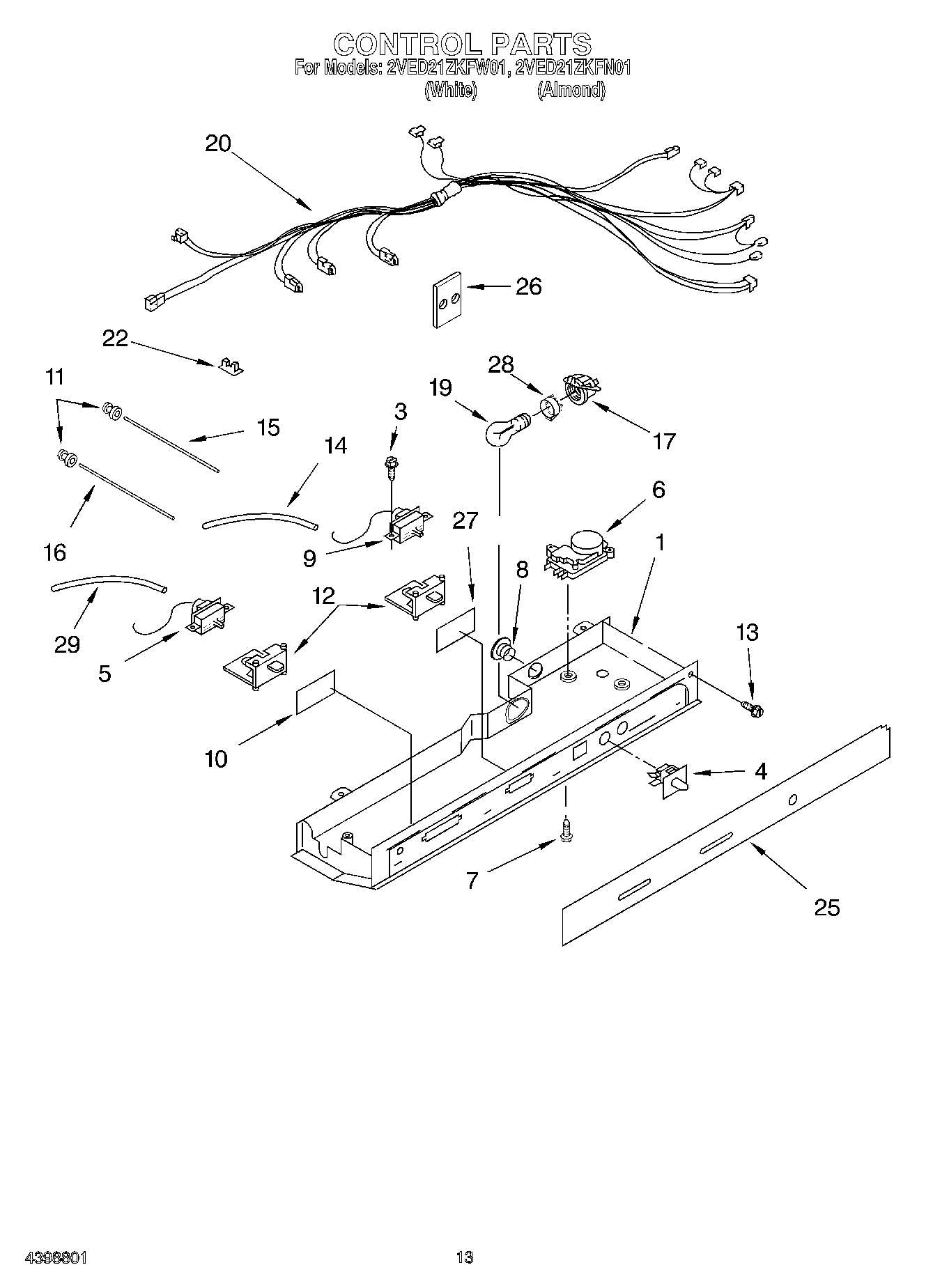

2VED21ZKFN01 08 – CONTROL

2VED21ZKFN01 08 – CONTROL

Written by

in

2VED21ZKFN01 08 – CONTROL

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Thermostat (FC)
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13WP489478 Whirlpool Refrigerator Screw
15Fiber Optic
16Light Bar (FC)
174387478 Whirlpool Refrigerator Light Socket
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
25Escutcheon, Control Box
262172931 Whirlpool Refrigerator Shield
27Window
28WP2175210 Whirlpool Refrigerator Shroud
29Almond (Uncut)
29Torx Key
2972032 Whirlpool Touch Up Paint Black
29285006 Whirlpool Spray
29WP2196003 Whirlpool Refrigerator Bar Riser
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29350942 Whirlpool Spray Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29833938 Whirlpool Refrigerator Terminal
29876370 Whirlpool Refrigerator Insulation
29WPL 876029
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29350930 Whirlpool White Spray Paint
