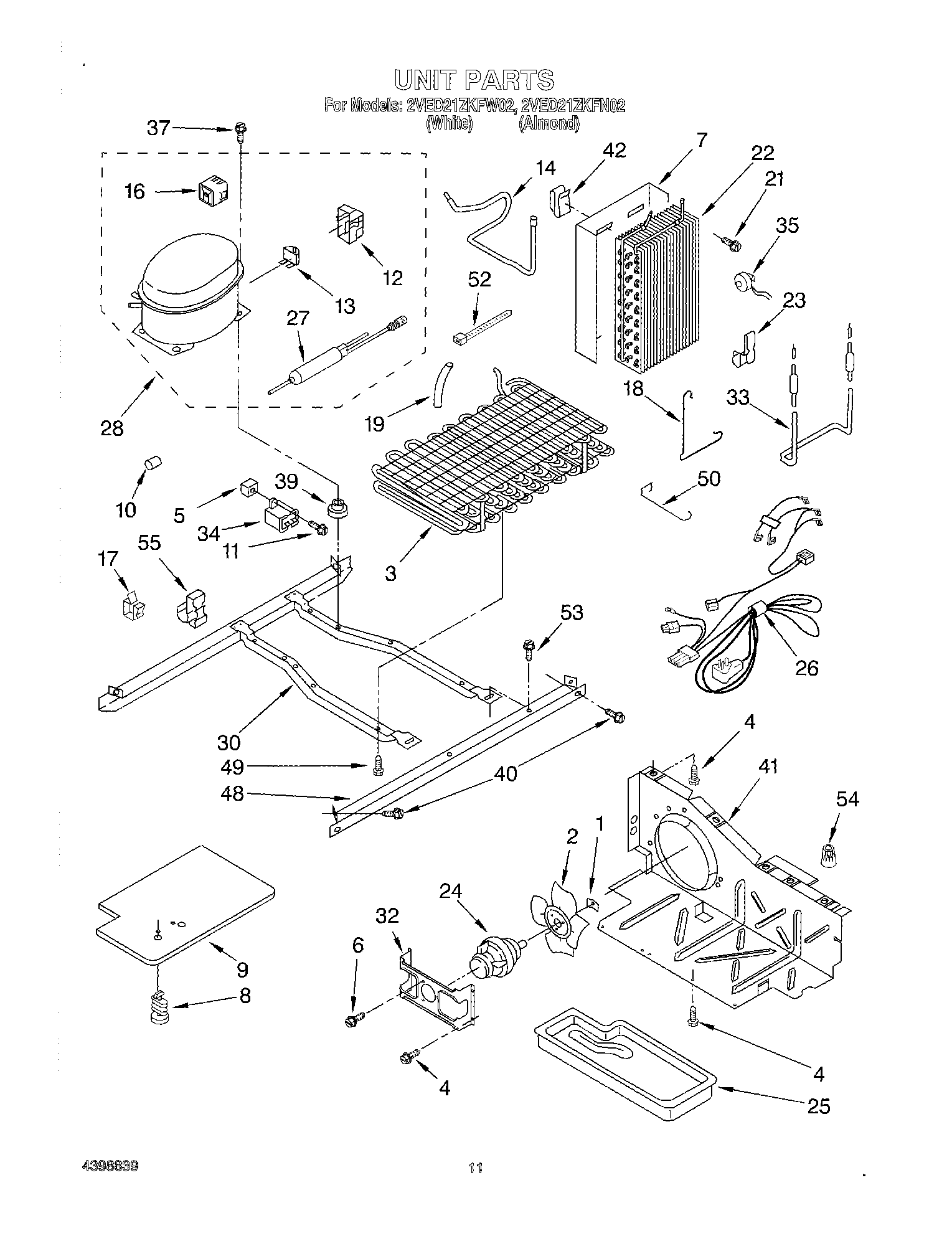

2VED21ZKFN02 07 – UNIT

2VED21ZKFN02 07 – UNIT

Written by

in

2VED21ZKFN02 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Screw Grommet
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	489396 Whirlpool Refrigerator Clip
9	Cover, Unit Compartment
10	WP2158826 Whirlpool Refrigerator Dampener
11	W11693756 Whirlpool Screw Assembly
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	4388786 Whirlpool Refrigerator Overload
14	2205764 Whirlpool Refrigerator Tube
16	Start Device, Combination (Start Relay and Overload) For Production Compressor Only
17	W10169512 Whirlpool Clip
18	Clamp
19	SLEEVE
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10183407 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	WP2201147 Whirlpool Refrigerator Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WP978025 Whirlpool Refrigerator Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	Clip, Wire & Tube
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
55	VALVE, ACCESS (1/2“)
