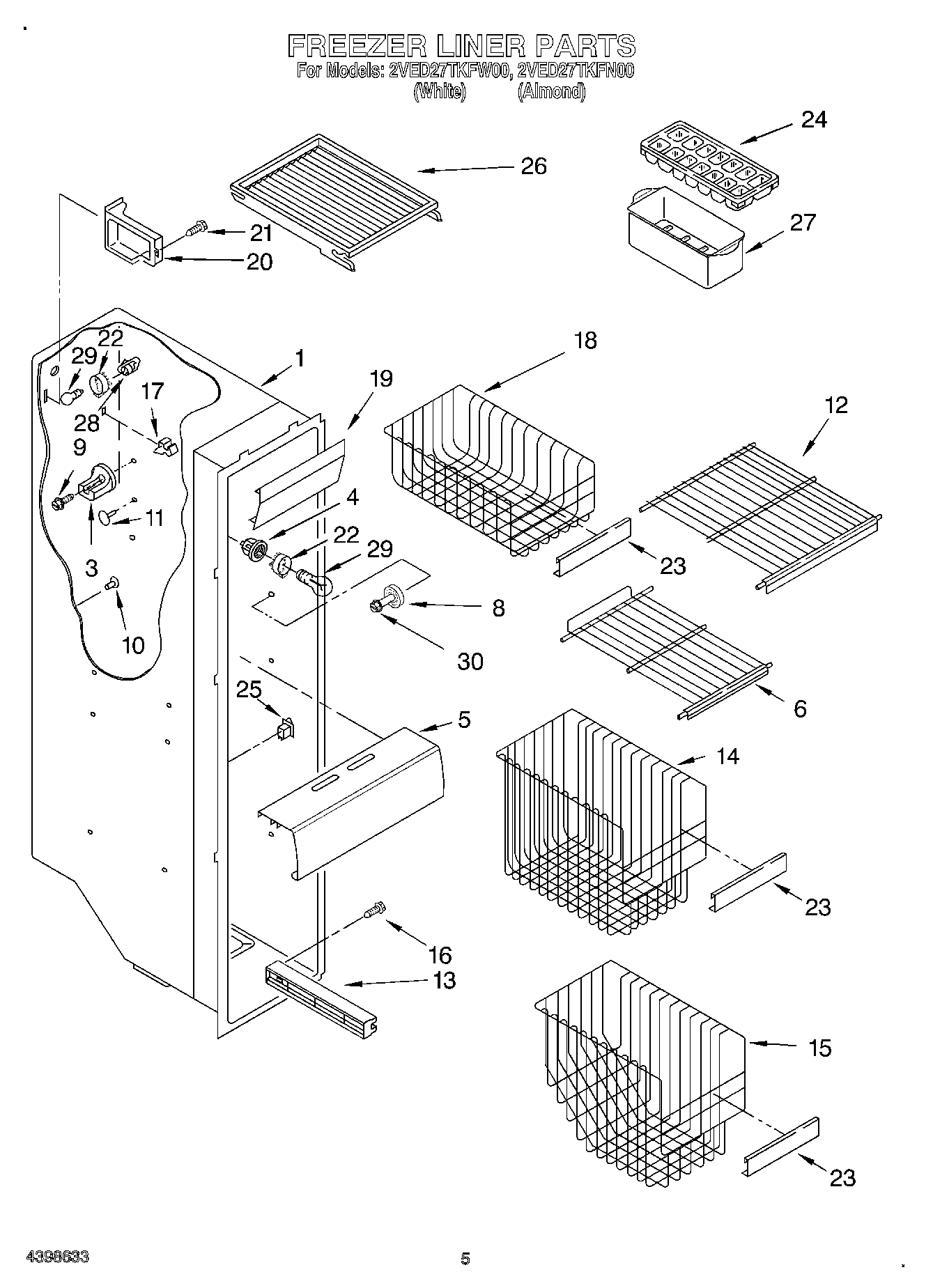

2VED27TKFN00 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	Stud, Rear
4	SOCKET
5	2198479 Whirlpool Refrigerator Light Lens
6	WP2174267 Whirlpool Refrigerator Wire Shelf
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	W10142289 Whirlpool Air Conditioner Screw
10	Grommet
11	WP941839 Whirlpool Refrigerator Button Plug
12	Shelf
13	Slide, Basket (Right Side (2))
13	Slide, Basket (Left Side (2))
14	Basket, Tall
15	Basket, Slope
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
18	Basket
19	2171705 Whirlpool Refrigerator Light Lens
20	Cover, Wiring
21	SCREW
22	WP2175210 Whirlpool Refrigerator Shroud
23	Trim, Basket
24	WP841180A Whirlpool Microwave Glass Turntable Tray
25	W11384469 Whirlpool Door Switch
26	Shelf, Top Compartment
27	W10136387A Whirlpool Refrigerator Egg Container
28	4387478 Whirlpool Refrigerator Light Socket
29	WP67002552 Whirlpool Refrigerator Light Bulb
30	WP3400806 Whirlpool Screw
