2VED27TKFN00 04 – REFRIGERATOR DOOR

2VED27TKFN00 04 – REFRIGERATOR DOOR

Written by

in

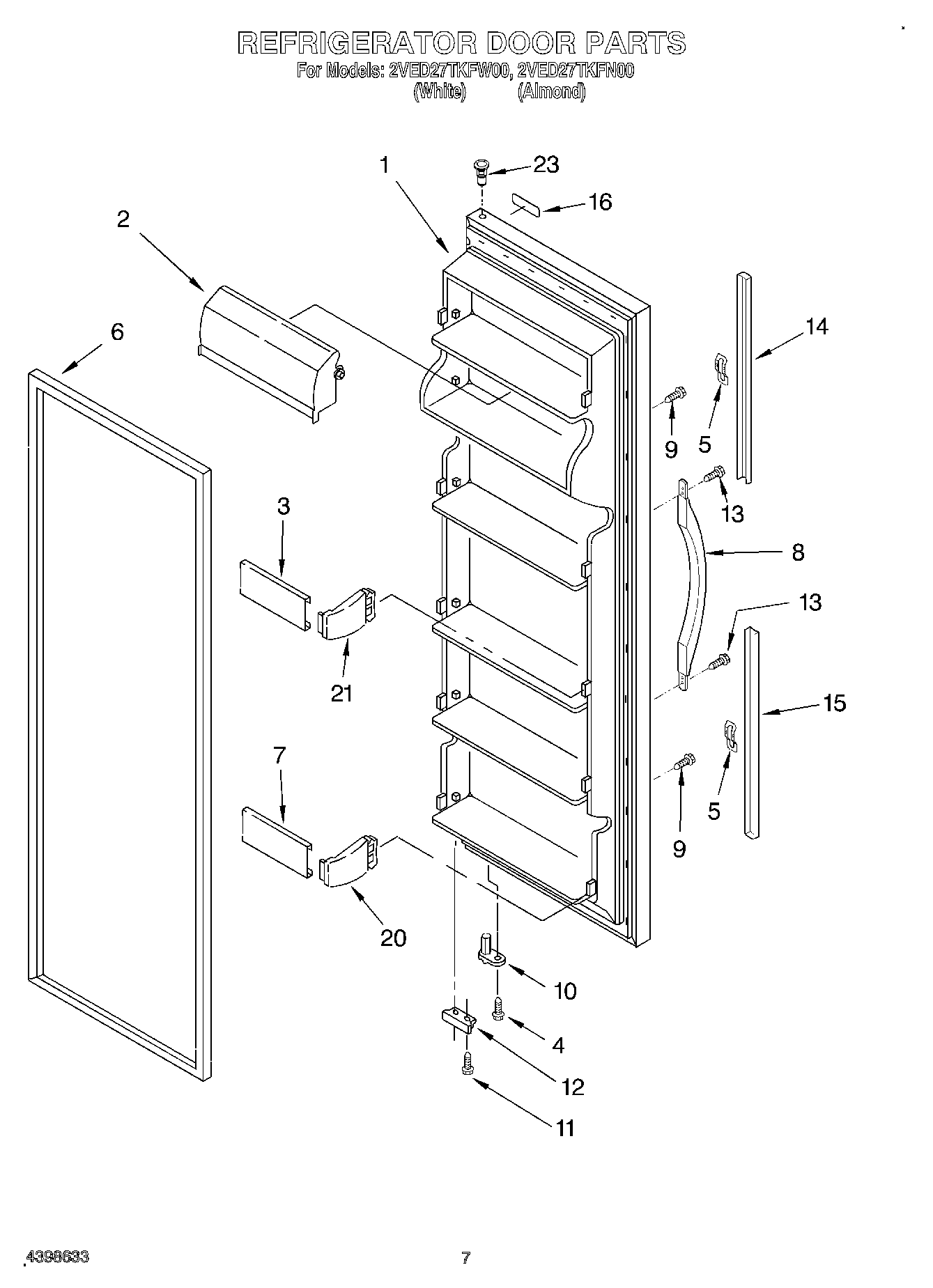

2VED27TKFN00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Almond)
2WP2256101 Whirlpool Dairy Door
3Trim, Door Shelf
4WP3400012 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
62159075 Whirlpool Door Gasket Seal
7WP2256010 Whirlpool Door Shelf Trim
8Handle, Center (Almond)
8Handle, Center (White)
9WP3400852 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Chrome)
13WP489491 Whirlpool Refrigerator Screw
14WP2194973W Whirlpool Door Trim
14Extension, Top (Almond)
15Extension, Bottom (Almond)
15Extension, Bottom (White)
16Nameplate (White)
16Nameplate (Almond)
20ENDCAP
21WP2195915 Whirlpool Door Shelf Support
23WP2182181 Whirlpool Refrigerator Thimble
