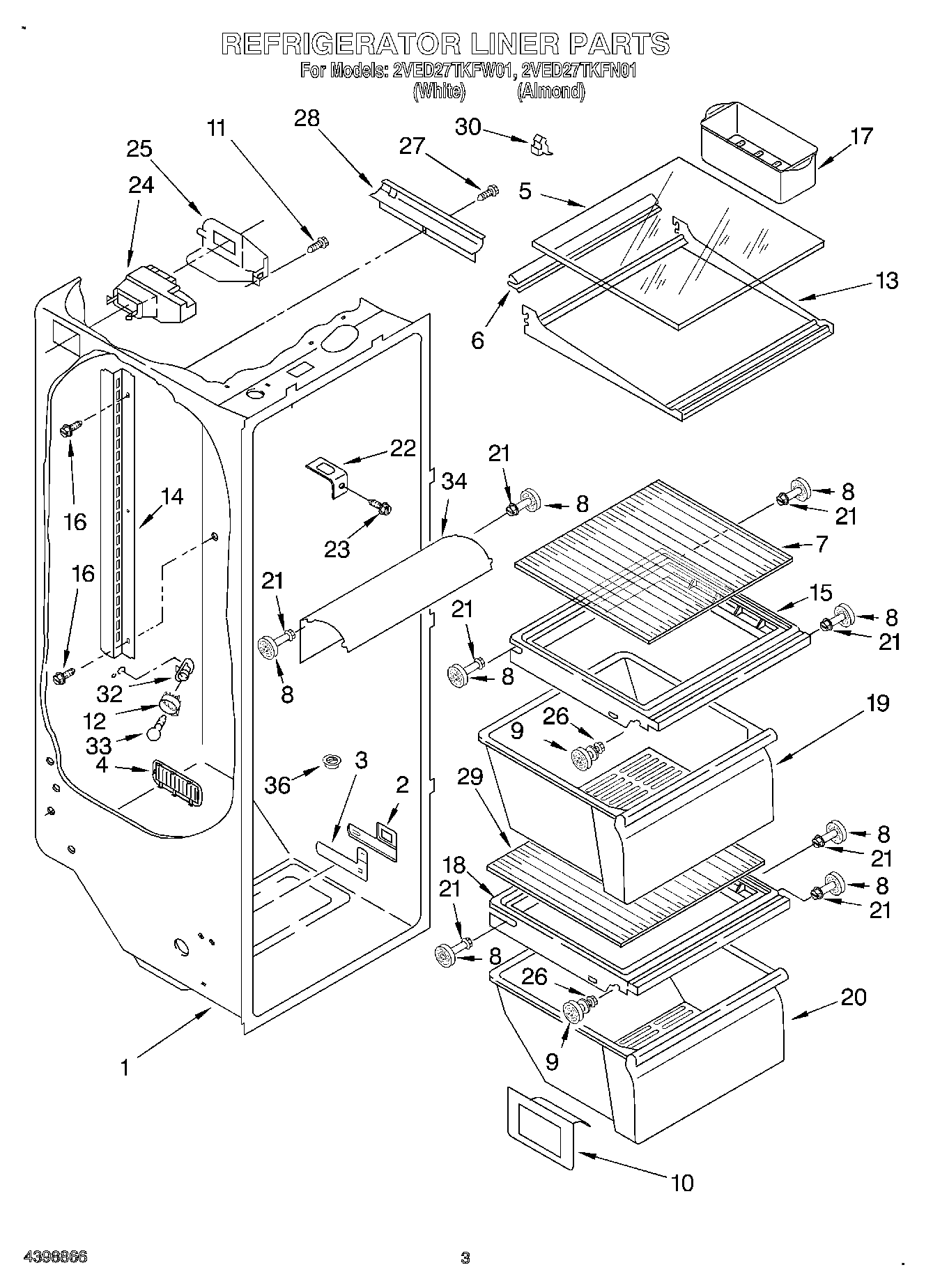

2VED27TKFN01 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Glass (3)
6	Retainer
7	W10864399 Whirlpool Glass Shelf
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	W11223328 Whirlpool Refrigerator Shelf Stud
10	2179350 Whirlpool Refrigerator Deflector
12	WP2175210 Whirlpool Refrigerator Shroud
13	Shelf, Cantilever (3)
14	Ladder, Shelf
15	W10508993 Whirlpool Refrigerator Cover Pan
16	WP488729 Whirlpool Refrigerator Door Screw
17	W10136387A Whirlpool Refrigerator Egg Container
19	WP2188661 Whirlpool Crisper Pan
20	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
21	WP3400806 Whirlpool Screw
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	WP3-24004-109 Whirlpool Refrigerator Screw
27	W10759522 Whirlpool Screw
28	2150331 Whirlpool Refrigerator Wire Cover
30	2215823 Whirlpool Refrigerator Clip
32	4387478 Whirlpool Refrigerator Light Socket
33	WP67002552 Whirlpool Refrigerator Light Bulb
34	Light Lens
36	2171846 Whirlpool Refrigerator Release Valve
