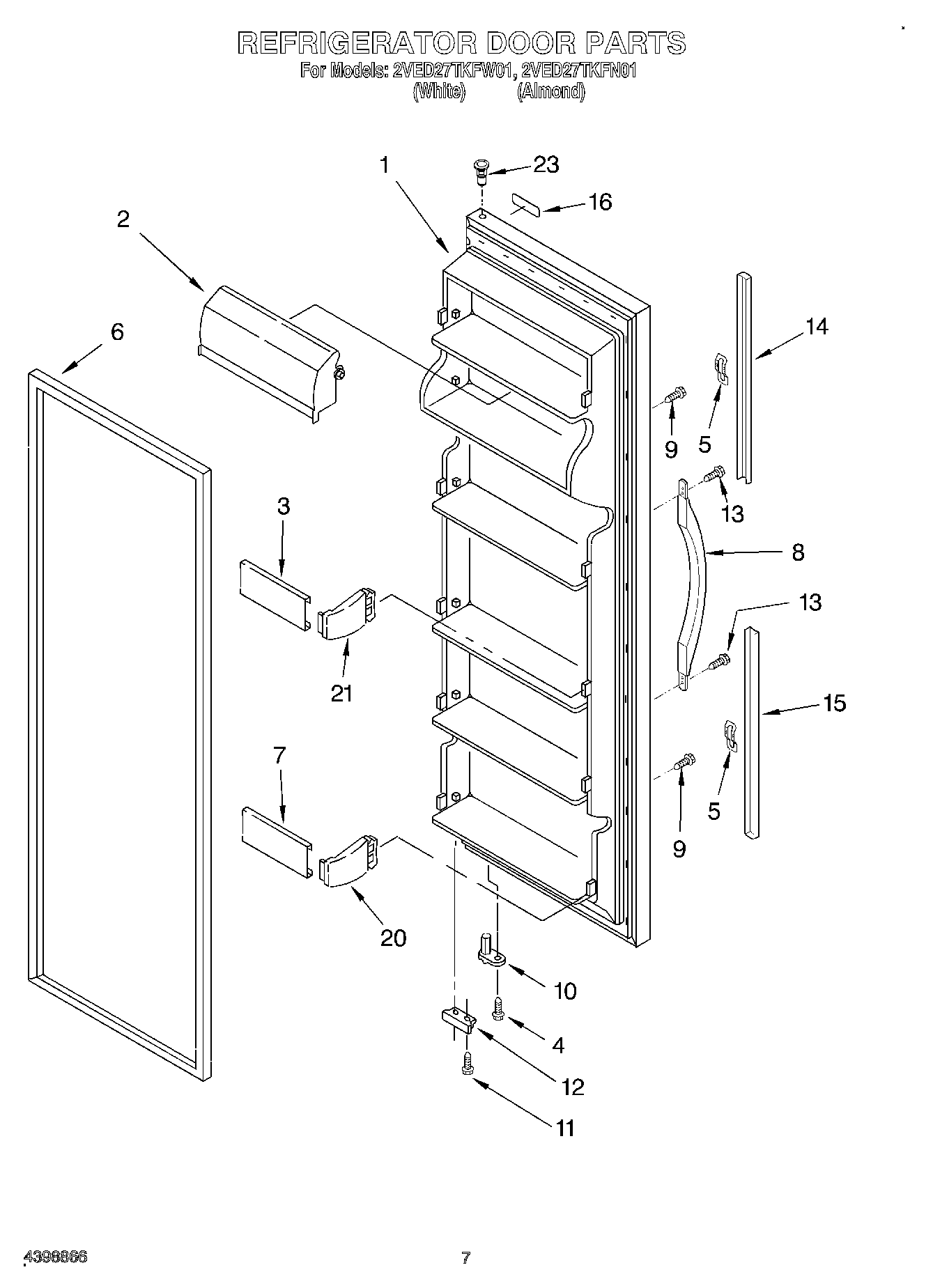

2VED27TKFW01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Almond)
2	WP2256101 Whirlpool Dairy Door
3	Trim, Door Shelf
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	2159075 Whirlpool Door Gasket Seal
7	WP2256010 Whirlpool Door Shelf Trim
8	Handle, Center (Almond)
8	Handle, Center (White)
9	WP3400852 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Chrome)
13	WP489491 Whirlpool Refrigerator Screw
14	WP2194973W Whirlpool Door Trim
14	Extension, Top (Almond)
15	Extension, Bottom (Almond)
15	Extension, Bottom (White)
16	Nameplate (White)
16	Nameplate (Almond)
20	ENDCAP
21	WP2195915 Whirlpool Door Shelf Support
23	WP2182181 Whirlpool Refrigerator Thimble
