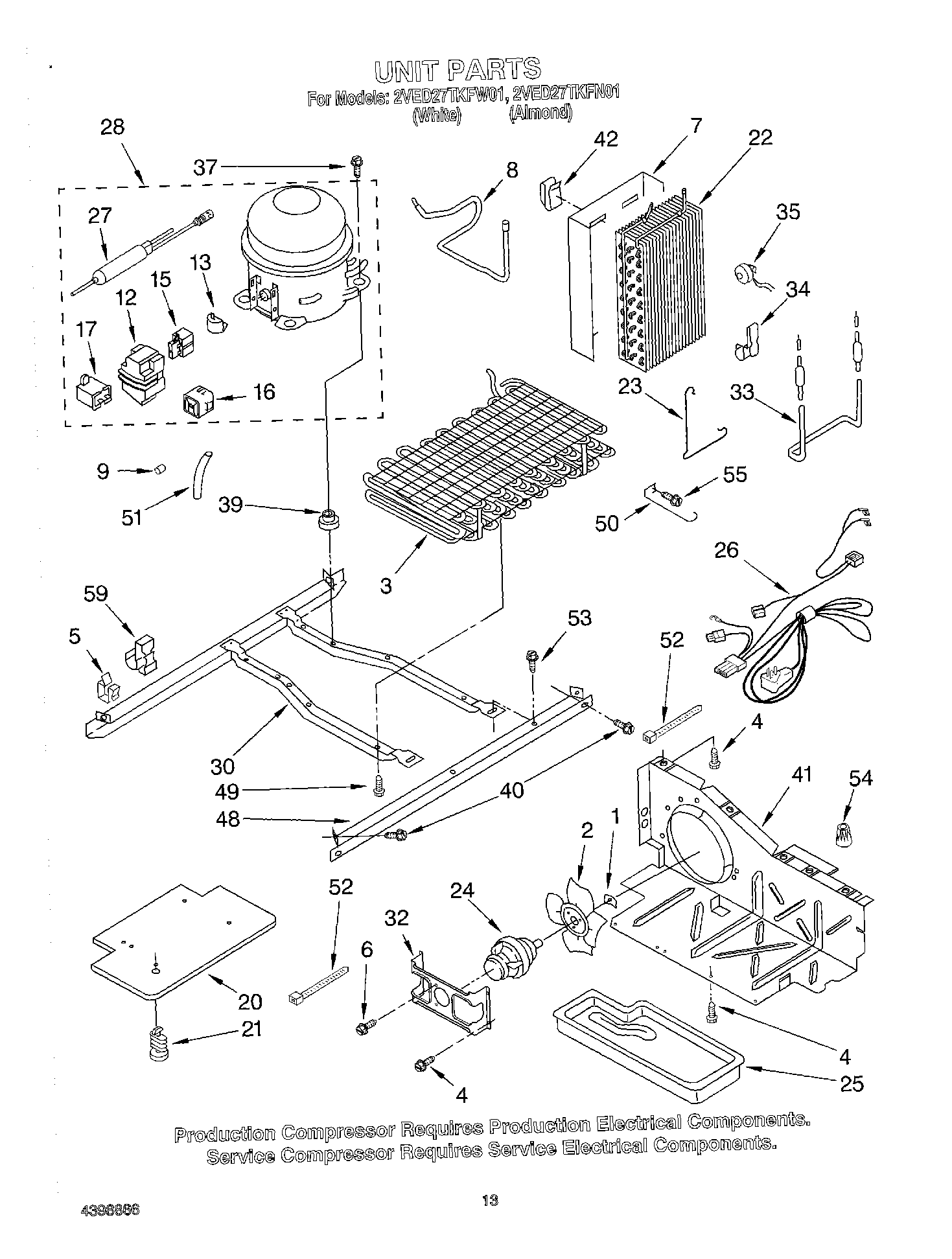

2VED27TKFW01 08 – UNIT, OPTIONAL

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W10169512 Whirlpool Clip
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	WP2158826 Whirlpool Refrigerator Dampener
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2176790 Whirlpool Refrigerator Overload
15	WP2262184 Whirlpool Refrigerator Start Relay
16	Start-Device, Combination (Start Relay and Overload) For Production Compressor Only)
17	WP2201147 Whirlpool Refrigerator Capacitor
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309997 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304904 Whirlpool Frame Assembly
32	WP2181929 Whirlpool Refrigerator Bracket
33	WPW10123653 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire & Tube
59	350930 Whirlpool White Spray Paint
59	VALVE, ACCESS (1/2“)
59	WPW10190943 Whirlpool Refrigerator Icemaker
59	72032 Whirlpool Touch Up Paint Black
59	WP503695 Whirlpool Refrigerator Sealer
59	876370 Whirlpool Refrigerator Insulation
59	833938 Whirlpool Refrigerator Terminal
59	606755 Whirlpool Refrigerator Bag
59	511873 Whirlpool Refrigerator Paint
59	350942 Whirlpool Spray Paint
59	212643 Whirlpool Refrigerator Permagum Sealer
59	VALVE, ACCESS (5/8“)
59	Almond (Uncut)
59	WP72107 Whirlpool Touchup
59	799344 Whirlpool Refrigerator Paint
59	72017 Whirlpool Appliance Touch-Up Paint White
59	876764 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	285006 Whirlpool Spray
59	WPL 876029
59	WPL 799833
59	Enamel, Black (1 Qt. Uncut)
59	CEMENT, ALUMILASTIC (1 1/4 OZ.)
59	TAPE, VINYL (3/4 X 108“)
59	WP978025 Whirlpool Refrigerator Valve
59	Torx Key
59	978030 Whirlpool Refrigerator Valve
59	WP542638 Whirlpool Refrigerator Grease
59	978027 Whirlpool Refrigerator Primary Valve
59	WP505587 Whirlpool Refrigerator Sealer
59	350956 Whirlpool Spray Assembly
