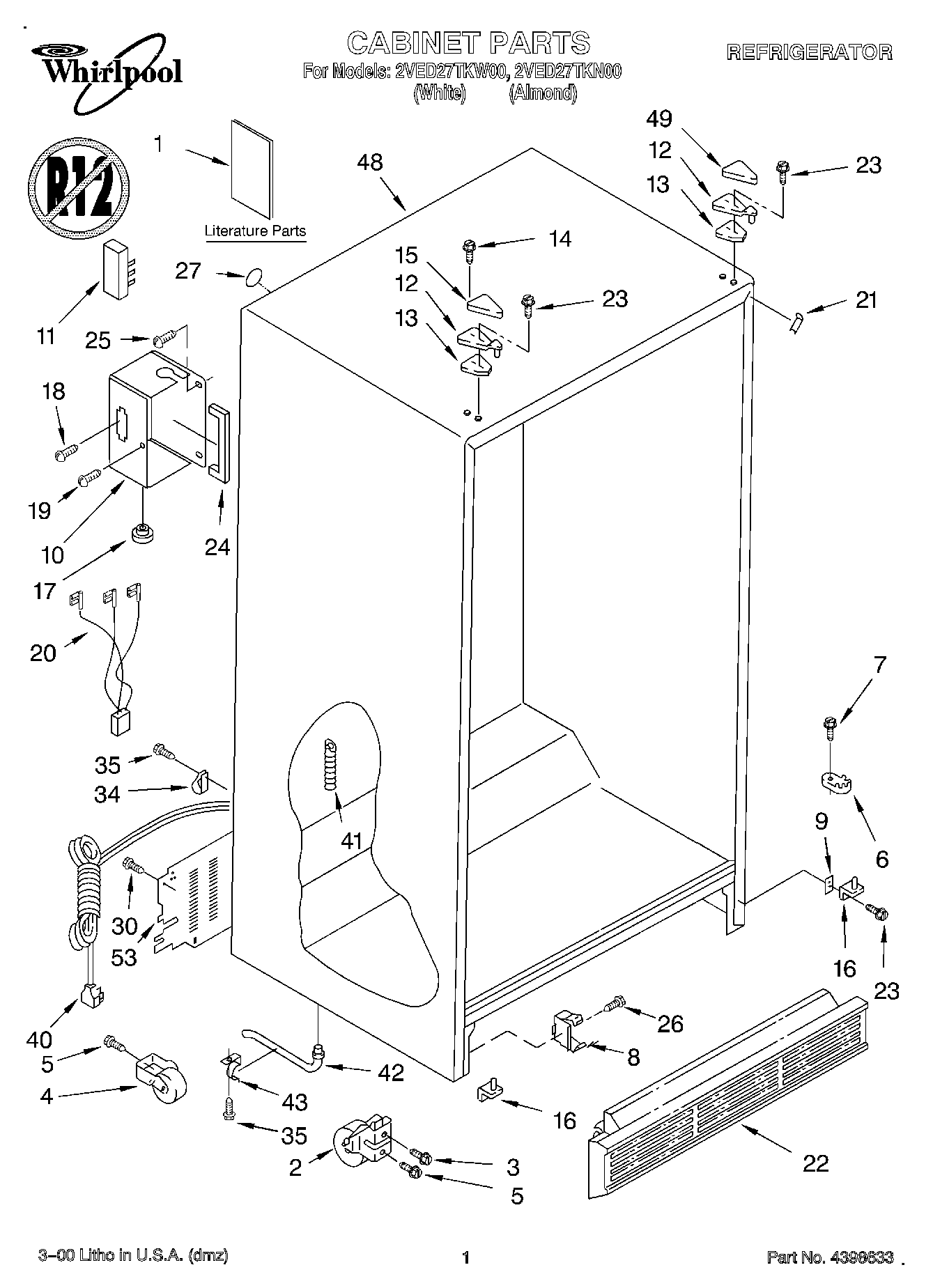

2VED27TKW00 01 – CABINET, LITERATURE

Products

Position	Product
	LITERATURE PARTS
	Service & Wiring Sheet
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP2181911 Whirlpool Refrigerator Shim
10	Enclosure, Terminal Block
11	Terminal Block
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	Bushing
18	WPW10272364 Whirlpool Refrigerator Screw
19	WP489399 Whirlpool Refrigerator Screw
20	Wiring Assembly
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	WPW10283946 Whirlpool Refrigerator Grille
22	W10283947 Whirlpool Grille Assembly
23	WP489497 Whirlpool Screw
24	Gasket
25	WP489463 Whirlpool Refrigerator Screw
27	Hole Seal
34	489348 Whirlpool Refrigerator Tube Clamp
35	WP489478 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
53	Cover, Unit
