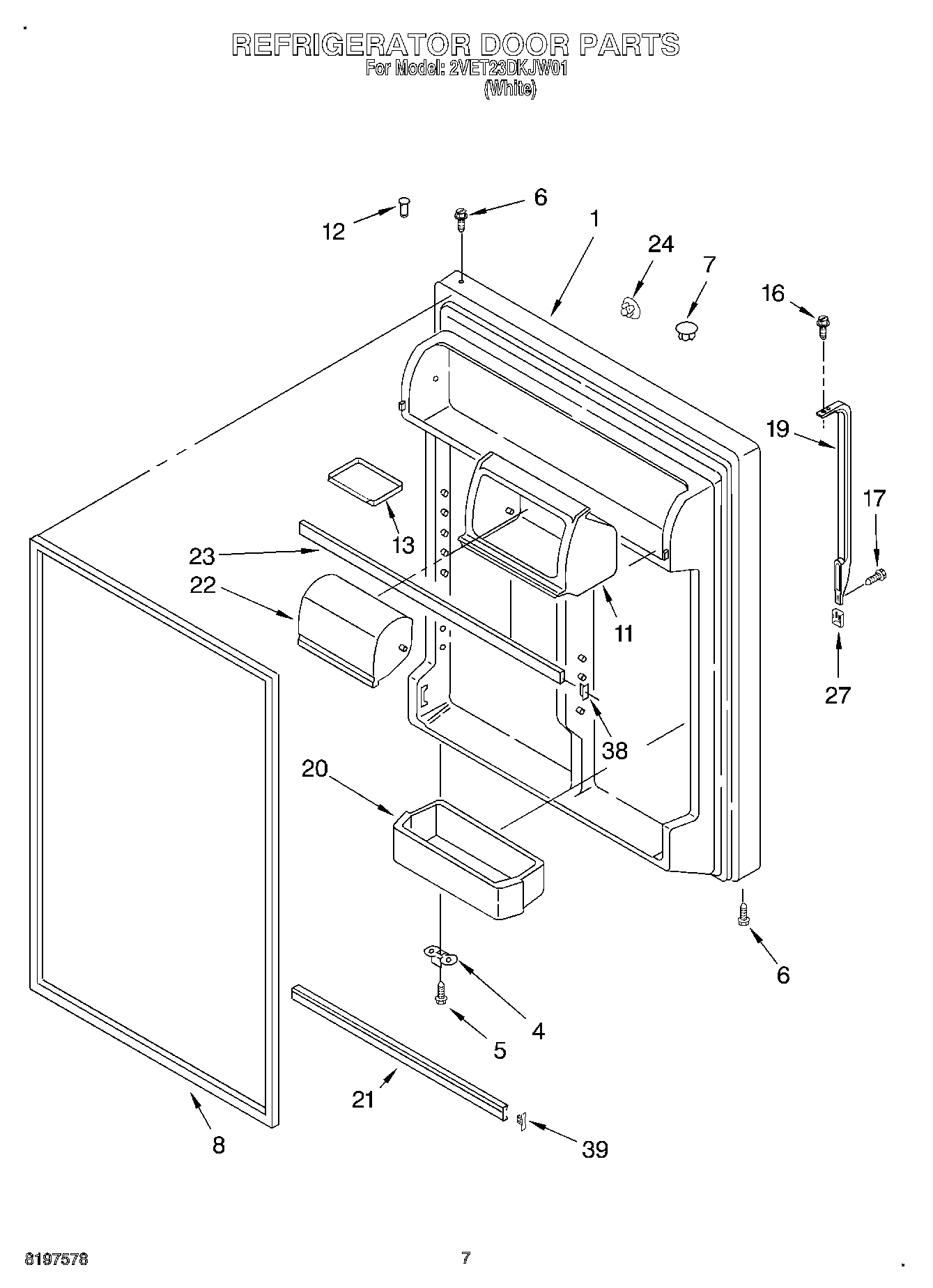

2VET23DKJW01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.8 & No.12) (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159061 Whirlpool Refrigerator Door Gasket
11	Housing Compartment
12	WP2183003 Whirlpool Thimble
13	Tray, Door
16	WP489357 Whirlpool Recessed Screw
17	WP8281146 Whirlpool Screw
19	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
20	BIN-CNTLVR
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	DOOR-COMP
23	Trim, Door Shelf
24	WP2189000 Whirlpool Refrigerator Handle Plug
27	WP2193353W Whirlpool Refrigerator Trim Handle
38	Endcap, Door Trim
39	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
