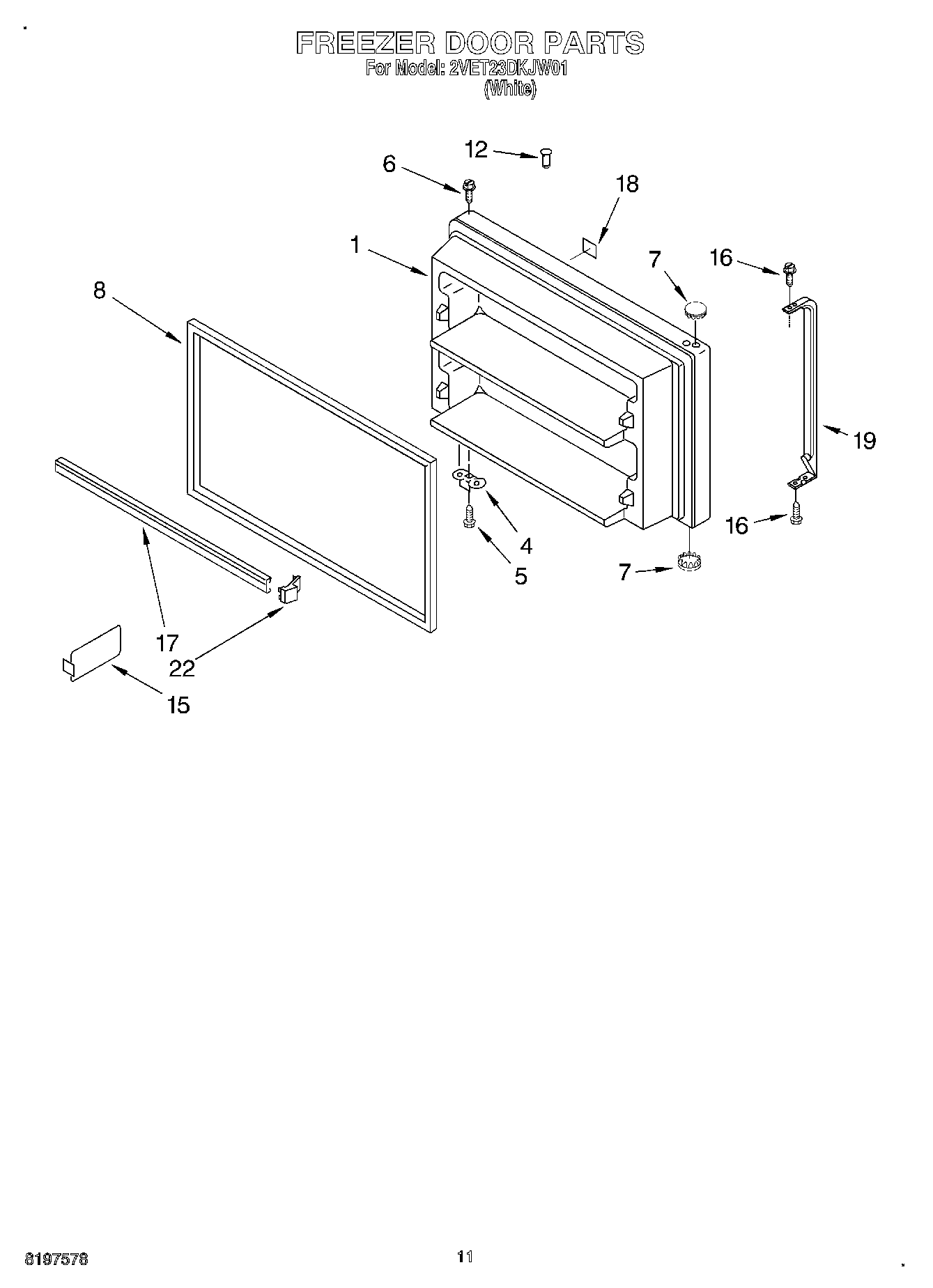

2VET23DKJW01 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Service & Wiring Sheet)
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	Use & Care Guide
	WPL LIT677971
1	Freezer Door (Includes No.8) (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
12	WP2183003 Whirlpool Thimble
15	Divider-Door
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
19	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
22	WP505587 Whirlpool Refrigerator Sealer
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	72017 Whirlpool Appliance Touch-Up Paint White
22	Almond (Uncut)
22	Door Reversal Instructions
22	350956 Whirlpool Spray Assembly
22	350930 Whirlpool White Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	WP542638 Whirlpool Refrigerator Grease
22	WP503695 Whirlpool Refrigerator Sealer
22	TAPE, VINYL (3/4 X 108``)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WPL 799832
22	WPL 799833
22	876370 Whirlpool Refrigerator Insulation
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	WPL 876029
22	285006 Whirlpool Spray
