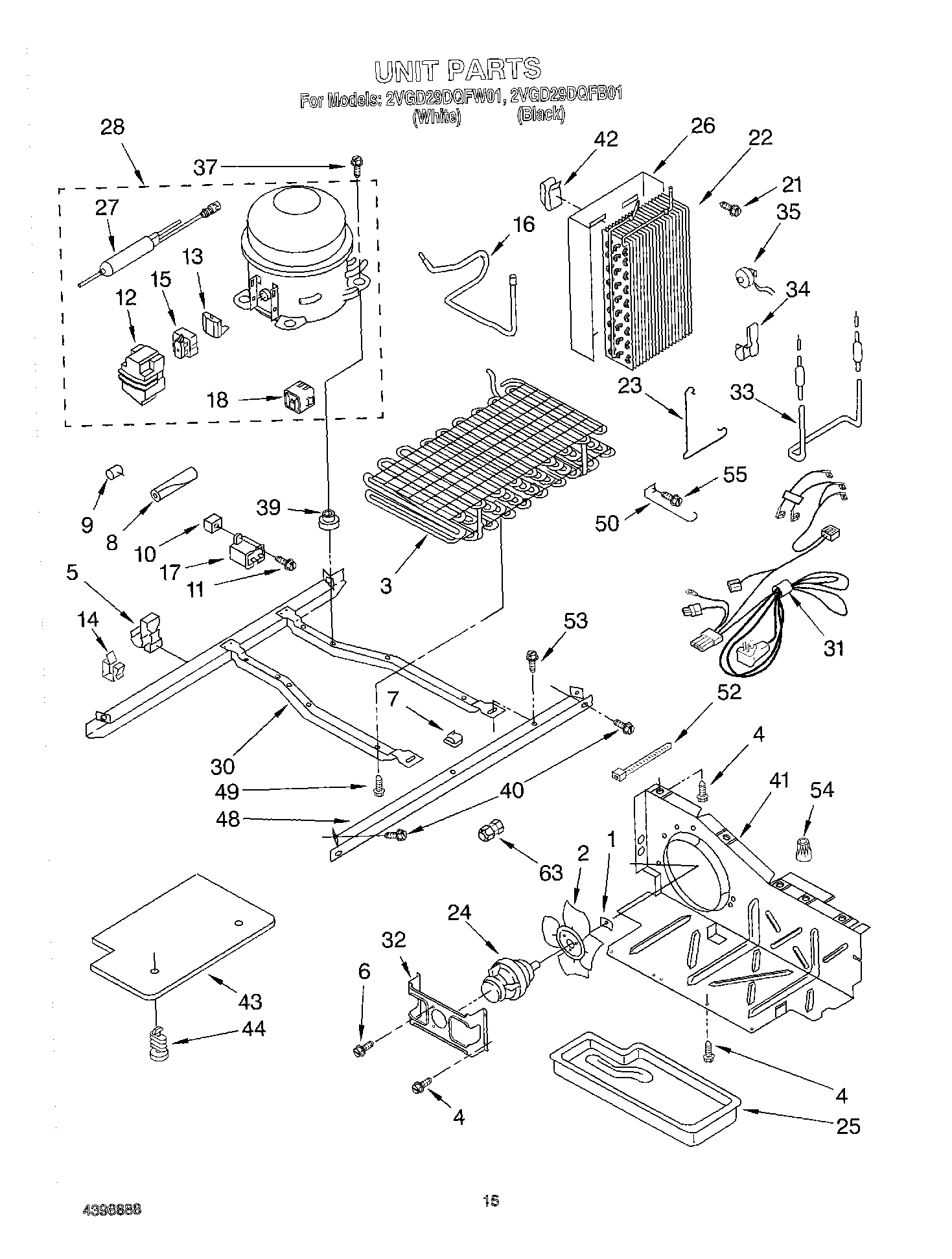

2VGD29DQFW01 09 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6681390 Whirlpool Refrigerator Screw
7Clip, Tube (3)
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
10Screw Grommet
11W11693756 Whirlpool Screw Assembly
12WP2162358 Whirlpool Refrigerator Terminal Cover
132176790 Whirlpool Refrigerator Overload
14W10169512 Whirlpool Clip
15WP2262184 Whirlpool Refrigerator Start Relay
16WP2205765 Whirlpool Refrigerator Tube
17WP2201147 Whirlpool Refrigerator Capacitor
18Start-Device, Combination (Start Relay and Overload) For Production Compressor Only)
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
248201703 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28W10309997 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
302304904 Whirlpool Frame Assembly
31Unit, Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WPW10123653 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37SCREW
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49Screw, 8 x 3/8
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WPW10141625 Whirlpool Refrigerator Screw Assembly
63VALVE, ACCESS (5/8“)
63VALVE, ACCESS (1/2“)
63WP978025 Whirlpool Refrigerator Valve
63WP4318044 Whirlpool Refrigerator Connector
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
