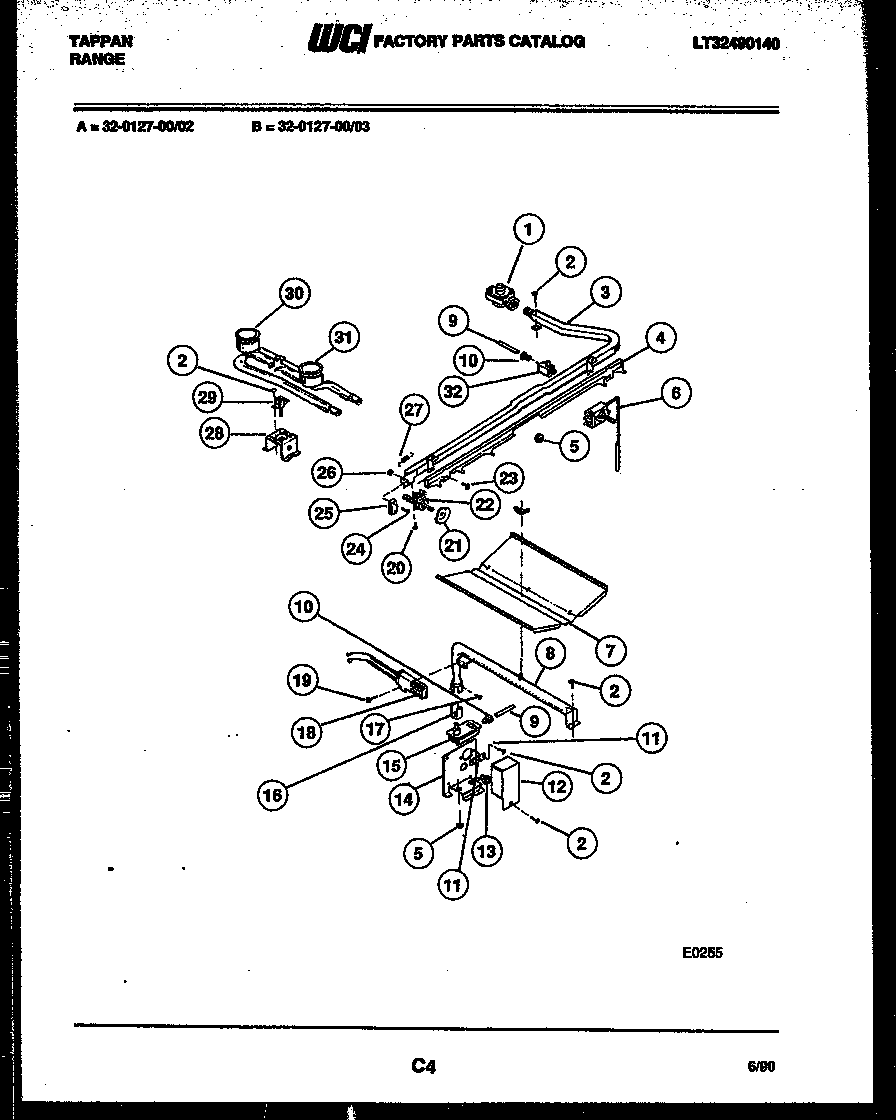

30-0127-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
3WCI 3131081
4SLIDE BAR
55303013272 Frigidaire Oven Nut
6WCI 5308013926
7BAFFLE-OVEN BURNER
8WCI 5303202752
9TUBE-OVEN FEED
10LOCK NUT
11TERMINAL BLOCK
12COVER – OVEN SAFETY VALVE
13SNAP – BUSHING
14SUPPORT-OVEN SAFETY VALVE
15WCI 5308009419
16MIXER-AIR
17WCI 3131065
185303935066 Frigidaire Oven Flat Igniter 17" Leads
19SCREW, 10 X 3/8
20BOLT VALVE MOUNTING
21CAM-VALVE
22WCI 5303131057
23BOLT-SHOULDER (2)
24WCI 3131093
25WCI 5303131094
26FASTENER, SWITCH
27SPRING – SLIDE BAR
28WCI 3203964
29IGNITER-TOP BURNER 36“
30Burner,top ,rear
31BURNER-TOP FRONT
32WCI 5303131099
