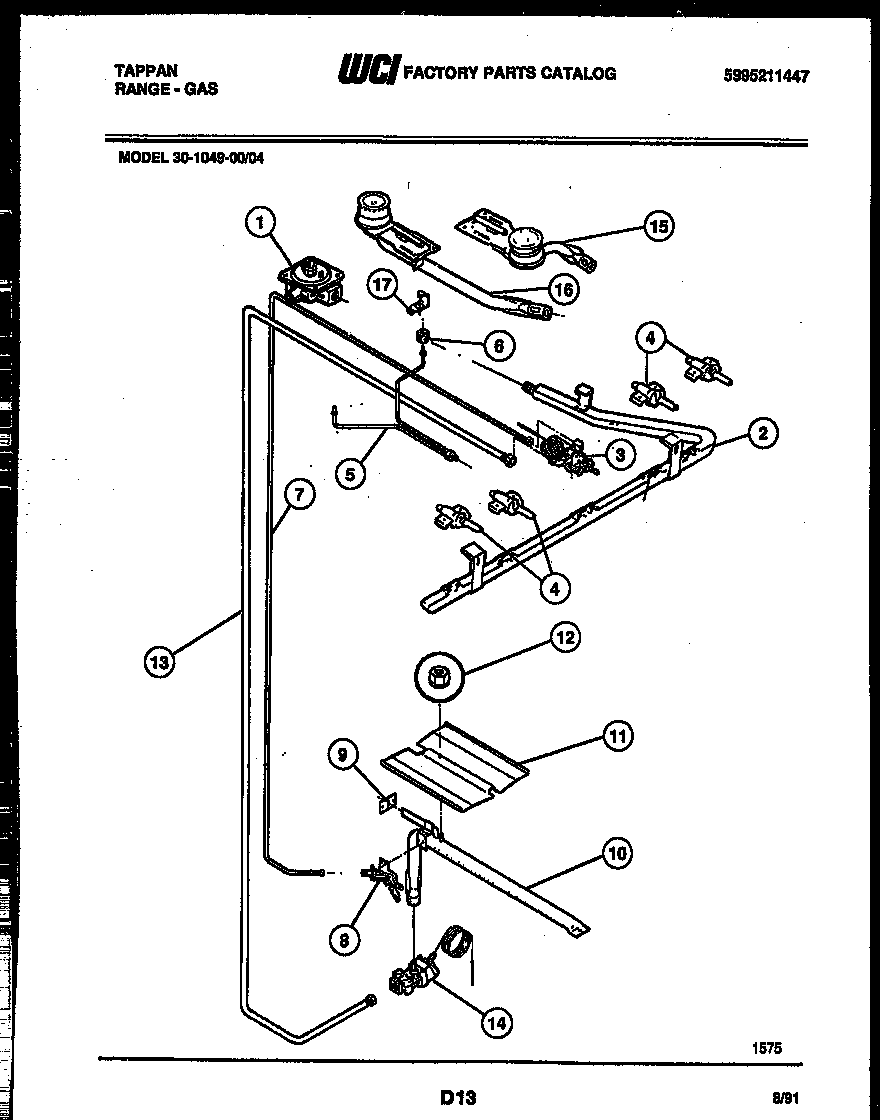

30-1049-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

30-1049-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-1049-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303016997
2WCI 3204972
3WCI 3204974
4WCI 3202796
4ABOLT VALVE MTG
5TUBING-TOP PILOT, DUAL
6CAP-TOP PILOT, (2)
7Tubing`thermo/pilot `3/16 ,alum
8WCI 3203395
9WCI 3018603
10WCI 3203391
11WCI 3203265
125303013272 Frigidaire Oven Nut
13TUBE – ALUM THERMO./SAFETY W/ FIT.
14WCI 3204583
155304506427 Frigidaire Oven Range Surface Burner (White)
165304506426 Frigidaire Oven Top Rear Burner
17SHIELD-PILOT, STAINLESS STEEL, (2)
