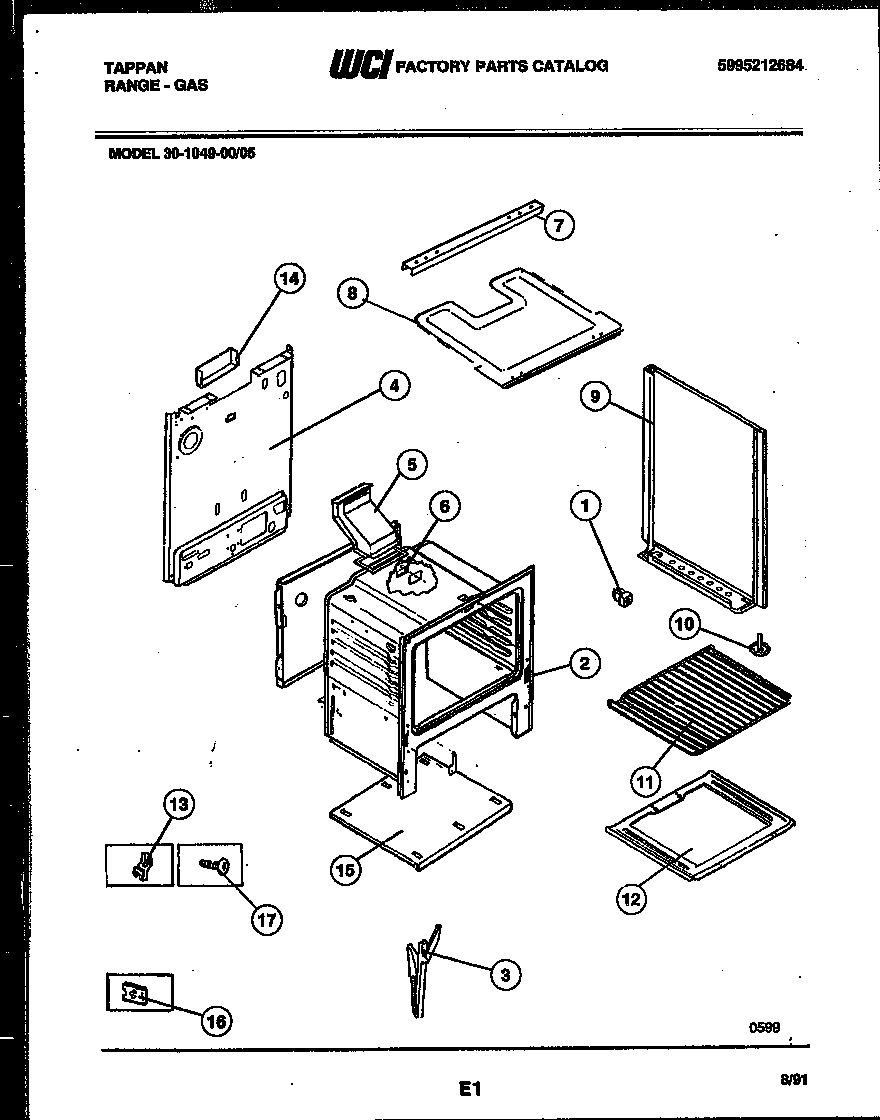

30-1049-00-05 07 – BODY PARTS

Products

Position	Product
*59500	COVER-IGNITOR
*59500	ANTI-TIP KIT (NOT ILLUSTRATED)
*59500	SHIELD-FLUE, (NON-ILLUSTRATED)
*59500	COVER-OVEN FRONT
*59500	3051218 Frigidaire Oven Plate
1	SPACER-BODYSIDE, (8)
3	WCI 316007002
4	WCI 3203082
5	316204402 Frigidaire Oven Flue
6	316542102 Frigidaire Flue Gasket
7	WCI 3203394
8	BURNER BOX BOTTOM
9	PNL-B/S-RH-WHITE
9A	PNL-B/S-LH-WHITE
10	SCREW-LEVELING
11	316067902 Frigidaire Oven Rack
12B	INSUL - OVEN BACK (NON-ILLUSTRATED)
12	BTTM-OVEN
12A	INSULATION, OVEN WRAPPER
13	WCI 5303280586
14	COVER-VENT
14A	316064600 Frigidaire Oven Support
15	WCI 5303270160
16	3203010 Frigidaire Clip
17	316282700 Frigidaire Oven Screw
