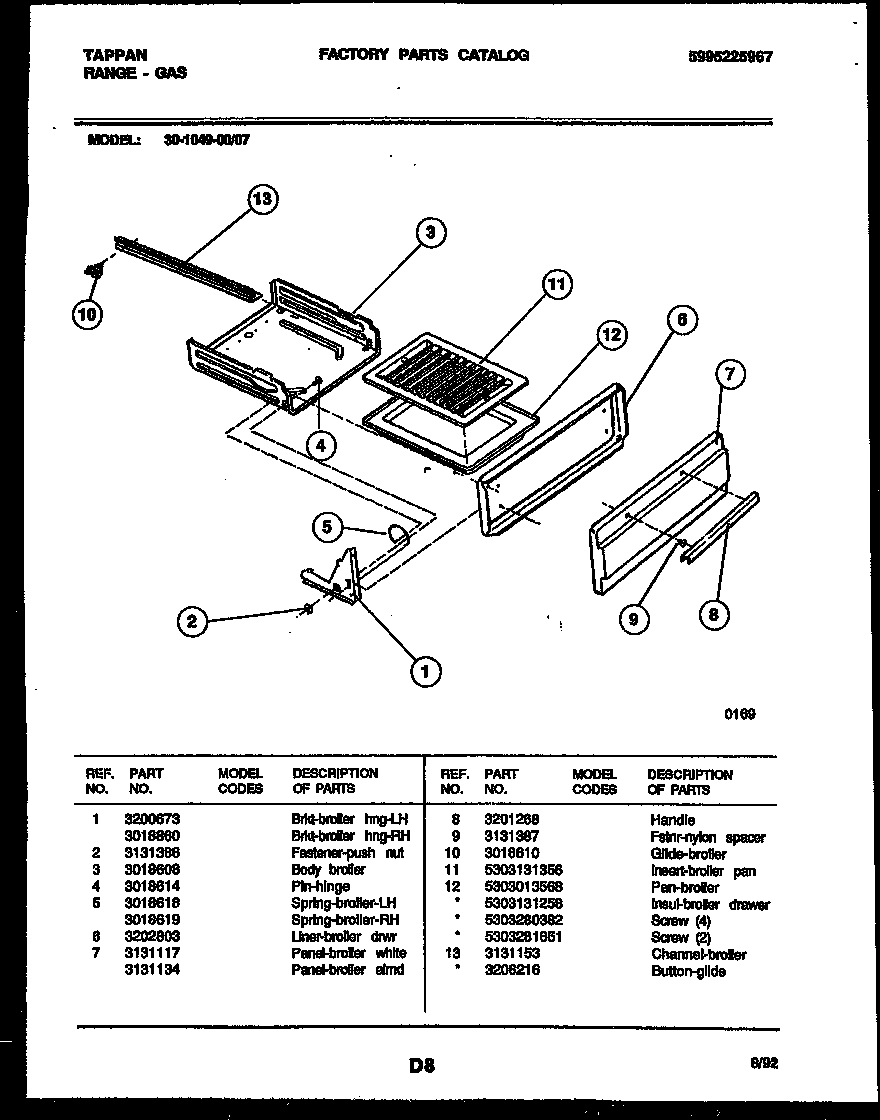

30-1049-23-07 04 – BROILER DRAWER PARTS

30-1049-23-07 04 – BROILER DRAWER PARTS

Written by

in

30-1049-23-07 04 – BROILER DRAWER PARTS

Products

PositionProduct
*75090WCI 3206216
1AWCI 3018860
1WCI 3200673
2WCI 3131386
3DRAWER-BROILER
4PIN, HINGE (2)
5WCI 3018618`
5ASPRING-BROILER, RH
6WCI 3202803
7PANEL – BROILER ALMD
8HANDLE-DRAWER, BRUSHED CHROME
9FSTNR, SPACER (2)
10GLIDE-DRAWER, REAR
11WCI 5303131356
12PAN-BROILER
12AINSULATION, BROILER DRAWER
12B5303300265 Frigidaire Oven Screw
12BSCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
13WCI 3131153
