30-1049-23-07 06 – BURNER, MANIFOLD AND GAS CONTROL

30-1049-23-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-1049-23-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

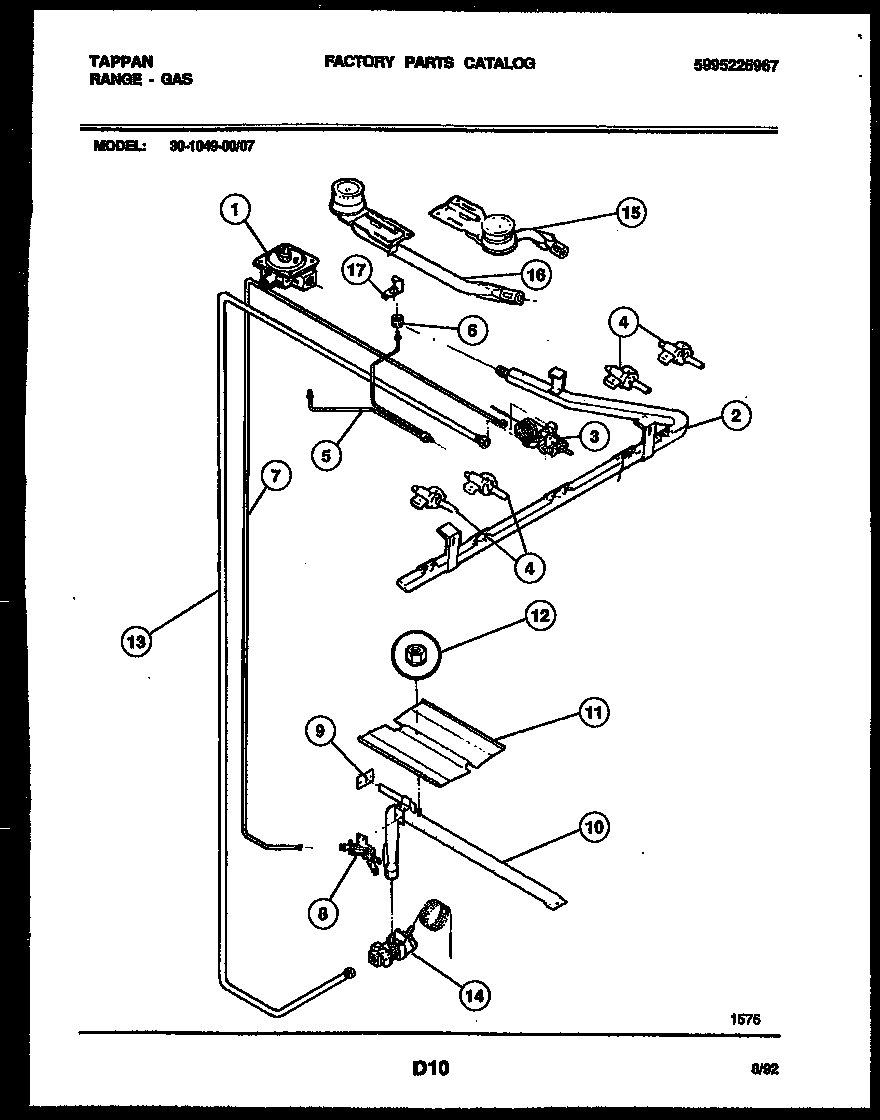

PositionProduct
*75144SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
1WCI 5303016997
2WCI 5303280588
3WCI 316052000
4VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
5TUBING-TOP PILOT, DUAL
6CAP-TOP PILOT, (2)
7Tubing`thermo/pilot `3/16 ,alum
8WCI 5303280589
9WCI 3018603
10WCI 5303280585
11WCI 3203265
125303013272 Frigidaire Oven Nut
13TUBE – ALUM THERMO/SAFETY W/ FIT
14WCI 5303280593
155304506427 Frigidaire Oven Range Surface Burner (White)
165304506426 Frigidaire Oven Top Rear Burner
17SHIELD-PILOT, STAINLESS STEEL, (2)
