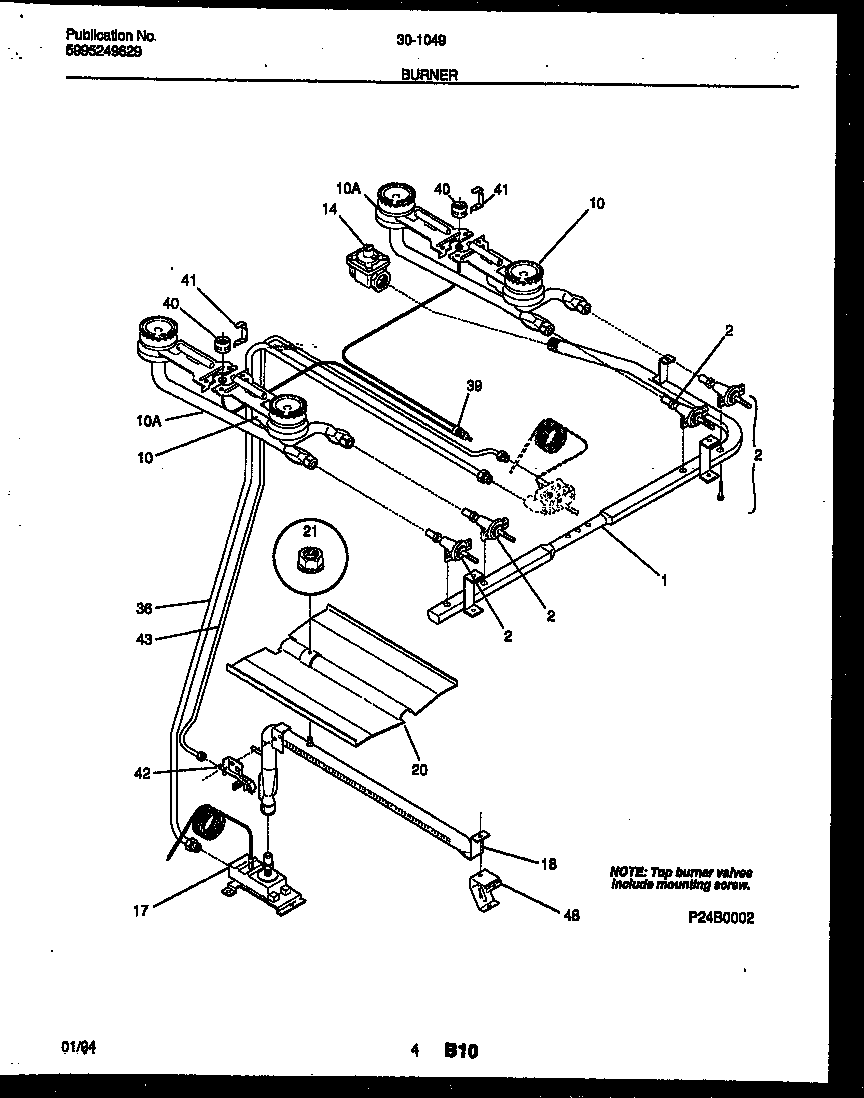

30-1049-23-11 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303280588
2	VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
10A	5304506426 Frigidaire Oven Top Rear Burner
10	5304506427 Frigidaire Oven Range Surface Burner (White)
14	WCI 5303016997
17	WCI 5303280593
18	WCI 5303280585
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
36	WCI 316060800
39	TUBING-TOP PILOT, DUAL
40	CAP-TOP PILOT, (2)
41	SHIELD-PILOT, STAINLESS STEEL, (2)
42	WCI 5303280589
43	Tubing`thermo/pilot `3/16 ,alum
48	WCI 3018603
