30-1149-00-05 07 – BODY PARTS

30-1149-00-05 07 – BODY PARTS

Written by

in

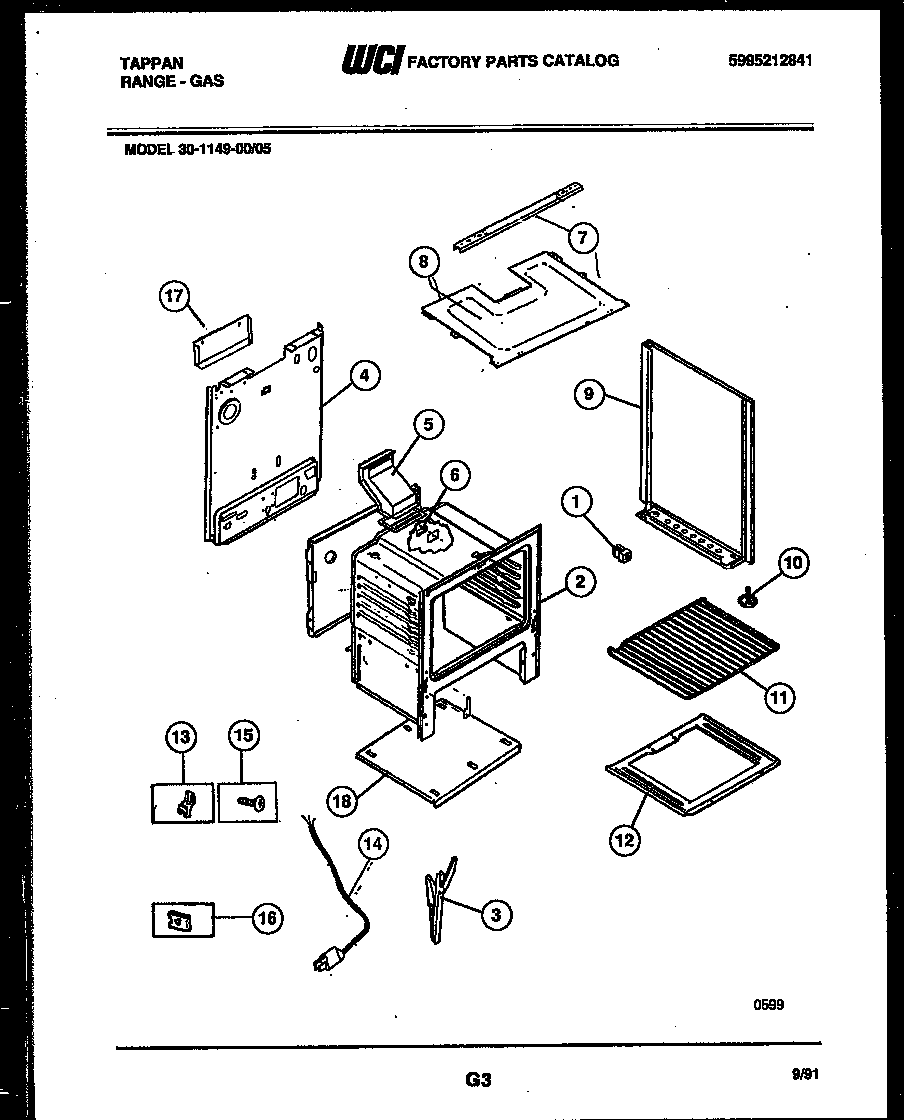

30-1149-00-05 07 – BODY PARTS

Products

PositionProduct
*59787SHIELD-FLUE, (NON-ILLUSTRATED)
*59787ANTI-TIP KIT (NOT ILLUSTRATED)
*59787COVER-IGNITOR
*59787WCI 3131660
*59787WCI 08067961
*59787COVER-POWER CORD, (NON-ILLUSTRATED)
*59787COVER-OVEN FRONT
*597873051218 Frigidaire Oven Plate
*59787316064600 Frigidaire Oven Support
*59787DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3WCI 316007002
4WCI 3203082
5316204402 Frigidaire Oven Flue
6316542102 Frigidaire Flue Gasket
7CHANNEL-BURNER BOX
8BURNER BOX BOTTOM
9APNL-B/S-LH-WHITE
9PNL-B/S-RH-WHITE
10SCREW-LEVELING
11316067902 Frigidaire Oven Rack
12BTTM-OVEN
12AINSULATION, OVEN WRAPPER
12BINSUL – OVEN BACK (NON-ILLUSTRATED)
13WCI 08010556
145304515659 Frigidaire Oven Power Cord
15316282700 Frigidaire Oven Screw
163203010 Frigidaire Clip
17COVER-VENT
18WCI 5303270160
