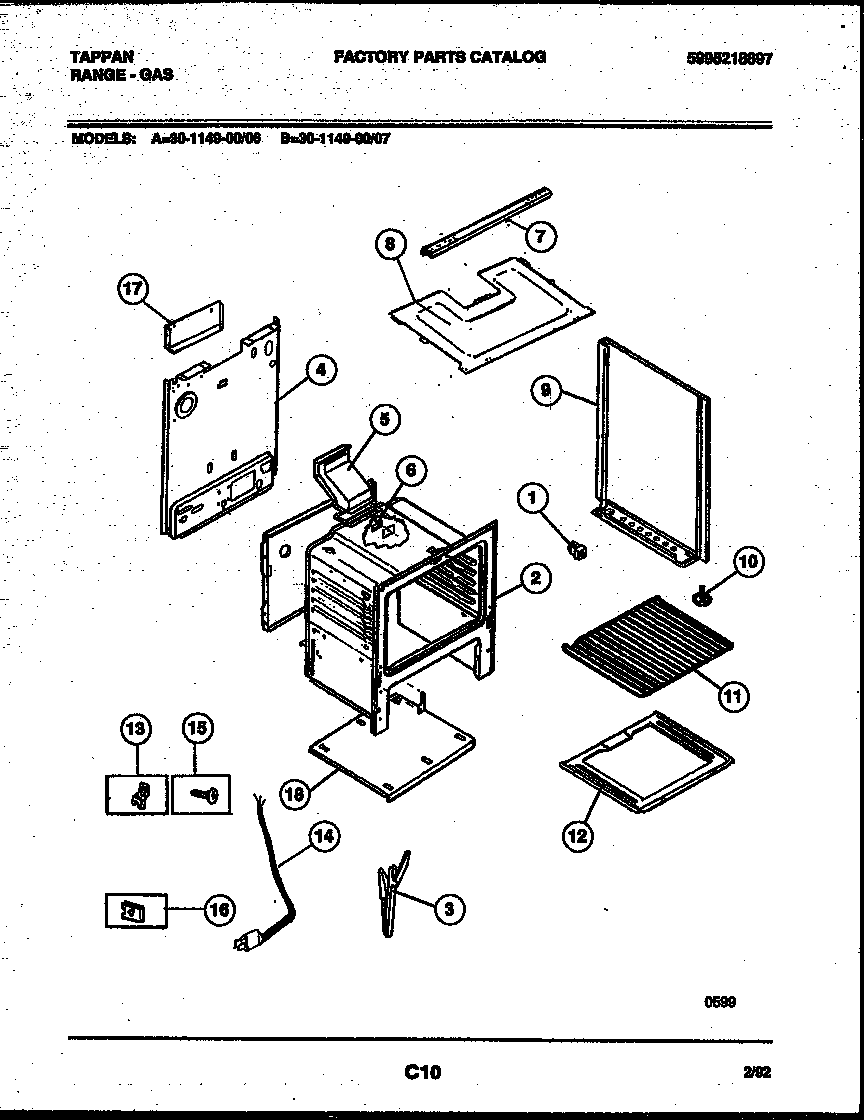

30-1149-00-07 07 – BODY PARTS

Products

Position	Product
*61892	SHIELD-FLUE, (NON-ILLUSTRATED)
*61893	WCI 08010570
*61892	ANTI-TIP KIT (NOT ILLUSTRATED)
*61892	COVER-POWER CORD, (NON-ILLUSTRATED)
*61892	COVER-IGNITOR
*61892	WCI 3131660
*61892	WCI 08067961
*61892	COVER-OVEN FRONT
*61892	3051218 Frigidaire Oven Plate
*61892	DIAGRAM, WIRING (NOT FOR PURCHASE)
*61892	316064600 Frigidaire Oven Support
1	SPACER-BODYSIDE, (8)
3	Hinge,oven door ,(2)
4	WCI 3203082
5	316204402 Frigidaire Oven Flue
6	316542102 Frigidaire Flue Gasket
7	CHANNEL-BURNER BOX
8	BURNER BOX BOTTOM
9A	PNL-B/S-LH-WHITE
9	PNL-B/S-RH-WHITE
10	SCREW-LEVELING
11	316067902 Frigidaire Oven Rack
12A	INSULATION, OVEN WRAPPER
12B	INSUL – OVEN BACK (NON-ILLUSTRATED)
12	BTTM-OVEN
13	WCI 08010556
14	5304515659 Frigidaire Oven Power Cord
15	316282700 Frigidaire Oven Screw
16	3203010 Frigidaire Clip
17	COVER-VENT
18	WCI 5303270160
