30-1149-23-01 07 – BODY PARTS

30-1149-23-01 07 – BODY PARTS

Written by

in

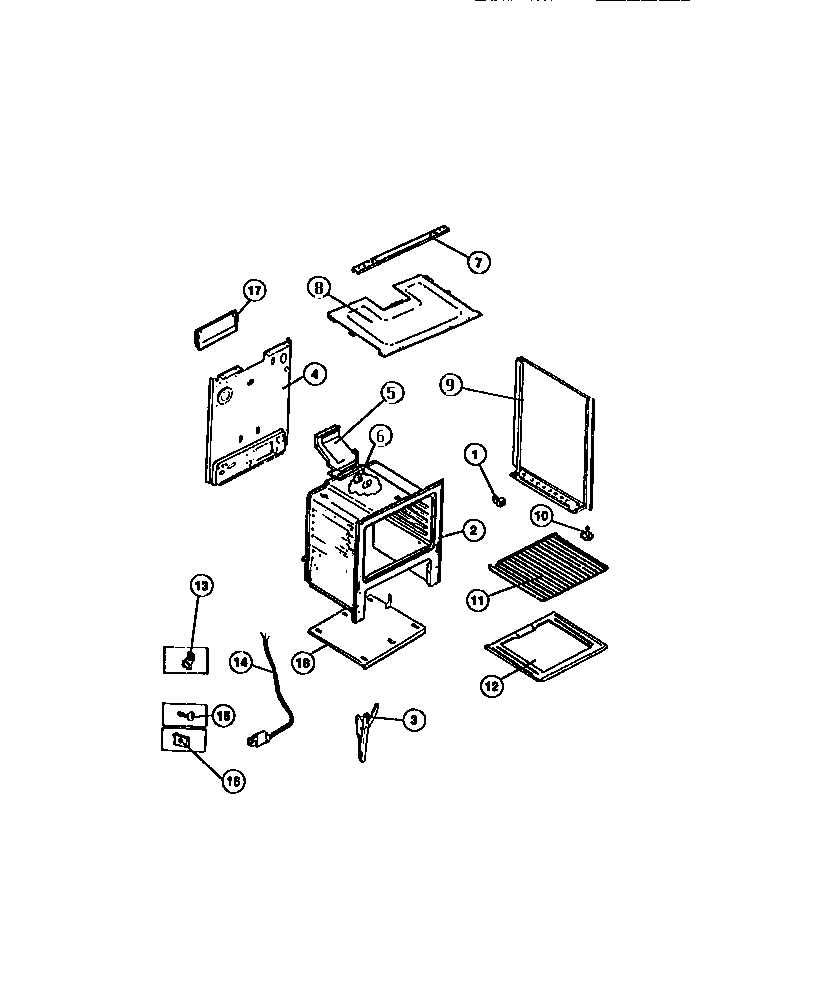

30-1149-23-01 07 – BODY PARTS

Products

PositionProduct
*31704SHIELD-FLUE, (NON-ILLUSTRATED)
*31703ANTI-TIP KIT (NOT ILLUSTRATED)
*31704WCI 3131660
*31703FSTNR PWR CORD (2) (NON-ILLUSTRATED)
*31703COVER-BURNER BOX
*31703COVER-POWER CORD, (NON-ILLUSTRATED)
*317033051218 Frigidaire Oven Plate
*31703316064600 Frigidaire Oven Support
*31703COVER-IGNITOR
1SPACER-BODYSIDE, (8)
3CHANL-DR HNG (2)
4WCI 3203082
5316204402 Frigidaire Oven Flue
6316542102 Frigidaire Flue Gasket
7CHANNEL-BURNER BOX
8BURNER BOX BOTTOM
9PNL B/S-LH (ALMOND)
9APNL B/S-RH (ALMOND)
10SCREW-LEVELING
11316067902 Frigidaire Oven Rack
12BINSUL – OVEN BACK (NON-ILLUSTRATED)
12BTTM-OVEN
12AINSULATION, OVEN WRAPPER
135303284616 Frigidaire Range Bulb Clip Thermostat
145304515659 Frigidaire Oven Power Cord
15316282700 Frigidaire Oven Screw
163203010 Frigidaire Clip
17COVER-VENT
18WCI 3131180
