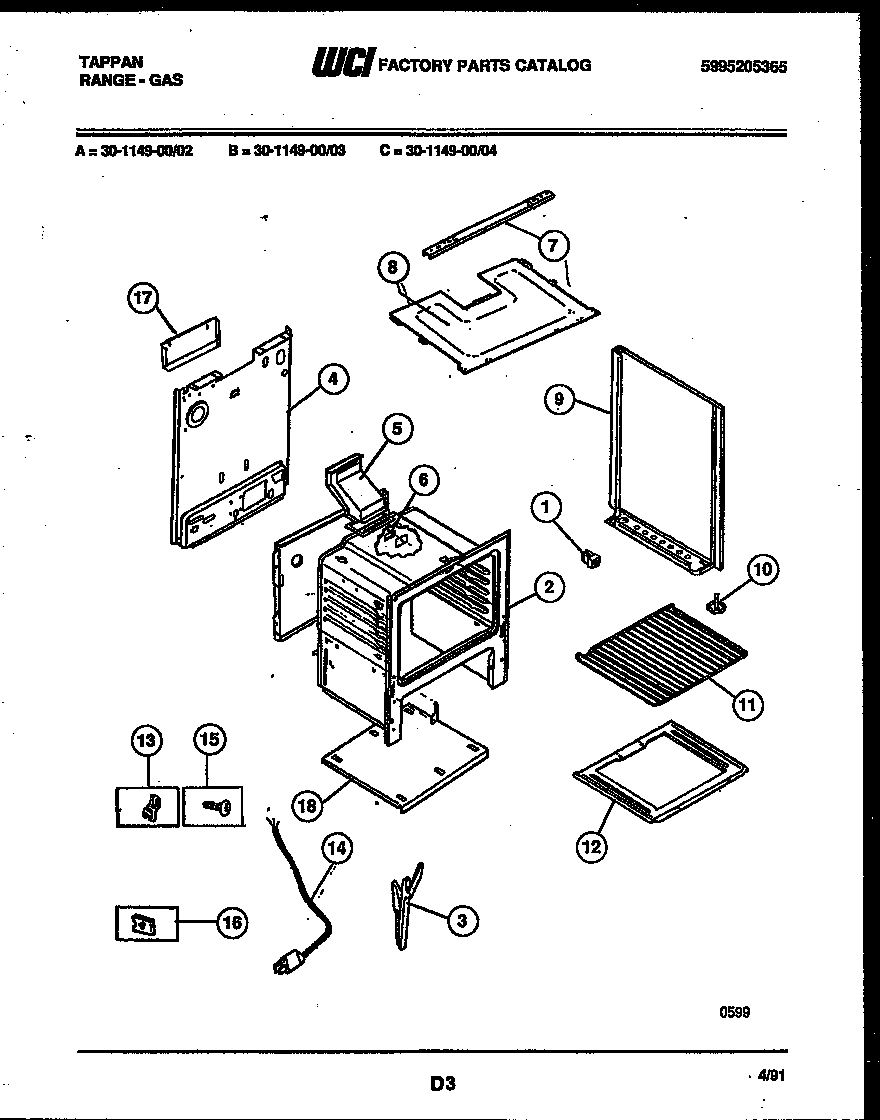

30-1149-23-04 07 – BODY PARTS

30-1149-23-04 07 – BODY PARTS

Written by

in

30-1149-23-04 07 – BODY PARTS

Products

PositionProduct
*49009SHIELD-FLUE, (NON-ILLUSTRATED)
*49009ANTI-TIP KIT (NOT ILLUSTRATED)
*49008COVER-POWER CORD, (NON-ILLUSTRATED)
*49008COVER-IGNITOR
*49009WCI 3131660
*49008WCI 08067961
*49008COVER-OVEN FRONT
*490083051218 Frigidaire Oven Plate
*49009DIAGRAM, WIRING (NOT FOR PURCHASE)
*49008316064600 Frigidaire Oven Support
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203082
5316204402 Frigidaire Oven Flue
6316542102 Frigidaire Flue Gasket
7CHANNEL-BURNER BOX
8BURNER BOX BOTTOM
9WCI 5303269543
9AWCI 5303269545
10SCREW-LEVELING
11316067902 Frigidaire Oven Rack
12AINSULATION, OVEN WRAPPER
12BTTM-OVEN
12BINSUL – OVEN BACK (NON-ILLUSTRATED)
13WCI 08010556
145304515659 Frigidaire Oven Power Cord
15316282700 Frigidaire Oven Screw
163203010 Frigidaire Clip
17COVER-VENT
18WCI 5303270160
