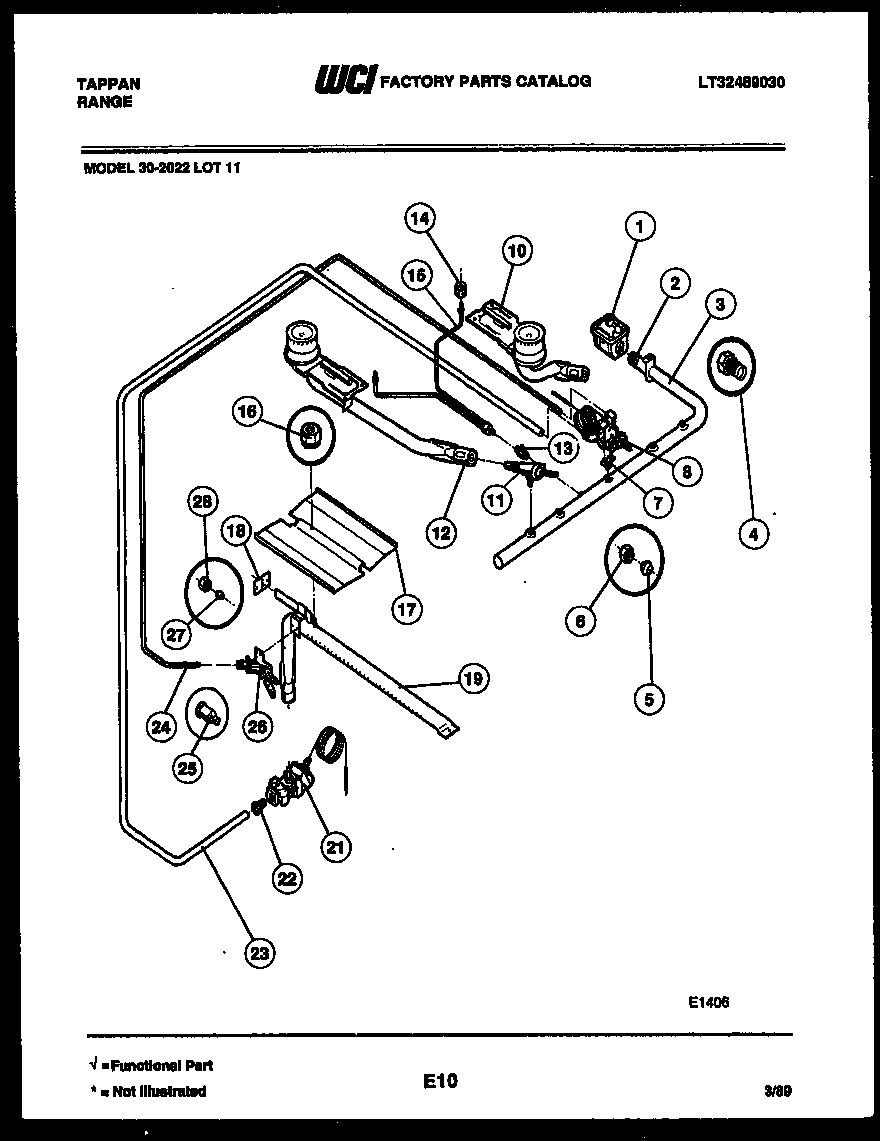

30-2022-00-11 05 – BURNER PARTS

Products

Position	Product
1	CONTRL-PRESSURE REGULATOR
2	WCI 008T276F05-18
3	WCI 439T046P04
4	LOXIT NUT-THERMO PILOT TUBE 3/16“ LOT 2-11
5	FERRULE 3/8“
6	COMPRESSION NUT 3/8“
7	WCI 003T039P01
8	THERMO-OVN (LOT 11, 12)
10	WCI 080T015P01
11	VALVE-TP BURNER (4)
12	BURNERS-TOP-REAR (2)
13	WCI 244T039P01
14	WCI 124T010P01
15	TUBE-DUAL HARNESS TOP PILOT
16	5303013272 Frigidaire Oven Nut
17	BAFFLE-OVN BURNER
18	WCI 554T327P02
19	WCI 079T025P01
21	VALVE-OVN SAFETY
22	LOXIT FITTING-SAFETY VALVE 3/8“ (5/8-18 THD)
23	TUBE-OVN GAS SUPLY 3/8 X 55“
24	TUBE-OVN PILOT SAFETY 3/16 X 48 1/2 LOT 1-5, 8-10
25	ORIFICE-PILOT .014 7 NAT. 11“ LP
26	WCI 549T023P01
27	FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
28	COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUBE 3/16“ (2)
