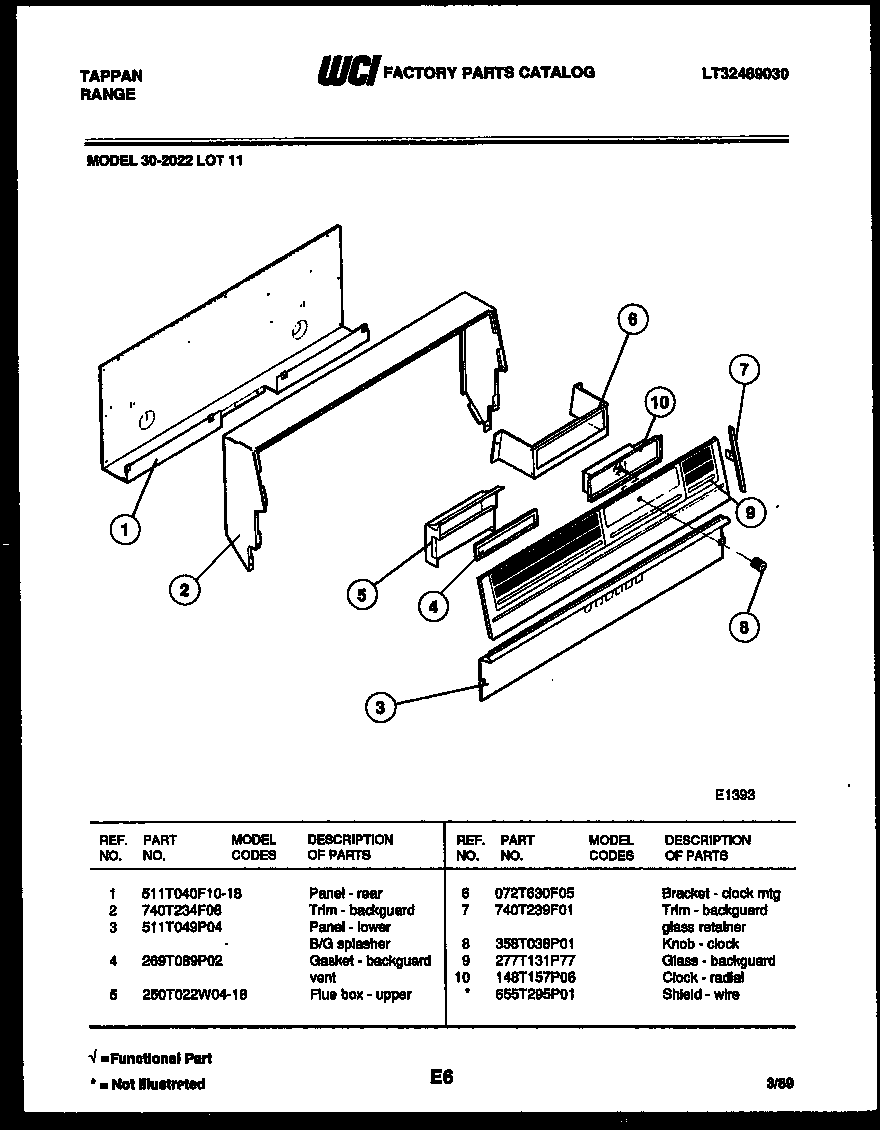

30-2022-57-11 02 – BACKGUARD

30-2022-57-11 02 – BACKGUARD

Written by

in

30-2022-57-11 02 – BACKGUARD

Products

PositionProduct
*20830WCI 655T295P01
1WCI 511T040F10-18
2TRIM, BKGRD FRAME
3PNL-LWR B/G SPLASHER-LOT 3, 4
4GASKET-BACKGRD VENT
5WCI 250T022W04-18
6WCI 072T630F05
7TRIM, RETAINER GLASS END (2)
8WCI 358T038P01
9GLASS-BACKGRD
10CLOCK-RADIAL W/ 4 HR TIMER-LOT 3, 4
