30-2022-66-11 07 – BROILER DRAWER PARTS

30-2022-66-11 07 – BROILER DRAWER PARTS

Written by

in

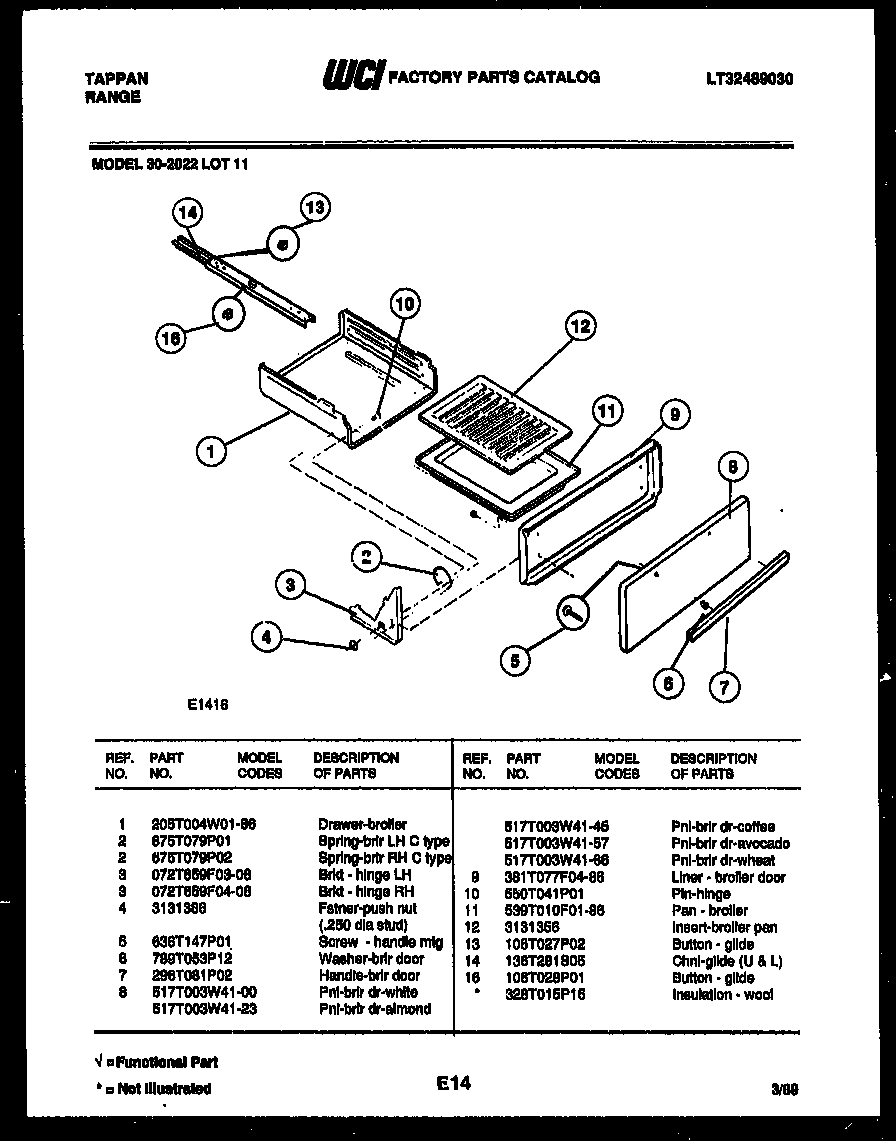

30-2022-66-11 07 – BROILER DRAWER PARTS

Products

PositionProduct
*20839INSULATION
1BODY, BROILER
2SPRING-BROILR LH C-TYPE
2SPRING-BROILR RH C-TYPE
3WCI 072T659F04-08
3WCI 072T659F03-08
4WCI 3131386
55303292012 Frigidaire Oven Screw
6WASHER-HNDL SCREW
7HANDL-BROILR DOOR
8PANEL-BROILER DOOR-WHEAT
9LINER-BROILER DOOR LOT 2,3
10PIN, HINGE (2)
11PAN, BROILER
12WCI 3131356
13BUTTON-GLIDE 27/64“ D.
14CHANNEL-GLIDE-UPR LOT 2,3
16BUTTON-GUIDE
