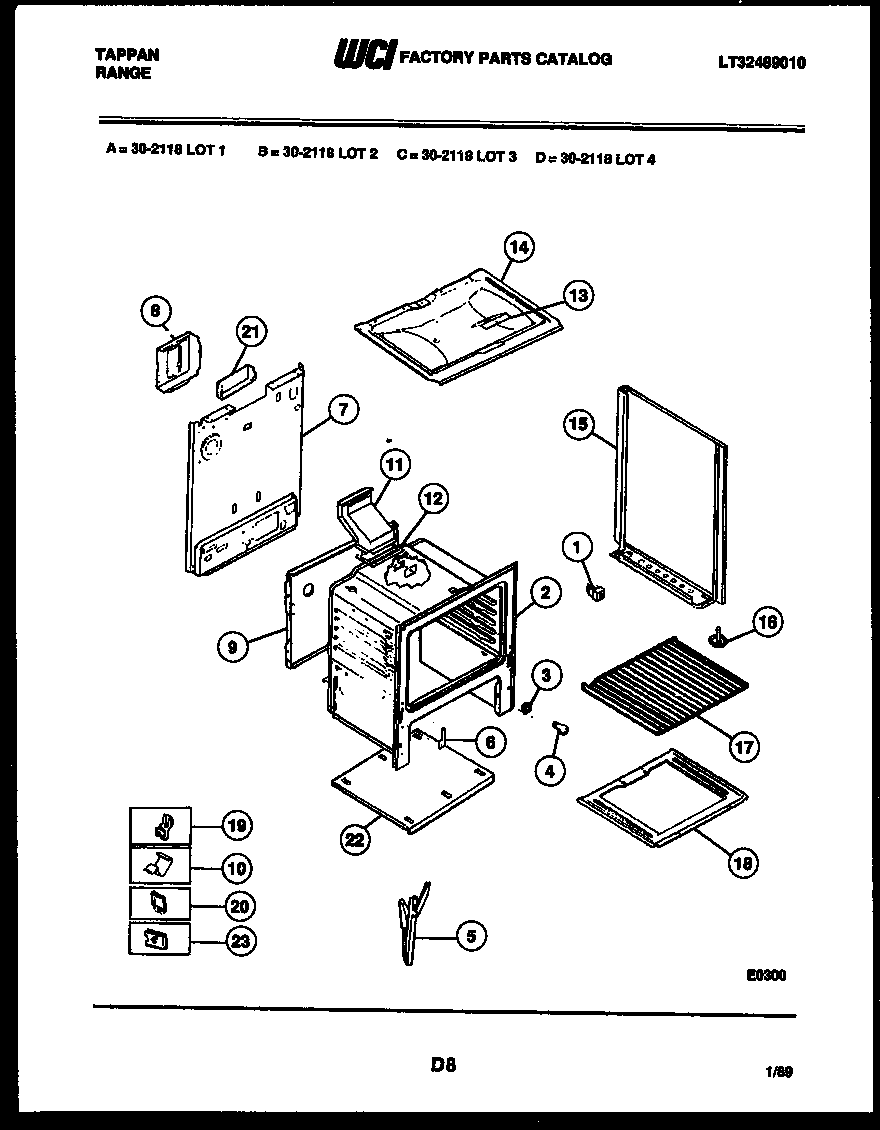

30-2118-23-03 07 – BODY PARTS

Products

Position	Product
*20654	316282700 Frigidaire Oven Screw
*20653	COVER FRNT MAIN (NON-ILLUSTRATED)
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6A	5304534000 Frigidaire Cord
6	WCI 3131570
7	WCI 3131567
8	WCI 665T421F02-18
9	SHIELD-BACKGUARD,REAR WALL
10	CLIP, WIRE
11	WCI 252T048W01-18
12	316542102 Frigidaire Flue Gasket
13	WCI 3131101
14	WCI 095T030F02-86
15	PNL B/S-LH (ALMOND)
15A	PNL B/S-RH (ALMOND)
16	WCI 636M004P01
17	316067902 Frigidaire Oven Rack
18A	WCI 3131201
18	WCI 058T036F02-86
18B	WCI 3131246
19A	FSTNR-POWER CORD (NON-ILLUSTRATED)
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21B	316064600 Frigidaire Oven Support
21A	3131903 Frigidaire Door/Drawer Bumper
21	WCI 3131348
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22	WCI 3131180
23	3203010 Frigidaire Clip
